OPERATION
HEATER/VENTILATION/AIR CONDITIONER
Operating manual T225 / T230 47
Heater/Ventilation/Air Conditioner
Controls

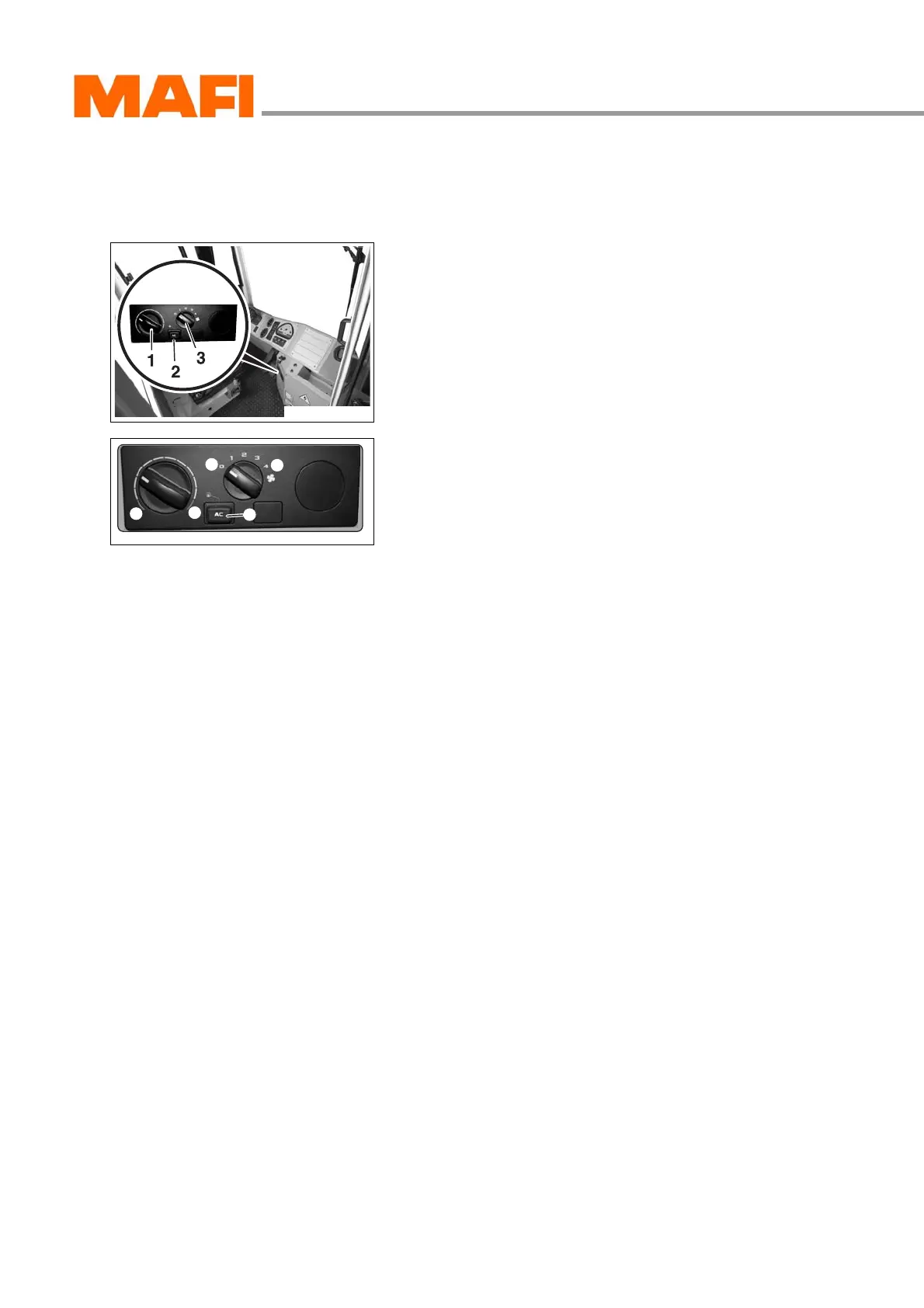

Fig. 27: Controls
1 Temperature rotary switch
2 “Air conditioner” on/off switch – optional
3 Blower switch (4-stage)
The controls for the heater, ventilation and the air conditioner
(optional) are installed between the footwell and the central
electric box.
Fig. 28: Operation
1 Heater “completely off”
2 Heating “on full”
3 Blower “off”
4 Maximum blower output
5 “Air conditioner” switch – optional
Set amount of ventilation
The amount of ventilation can be set to five speeds with
the blower switch.
X Turn the blower switch to the right 4.
Speed “4” = maximum blower output
X Turn the blower switch to the left 3.
Speed “0” = blower off
Air conditioner – optional
X Press the switch 5.
3 The air conditioner is switched on.
3 The green LED is lit.
X Press the switch 5.
3 The air conditioner is switched off.
3 The green LED goes out.
