MAFI Trac T230 - Combination Display Instrument

OPERATION
COMBINATION DISPLAY INSTRUMENT
Operating manual T225 / T230 69
Combination display instrument
Overview

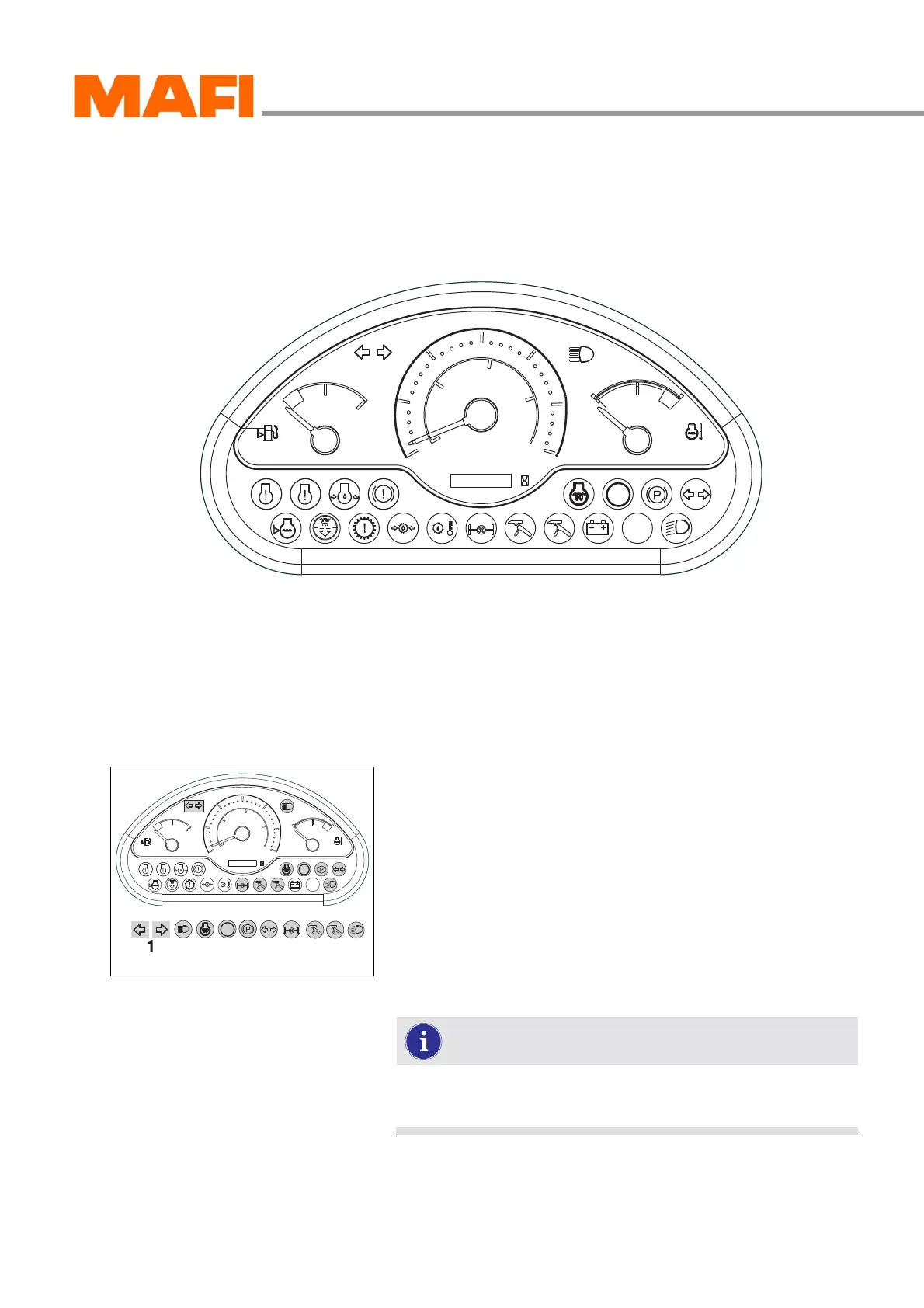

Fig. 57: Combination display instrument
The combination display instrument is located on the
instrument panel and displays control functions and warning
lights.
Control function indicators
Fig. 58: Control lights
1 Direction indicators MT
2 High beam
3 Preheating
4 Speed reduction
5 Parking brake
6 Trailer direction indicator
7 Rear axle differential
8 Fifth wheel coupling lock
9 Kingpin lock
10 Headlight
The control lights indicate the current state of certain controls.
The description of the control function indicators can
be found in connection with the controls.
