OPERATING PANEL FOR THE AUTOMATIC TRANSMISSION
Operating manual T225 / T230 61
Operating panel for the automatic
transmission
Overview
The setting of the driving direction, the selection of the driving
program and the reading of the oil level or the error code can
be done with the operating panel.

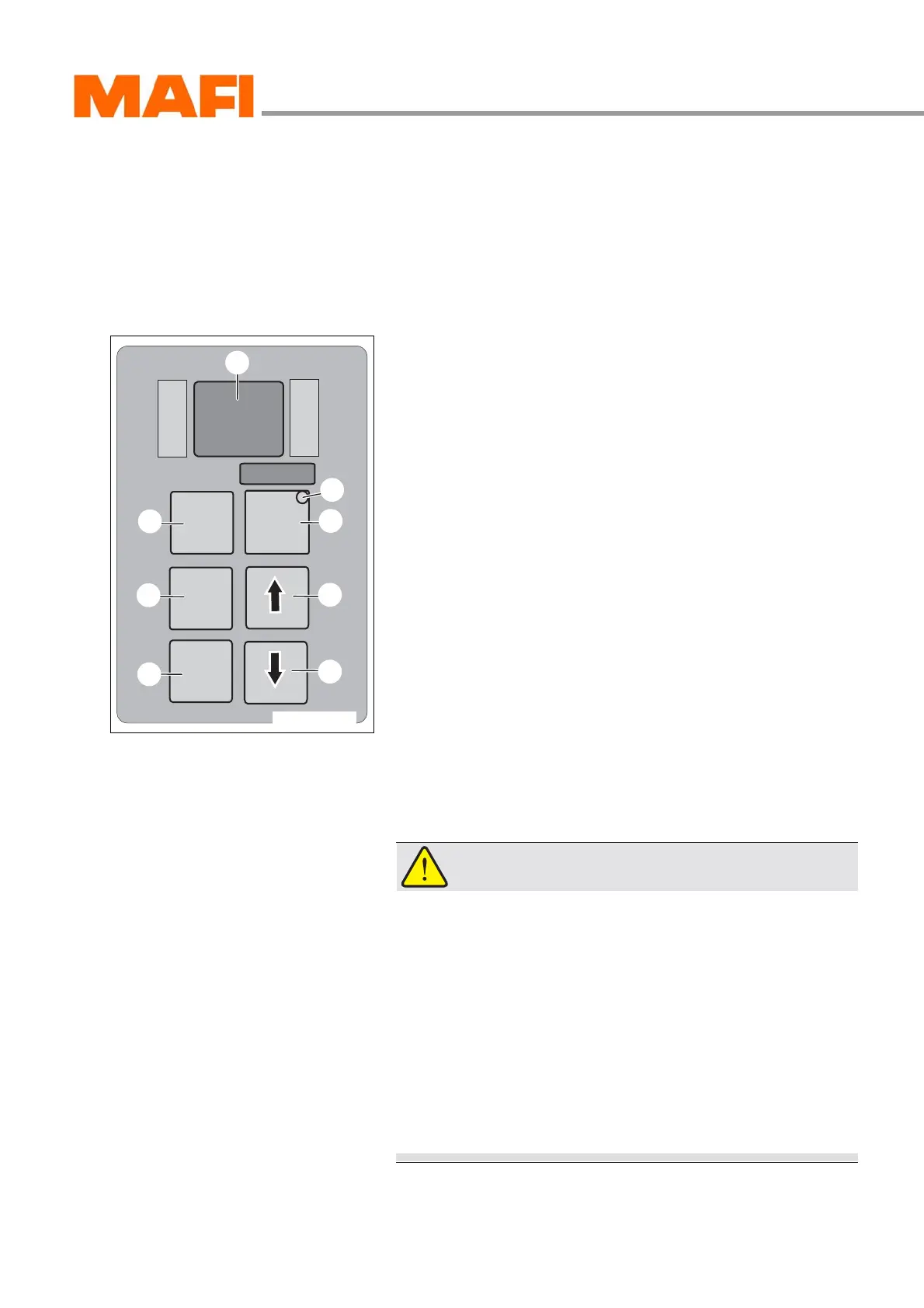

Fig. 48: Operating panel
1 Reverse
2 Neutral (idle)
3 Drive (normal operation)
4 Lower driving range
5 Higher driving range
6 Mode key for additional function
7 Mode-ON LED indicator
8 Indicator
Basic rules for operating the automatic transmission
Follow the safety instructions to avoid damage to property and
accidents with the MT.
CAUTION!
Material damage!
Operating errors can damage your MT.
X Apply the parking brake only when the Trac is at
standstill.
X Shift into neutral N only when the MT is standing and
the parking brake or main brake is applied.
X Change the driving direction forwards or reverse only
when the MT is standing still and the engine is at idle
speed.
X Always shift into neutral position N before switching
off the motor.
