119909-00

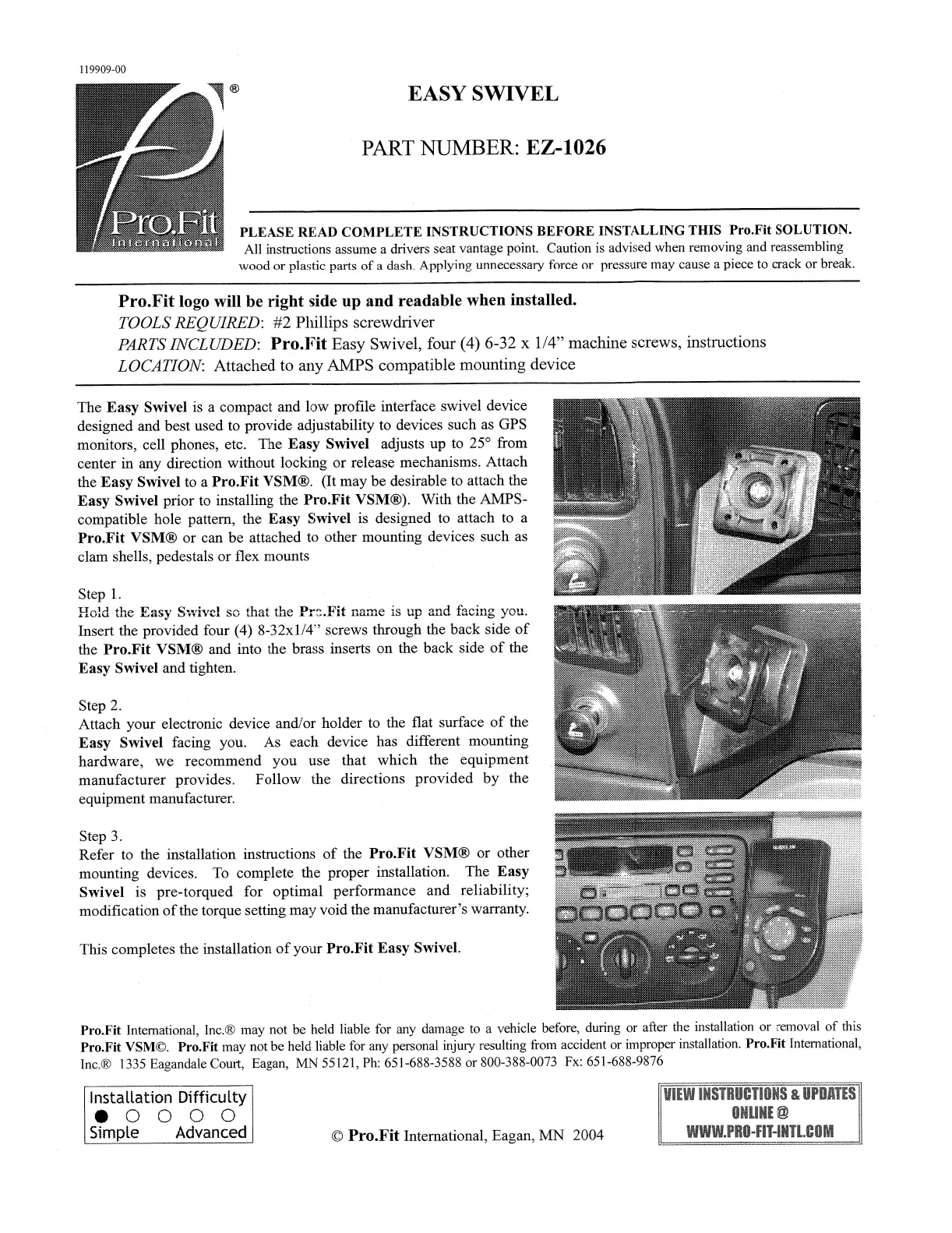

EASY SWIVEL
PART NUMBER: EZ-I026
PLEASE READ
COMPLETE
INSTRUCTIONS
BEFORE
INSTALLING THIS Pro.Fit SOLUTION.
All instructions
aSSUlne
a drivers seat vantage point. Caution is advised when removing and reasseinbling
wood or plastic parts
of
a dash. Applying unnecessary force or pressure Inay cause a piece to crack or break.
Pro.Fit
logo will
be
right
side up
and
readable
when
installed.
TOOLS REQUIRED: #2 Pllillips screwdriver
PARTS INCLUDED: Pro.]?it Easy Swivel, four (4)
6-32
x 1/4" machine screws, instructions
LOCATION: Attached to
allY
AMPS compatible mounting device
The
Easy
Swivel is a compact and low profile interface swivel device
designed and best used to provide adjustability to devices such as GPS
monitors, cell phones, etc. The
Easy
Swivel adjusts up to 25° from
center in any direction without locking
or
release mechanisms. Attach
the
Easy
Swivel to a
Pro.Fit
VSM®. (It
may
be
desirable to attach the
Easy
Swivel prior to installing the
Pro.Fit
VSM®). With the AMPS-
compatible hole pattern, the
Easy
Swivel is designed to attach to a
Pro.Fit
VSM®
or can
be
attached to other mounting devices such as
clam shells, pedestals
or
flex mounts
Step
1.
Hold·the
Easy
S,~ivel
so that the
Pr.~.Fit
name is up and facing you.
Insert the provided four (4)
8-32xI/4~'
screws through the back side
of
the
Pro.Fit
VSM®
and into the brass inserts on the back side
of
the
Easy
Swivel and tighten.
Step 2.
Attach your electronic device and/or holder to the flat surface
of
the
Easy
Swivel facing you. As each device has different mounting
hardware,
we
recommend
you
use that
which
the equipment
manufacturer provides.
Follow
the directions
provided
by
the
equipment manufacturer.
Step 3.
Refer to the installation instructions
of
the
Pro.Fit
VSM®
or other
mounting devices.
To
complete the proper installation. The
Easy
Swivel is pre-torqued for optimal performance and reliability;
modification
of
the torque setting may void the manufacturer's warranty.
This completes the installation
of
your
Pro.Fit
Easy
Swivel.
Pro.Fit International, Inc.® Inay not be held liable for any dmnage
to
a vehicle before, during or after the installation or reinoval
of
this
Pro.Fit VSM©. Pro.Fit Inay not
be
held liable for any personal injury resulting froin accident or iInproper installation. Pro.Fit International,
Inc.® 1335 Eagandale Court, Eagan, MN 55121,
Ph:
651-688-3588 or 800-388-0073
Fx:
651-688-9876
Installation Difficulty
e 0 0 0 0
Simple Advanced
©
Pro.Fit
International, Eagan,
MN
2004
