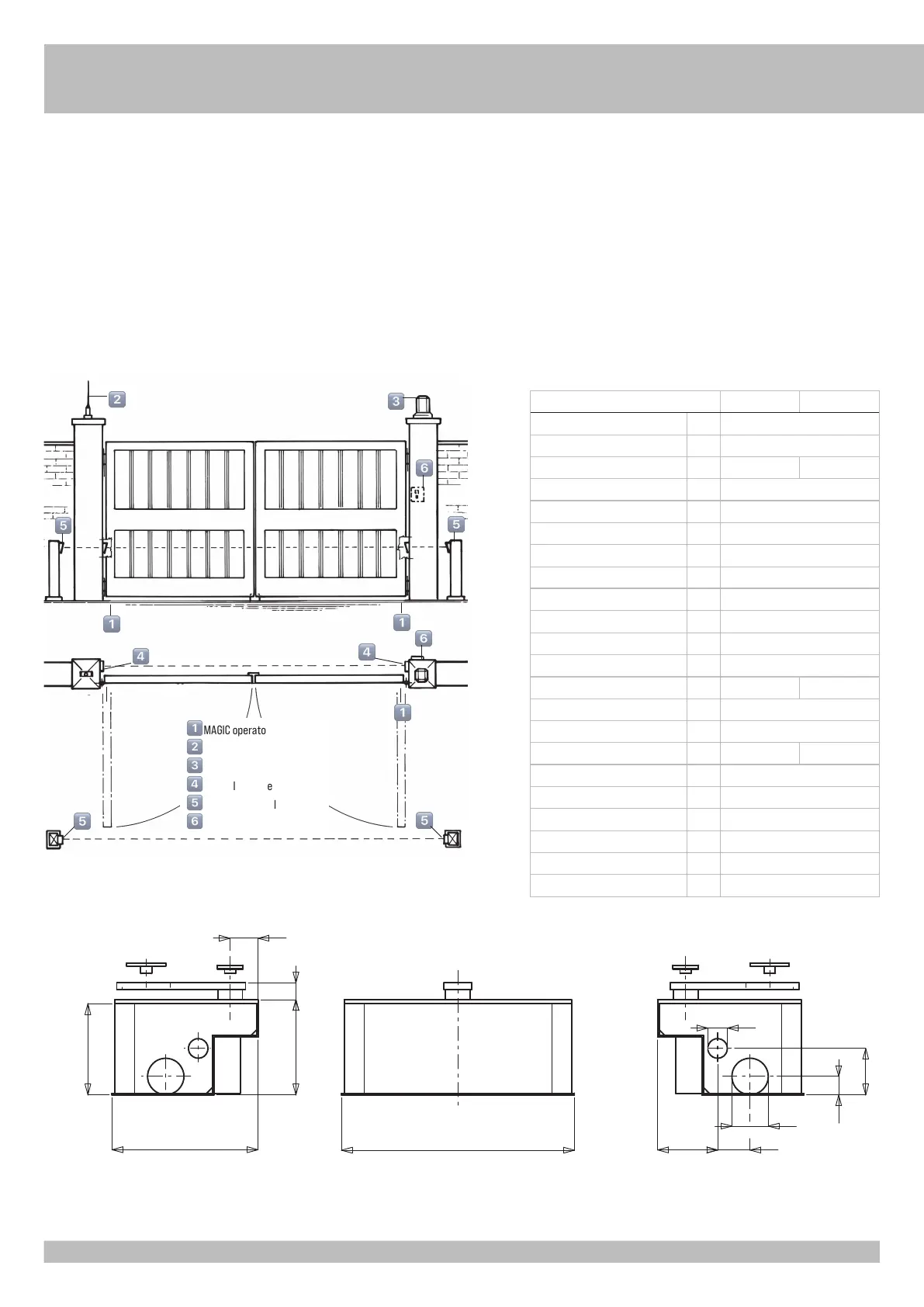

SYSTEM LAY-OUT
TECHNICAL FEATURES
MAGIC is a reversible operator with a mechanical cluth to adjust the force of the motor ad its
reversibility (more force you set, less reversible it is).
The operator comes complete with a mechanical limit switch group, a transmission lever, and
a trafficable cover.
MAGIC is supplied as a compact unit complete with a steel foundation box (41x25x17h cm).
The profile of the box is recessed to facilitate installation.
MAGIC functions as a load-bearing centre hinge, designed in such a way that the motor can be
removed for servicing purposes without taking down the gate.
MAGIC drive is reversible, and therefore requires no release mechanism.
MAGIC will comfortably operate gates and doors up to 350 kg in weight and 2.5 metres in length,
with an opening time of 20 seconds for the 105° version and 40 seconds for the 180° version
(in compliance with current standards).
MAGIC 105° version (fig 3): this has a system controlling the speed of the opening and closing
movements (opening movement initially slow, then fast; closing movement initially fast, then
slow immediately before shutting).
MAGIC 180° version (fig 4): installing this version, a gate can be rotated through 180° if the
drive shaft is coaxially aligned with the hinge centre, or through 150° with the drive shaft offset
from the centre of rotation by up to 4.5 cm.
Measurements in mm
2
1
416 107
58
Ø35
Ø65
261
30
170
83
33
TECHNICAL DATA
MAGIC 105° MAGIC 180°
Max. leaf length m 2,5
Max. leaf weight kg 350
Average opening time s 20 40
Max torque Nm 250
EEC Power supply 230V~ 50/60Hz
Motor capacity W 190
Power absorbed A 0,8
Capacitor µF 6,3
EEC Power supply 120V~ 60Hz
Motor capacity W 200
Power absorbed A 1,8
Capacitor µF 25
Normative cycles n° 18 - 20s/2s 10 - 33s/2s
Daily operations suggested n° 80
Service % 50
Guaranteed consecutive cycles n° 33/20s 16/40s
Lubrification STAROIL OMALA S2G 100
Weight of electroreducer kg 21
Noise db <70
Volume m
3
0,020
Operating Temperature °C -10 ÷ +55
Protection IP 677
MAGIC operator
Radio antenna
Blinker
Photoelectric cells (external)
Photoelectric cells (internal)
Key selector
