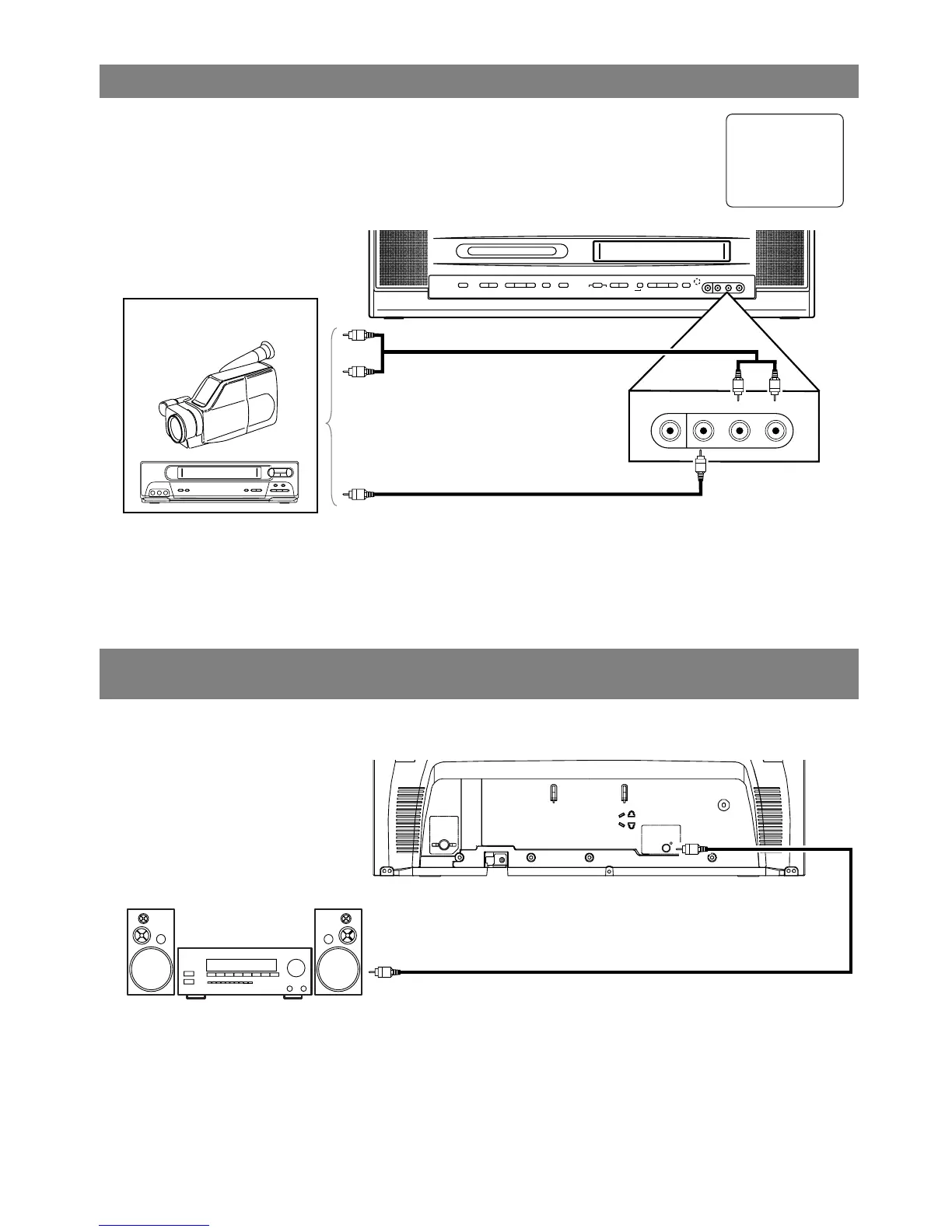

CONNECTING TO FRONT A/V INPUT JACKS
When you watch a program recorded on another source (VCR or video camera), use the
AUDIO/VIDEO input jacks on the front of the unit.
Connect the Audio/Video output jacks of another source to the AUDIO L/R and VIDEO
jacks of this unit.
Then press [SELECT] or [CH.
KK
/
LL
] until “AUX” appears on the screen.
- 13 - EN
CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH
DIGITAL INPUT JACKS (for DVD)
Use an audio coaxial digital cable (commercially available) for the audio connections.
Connect to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.
NOTES:
•
The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital
sound by an MD or DAT deck.
•
Be sure to turn off the power to all components in the system before connecting another component.
•
Refer to the Owner’s Manuals for the components to be connected to the unit.
•
Set “DOLBY DIGITAL” to “PCM” for audio output in the setup mode. Playing a unit using incorrect set-
tings may generate noise distortion and may also damage the speakers. (Refer to page 44.)
[Fig. 6]
y
STANDBY-ON
L
VOLUME
K
L
CHANNEL
K
I
REC/OTR
E
–
SEARCH
–
D
H
PREV NEXT
GB
PLAY
C
STOP
SOURCE
OPEN/CLOSE
E
REW F.FWD
DB
PLAY
C
A
STOP/EJECT
HEADPHONE
VIDEO
L
–
AUDIO
–
R
I
II
DVD
TV/VCR
HEADPHONE
VIDEO
L
–
AUDIO
–
R
CC
ex.
VCR or video camera
, etc.
[Front of the unit]
[Fig. 5]
Audio Cable
(commercially available)
To the Audio output jacks
To the Video output jack
Video Cable
(commercially available)
NOTE:
•
When you connect a monaural VCR (another source) to this unit, connect the Audio output jack of the
monaural VCR (another source) to the AUDIO L jack of this unit. The audio will output in both L and R
channel equally.
AUX
(OUT)
(IN)
(OUT)
(IN)
(OUT)
(IN)
