DataLogger Series 4 Technical Manual
February 2021
Page 12 of 28
7. Main Menu
7.1 IMPULSE•G+/VG+ Series 4 and DC Drives
When the DataLogger is connected to an IMPULSE•G+/VG+ Series 4 drive, the menu is structured the
same as the standard keypad. It retains the existing functionality plus four additional DataLogger function
menus. This also applies to the OmniPulse DDC Series 2 and MagnePulse DMC Series 2 DC drives.

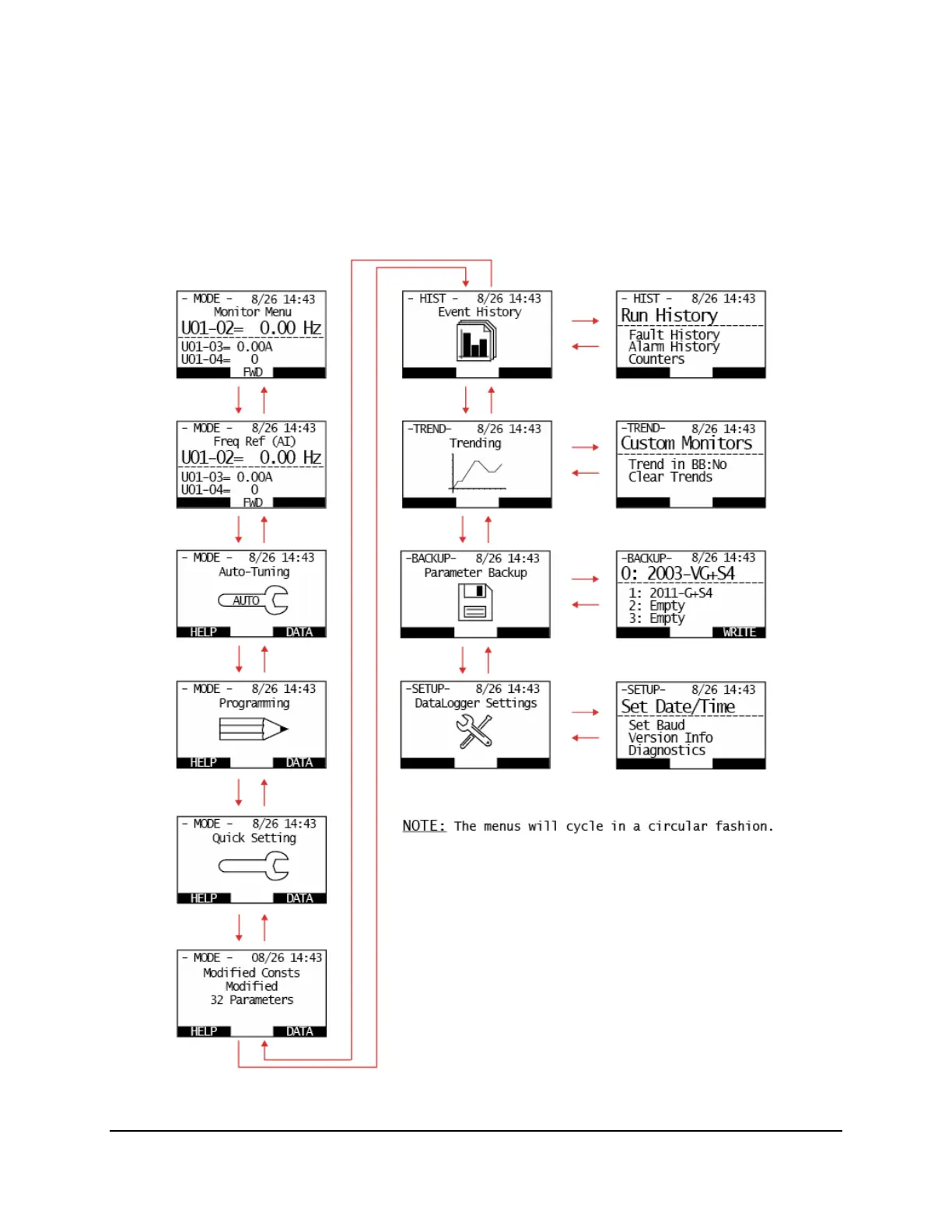

Figure 2: Main Menu Navigation - IMPULSE•G+/VG+ Series 4 and DC Drives
