12.2 Replacing filters (code 007950013050)
Drier filter should be replaced when its properties of absorbing the humidity from the recycled
refrigerant are depleted.
When it is time to replace the drier filter, the display will show AL.FiLt message.
When replacing the filter, follow the instructions below:
It is forbidden to interfere with the components of the stations which are not
specifically referred to in this section.
Required tools:
1 Phillips screwdriver
2 socket wrenches (12 mm + 19mm)
1) Disconnect the station from the power mains.
2) Unscrew 4 screws fixing the bottom panel to the station body and remove the panel.

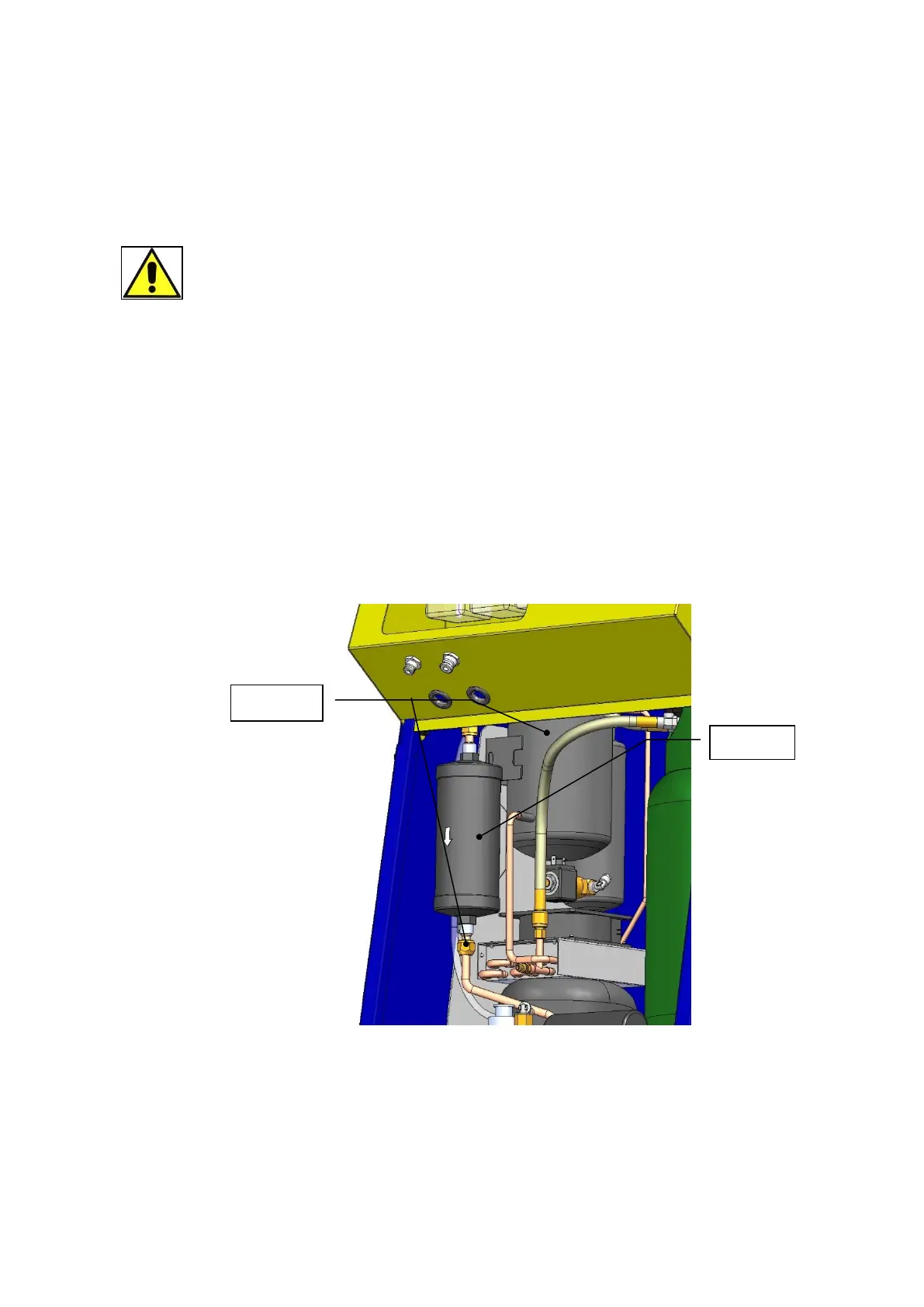

3) Unscrew 2 nuts fixing the filter (15) using hexagonal wrenches.
4) Cut the band on the support
5) Install a new filter, making sure the sealing O-ring is placed as indicated by the arrow.
6) Tighten the nuts fixing the filter (15) using hexagonal wrenches.
7) Install a new band.
