MAGUIRE Weigh Scale Blender 4088 TSC User Manual

14
"Vacuum Takeoff Assmbly"
With Optional VTA
WSB STANDS
37-1/4 [946]
51-1/4 [1302]
Barrel VTA WSB 100/200/400
10-1/8 [257]
A B DC
25-7/8 [657]36 [914]
39-7/8 [1012]
8-1/8 [206]
E F
Gaylord WSB 900/1800
51-7/8 [1318]63-1/4 [1607] 56 [1422]
VTA Barrel Gaylord
36 [914] 8 [203]
8 [203]
43-1/4 [1099] 69-1/4 [1759] 57-1/4 [1454]
16-1/8 [410] 36 [914]
56 [1422]
36 [914]
15 [381] 15 [381] 15 [381]

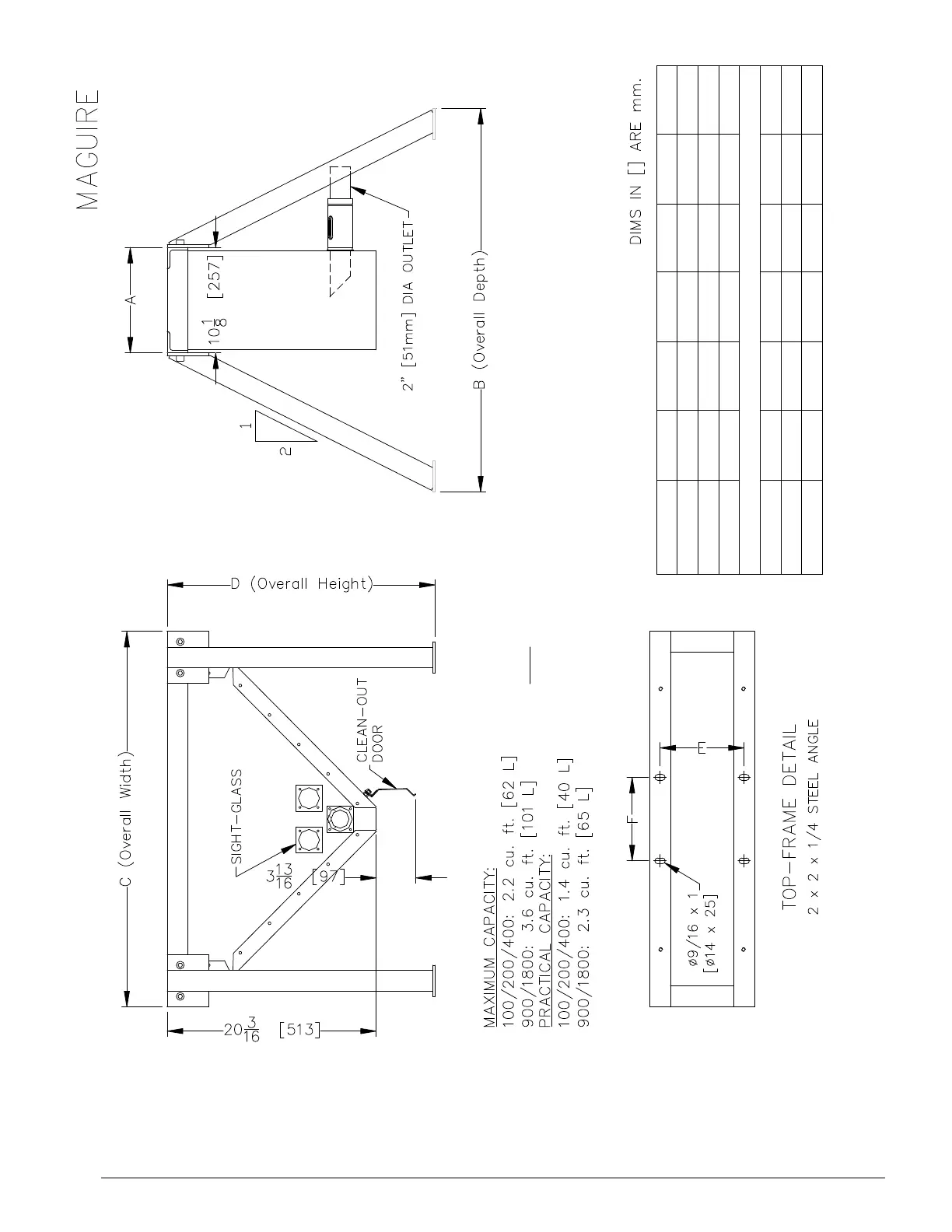

STAND DIMENSIONS
NOTE:
WSB 100/200/400 VTA Stand shown to scale.
10-1/8 [257] 10-1/8 [257]
8 [203]
8-1/8 [206] 8-1/8 [206]
14-1/8 [359] 14-1/8 [359] 14-1/8 [359]51-7/8 [1318]
39-7/8 [1012]
25-7/8 [657]
16-1/8 [410] 16-1/8 [410]
