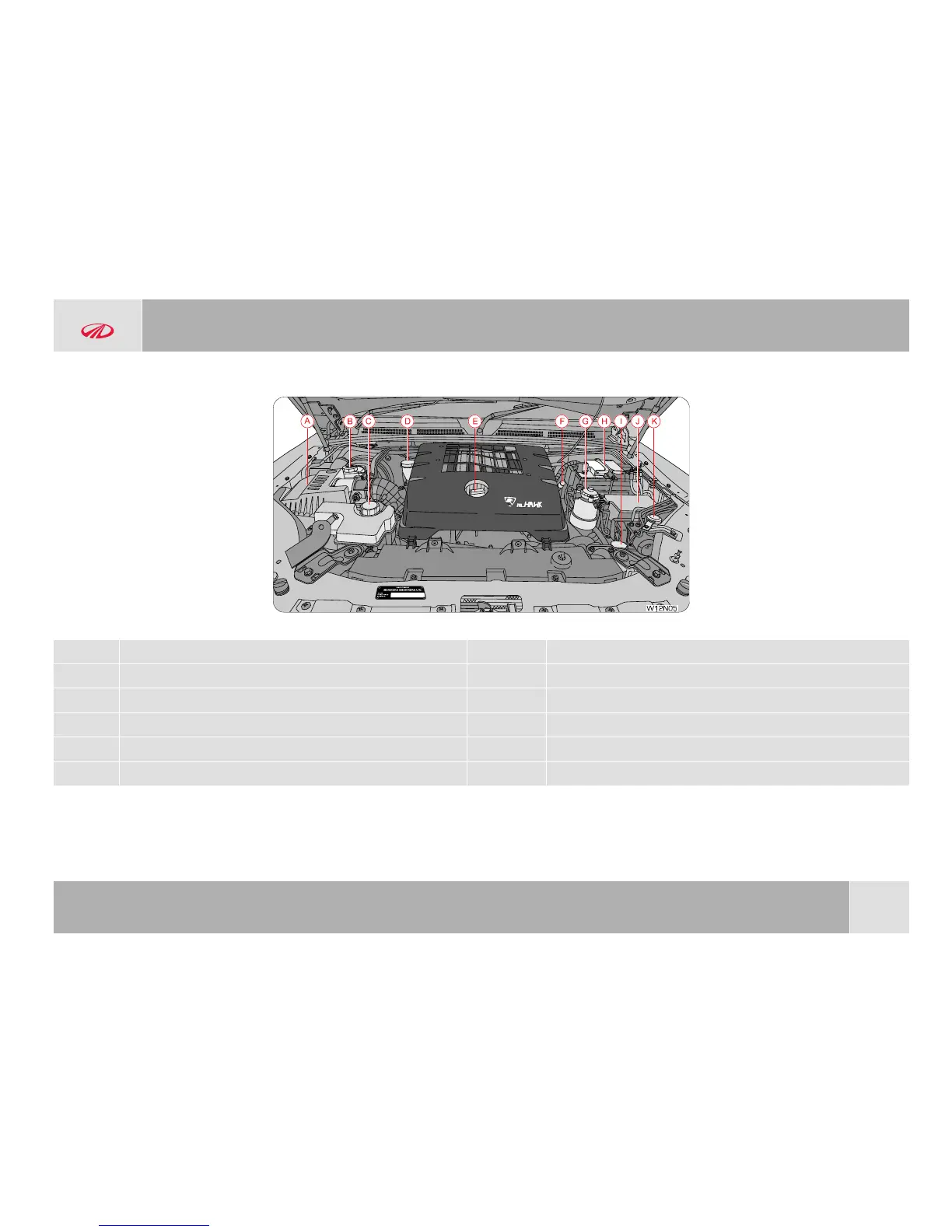

14.9 Identifying Components in the Engine Compartment
A
B C D E F H JI KG
W12N05
A Air Cleaner Assembly G Fuel Priming Pump
B Brake Fluid Reservoir H Battery
C Degassing Tank (Coolant Filling) I Power Steering Fluid Reservoir
D Clutch Fluid Reservoir (MT only) J Engine Compartment Fuse Box
E Engine Oil (Engine Oil Filling) K Front Windshield Washer Fluid Reservoir
F Dipstick (Engine Oil Level Checking)
