E-12
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission

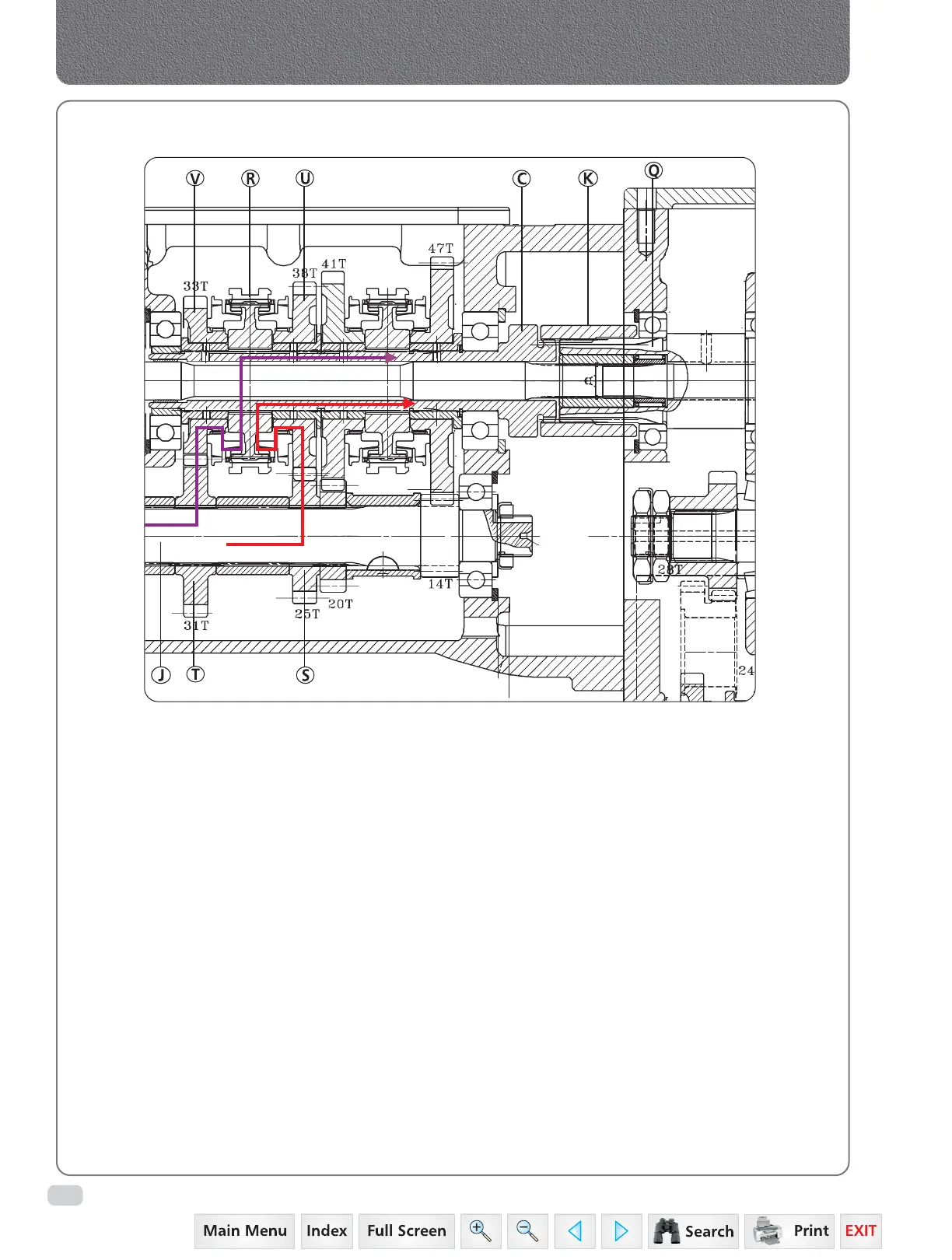

SPEED GEAR SECTION
Major components
J. Counter Shaft
C. Speed Shaft
K. Coupling
R. 3rd - 4th Synchronizer
S. 3rd Gear Driving
T. 4th Gear Driving
U. 3rd Gear Driven
V. 4th Gear Driven
Q. Range Shaft
Shifter Ring engaged with 3rd gear
The power flows from Counter Shaft (J) 3rd Gear Driving
(S) to 3rd Driven Gear (U) on Speed Shaft (C) to the
Synchronizer (R) splined with the Speed Shaft. Hence
power goes to Range Shaft (Q) through coupling (K).
Shifter ring engaged with 4th gear
The power flows from Counter Shaft (J), 4th Gear Driving
(T) to 4th Driven Gear (V) on Speed Shaft (C) to the
Synchronizer (R) splined with the Speed Shaft. Hence
power goes to Range Shaft (Q) through coupling (K).
