E-13
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission

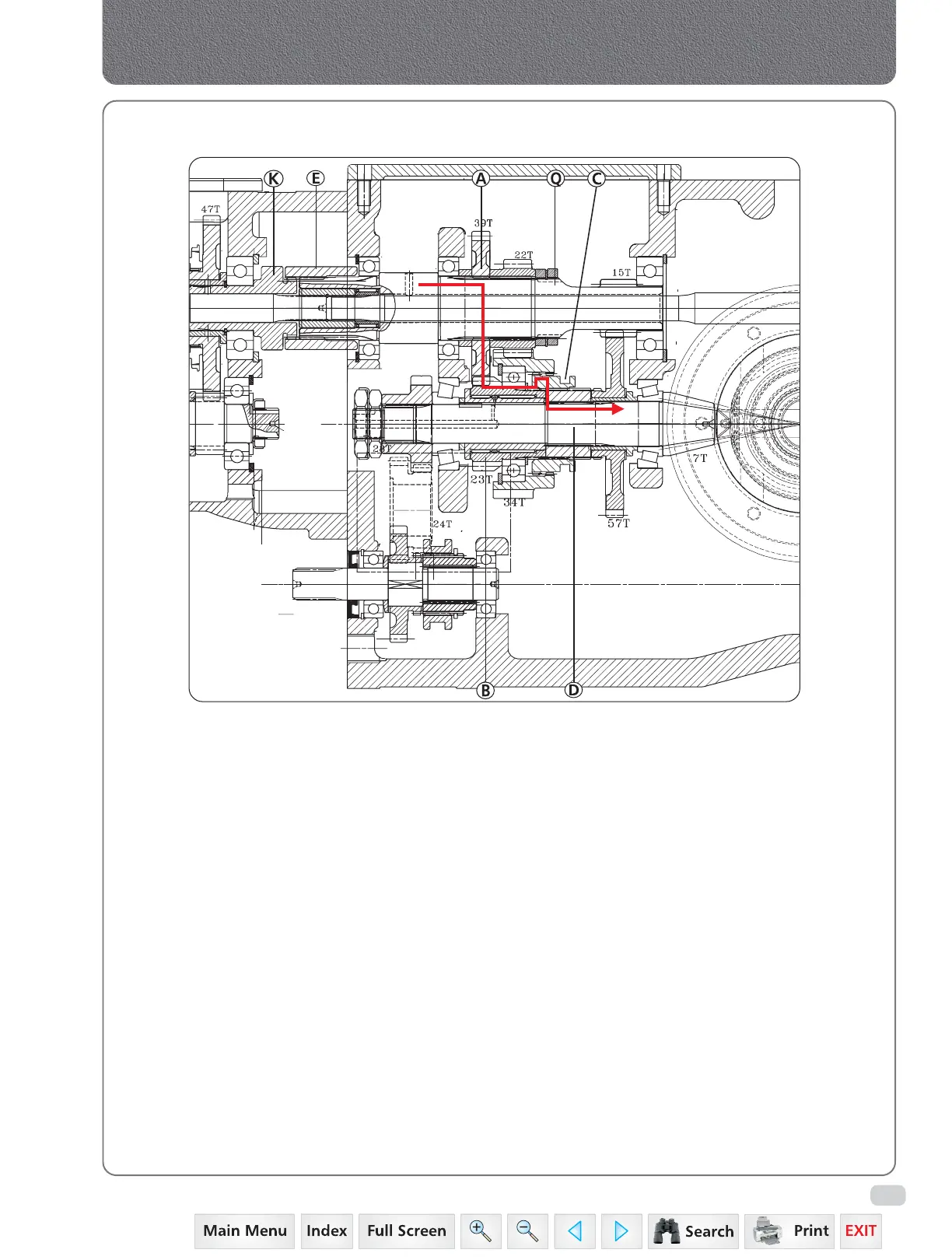

RANGE GEAR SECTION
Major Components
K. Speed Shaft
Q. Range Shaft
A. High Gear Driving
B. High Gear Driven
C. High-Low-Medium Coupling
D. Spline Shaft
E. Coupler
The Range Section arrangement is Constantmesh.
The power from Speed Section comes through range
shaft through range section. The High and Medium
range driving gears are splined to Range Shaft and low
gear is integral with the Range Shaft. All range driven
gears are free to rotate in the neutral condition on shaft
pinion.
Shift Coupling Engaged with high gear
The power from Range Shaft high driving gear (A) flows
to high driven gear (B) through coupling (C) to the spline
shaft (D) and splined collar.
