Mahindra 35 Series User Manual

E-14
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission
Major Components
K. Speed Shaft
Q. Range Shaft
C. High-Low-Medium Coupling
D. Spline Shaft
E. Coupler
F. Medium Gear Driving
G. Medium Gear Driven
H. Low Gear Driving
I. Low Gear Driven

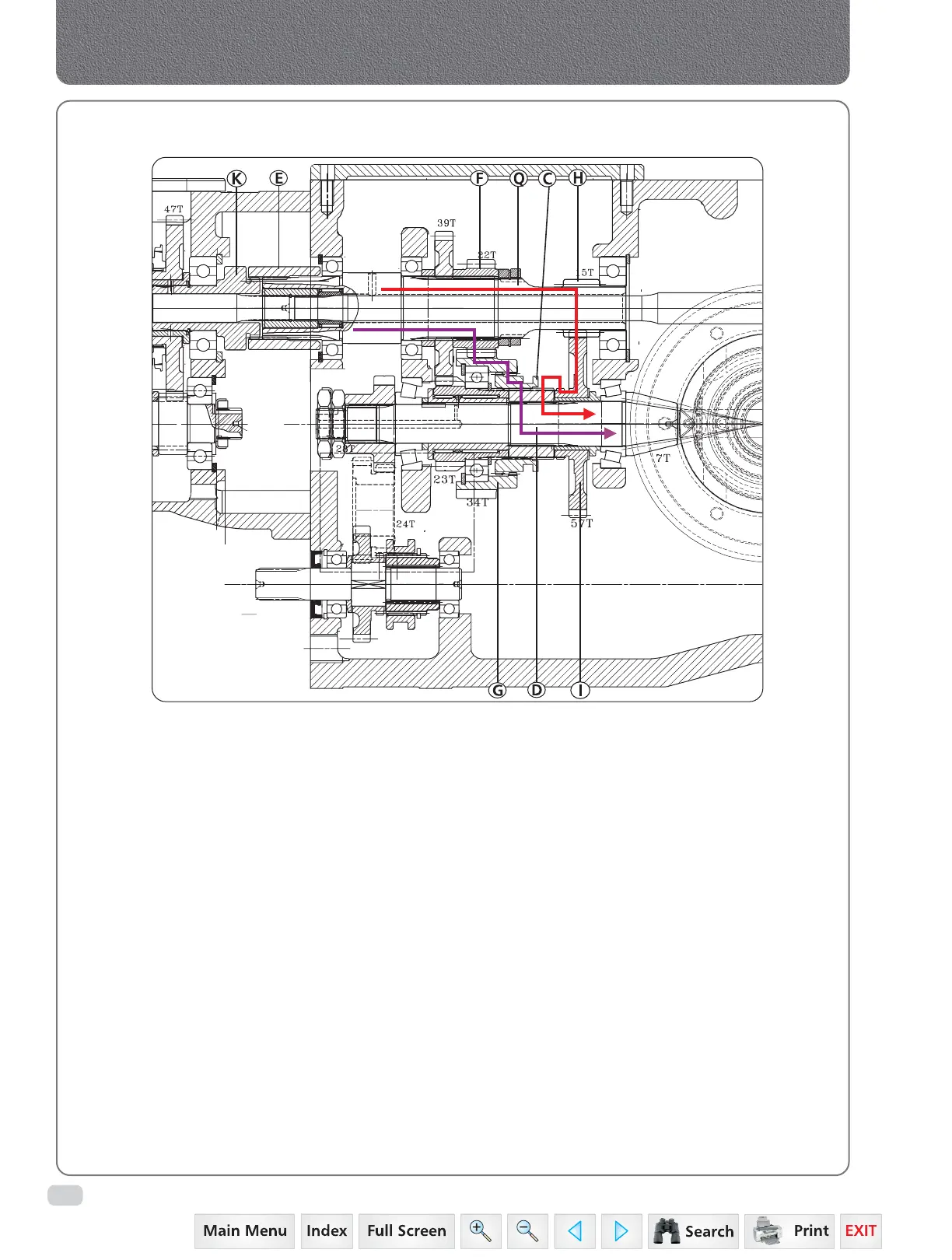

Shift Coupling Engaged with Medium gear
The power from Range Shaft medium driving gear (F)
flows to medium driven gear (G) through Coupling (C)
to the spline shaft (D).
Shift Coupling Engaged with Low gear
The power from Range Shaft low driving gear (H) flows
to low driven gear (I) through Coupling (C) to the spline
shaft (D).
RANGE GEAR SECTION
