E-15
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission
SPEED SECTION

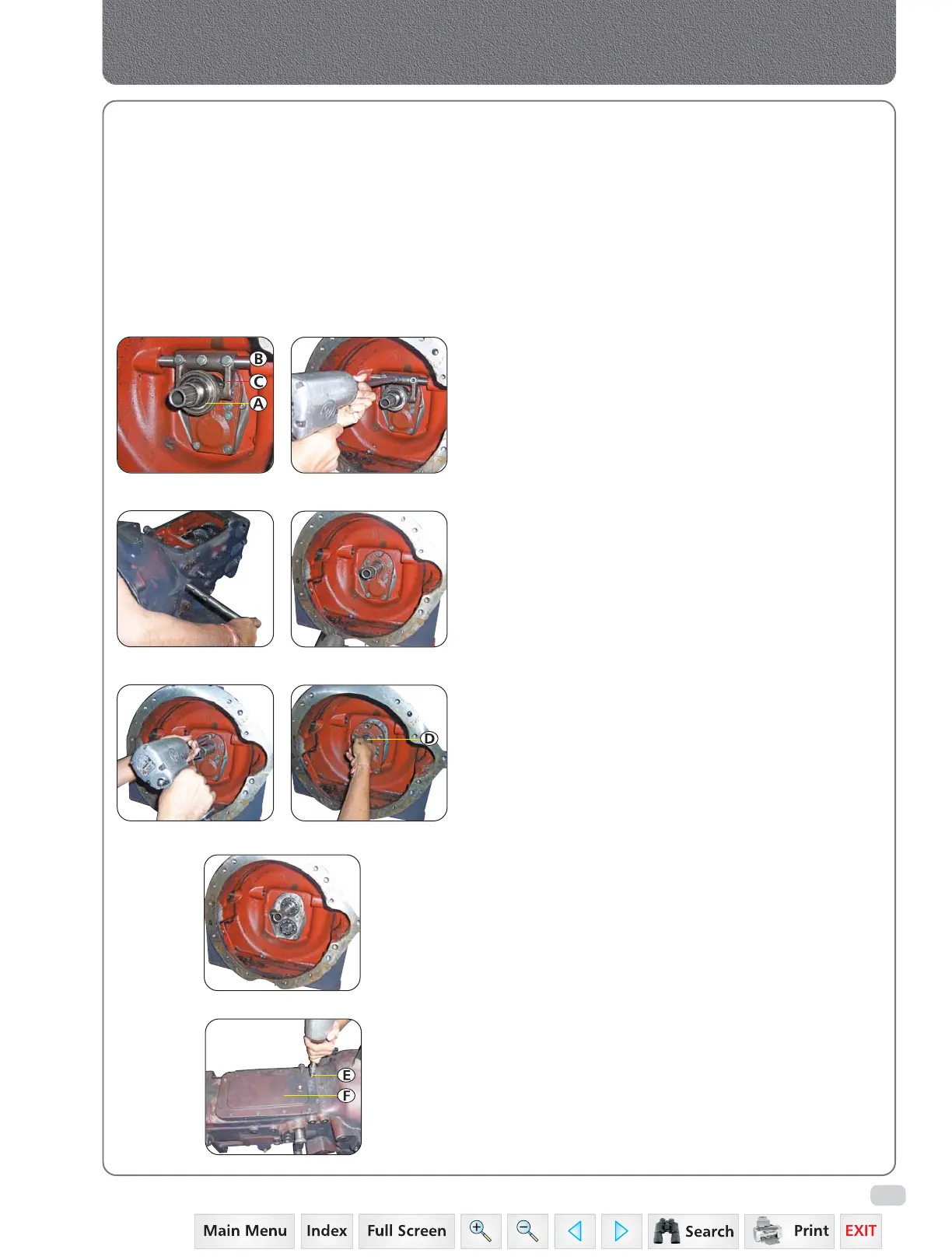

A. Dismantling
1. Separate clutch housing from engine
(Refer splitting Section).
2. Remove steering, return oil supply to top cover.
3. Remove steering gear and brake linkages as well
as shifting linkages and other fitment.
4. Support the clutch housing with suitable
arrangement.
5. Remove clutch release bearing (A), shaft (B) and
fork (C).
6. Remove front retainer (D).
7. Remove PTO input shaft, remove transmission
driving hollow shaft along with front bearing.
Hold the gears and spacers in position.
Remove gears and spacers.
8. Remove top cover (E) by loosening bolt (F).
