E-16
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission

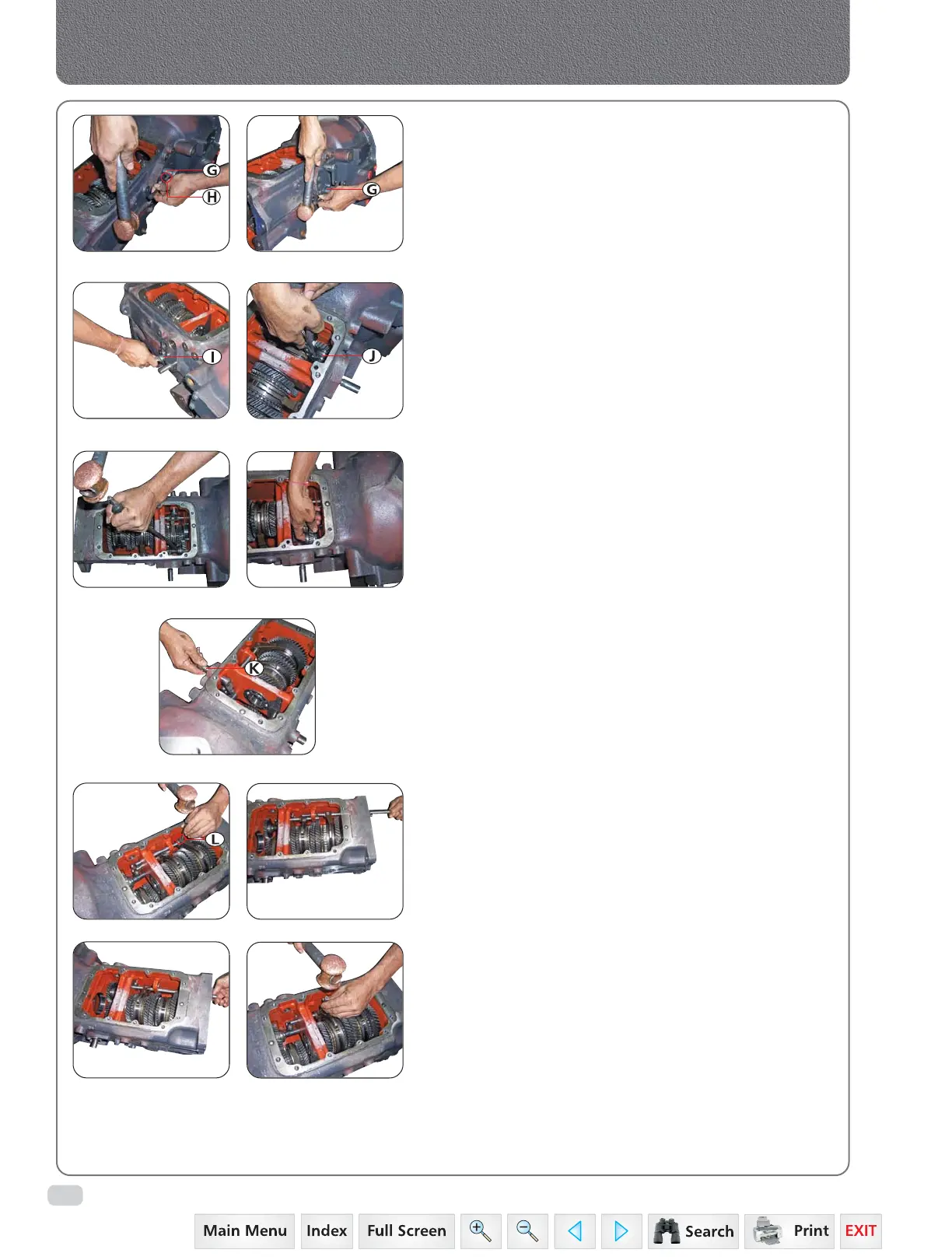

9. Remove forward / Reverse and speed shifting arms
(G) by removing spring pin (H).
10. Remove forward / Reverse idler shaft positioning
bolt (I) and remove idler circlip (J) and assembly
by slight tapping.
11 Remove forward / Reverse and speed levers (K).
12. Separate forward / Reverse and speed forks
removing spring pin (L) by using special tool.
13. Remove speed rail detention bolt, springs
and balls, remove forks and rails.
14. Remove middle wall ball bearing by removing
circlip top shaft.
