E-35
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Differential

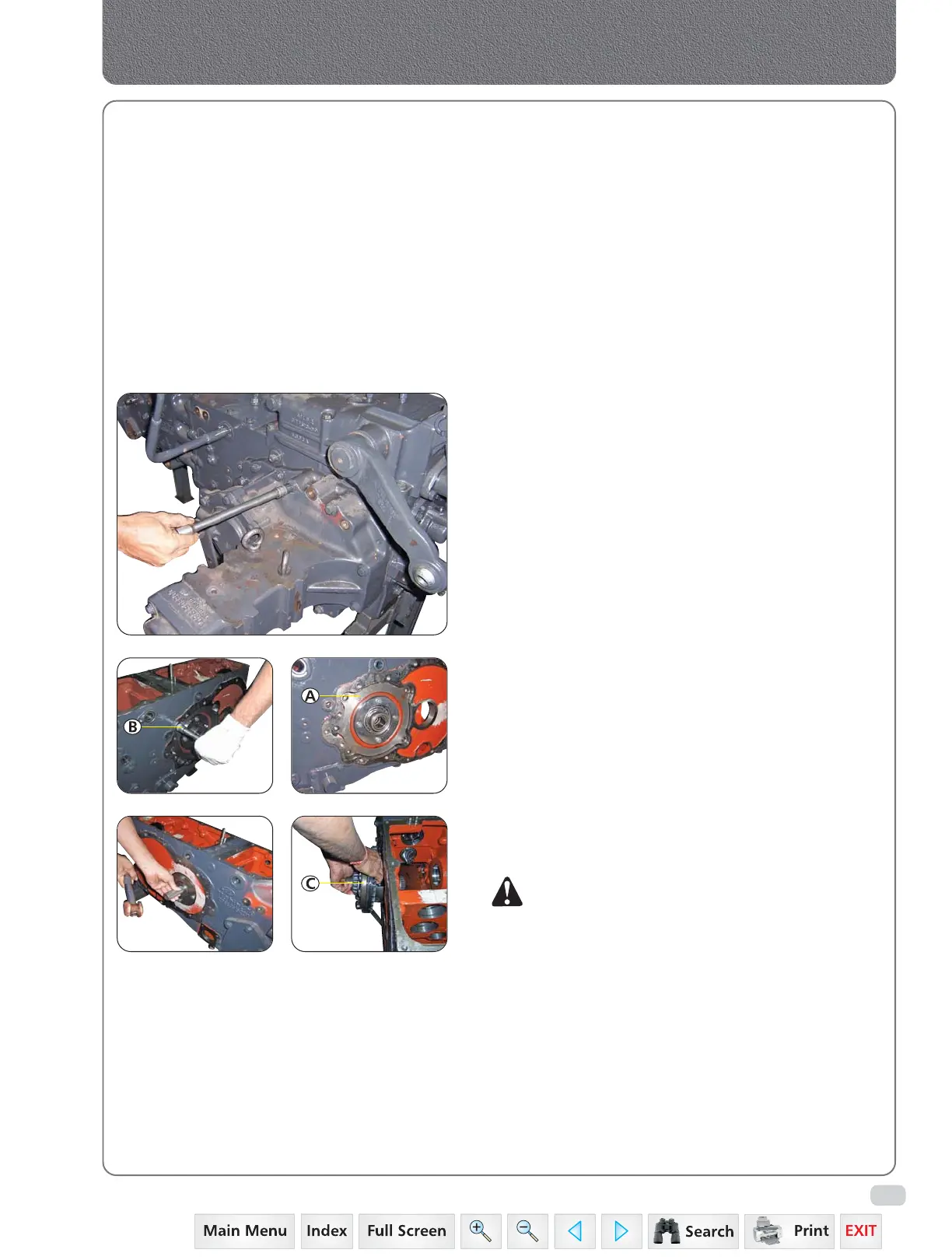

3. Removal of Differential Assembly from Range
Section
a. Drain oil from the transmission.
b. Insert wooden wedges / mini jacks between front
axle and axle support to prevent the engine
pivoting.
c. Remove the rear axle housing.
d. Remove the brakes as detailed in “Brakes”.
e. Remove hydraulic housing and sheet metal.
(If you are working on spline shaft or
differential lock).
f. Remove LH Rear Axle Carrier.
g. Remove retainer (A) alongwith differential housing
assembly by loosening bolt (B).
h. Tap slightly, o take out the differential assembly
(C) complete.
NOTE: Remove differential lock shifting arrangement
before dismantling differential case assembly.
