Differential

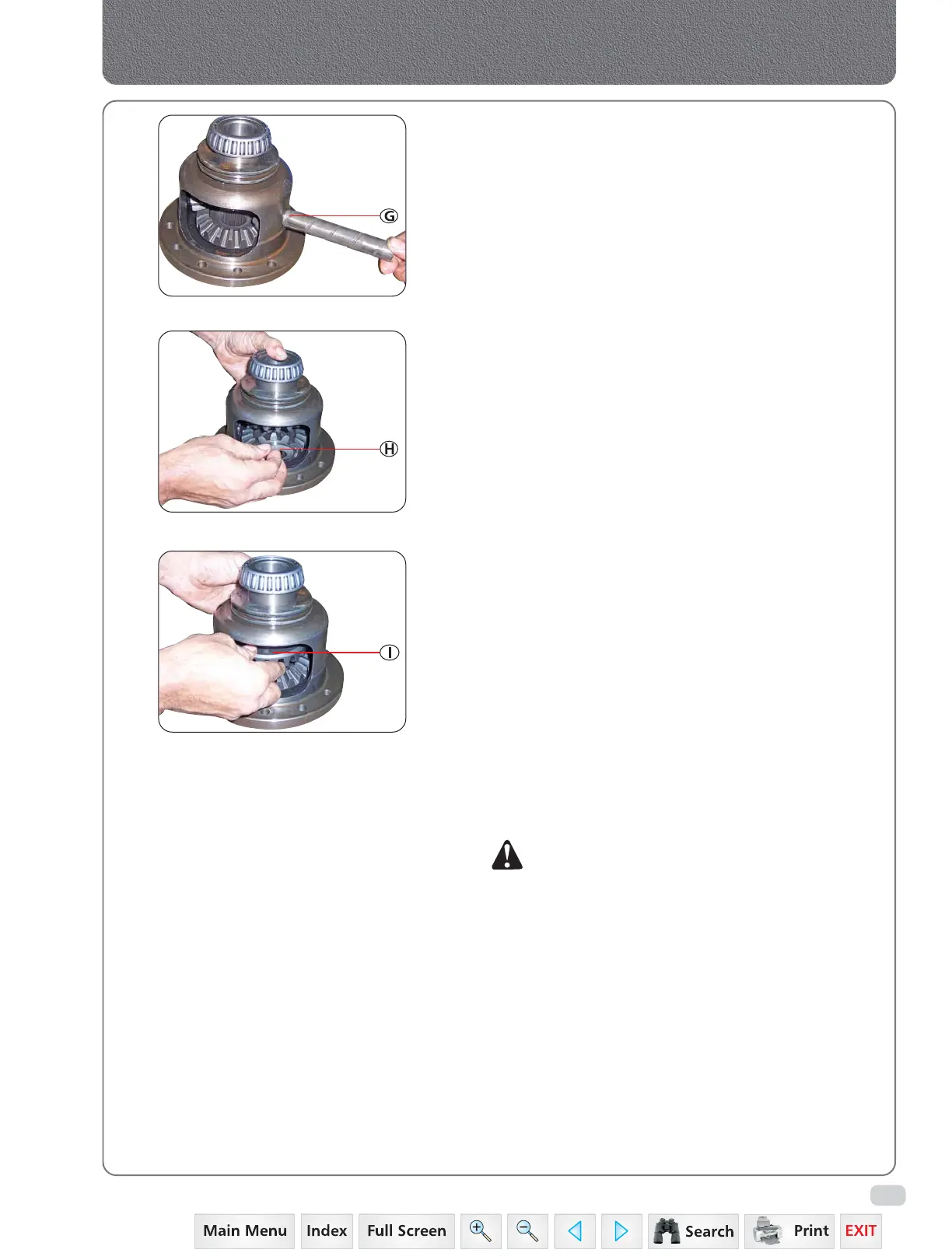

e. Push out Differential Pinion Shaft (G).
f. Remove Pinion Differential (H) and thrust washer.
g. Remove Bevel Gear (I) and thrust washer.
6. Cleaning & Inspection
a. Clean all part with suitable solvent.
NOTE: Mark the parts to know their original position.
b. Check the differential pinion, thrust bearing and
pinion shaft; for excessive wear; pitting or teeth
damaged. If these parts are damaged or
excessively worn replace as a set.
c. Check bevel gear and thrust washer surface of
both bevel gears worn or damaged. Replace the
parts.
d. Check the ring gear for wear and damage. If no
longer serviceable, replace it with spiral pinion
shaft as a set.
e. Check Taper Roller Bearings for wear, pitting or
crack. If necessary replace it.
To Next Page
