F-9
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

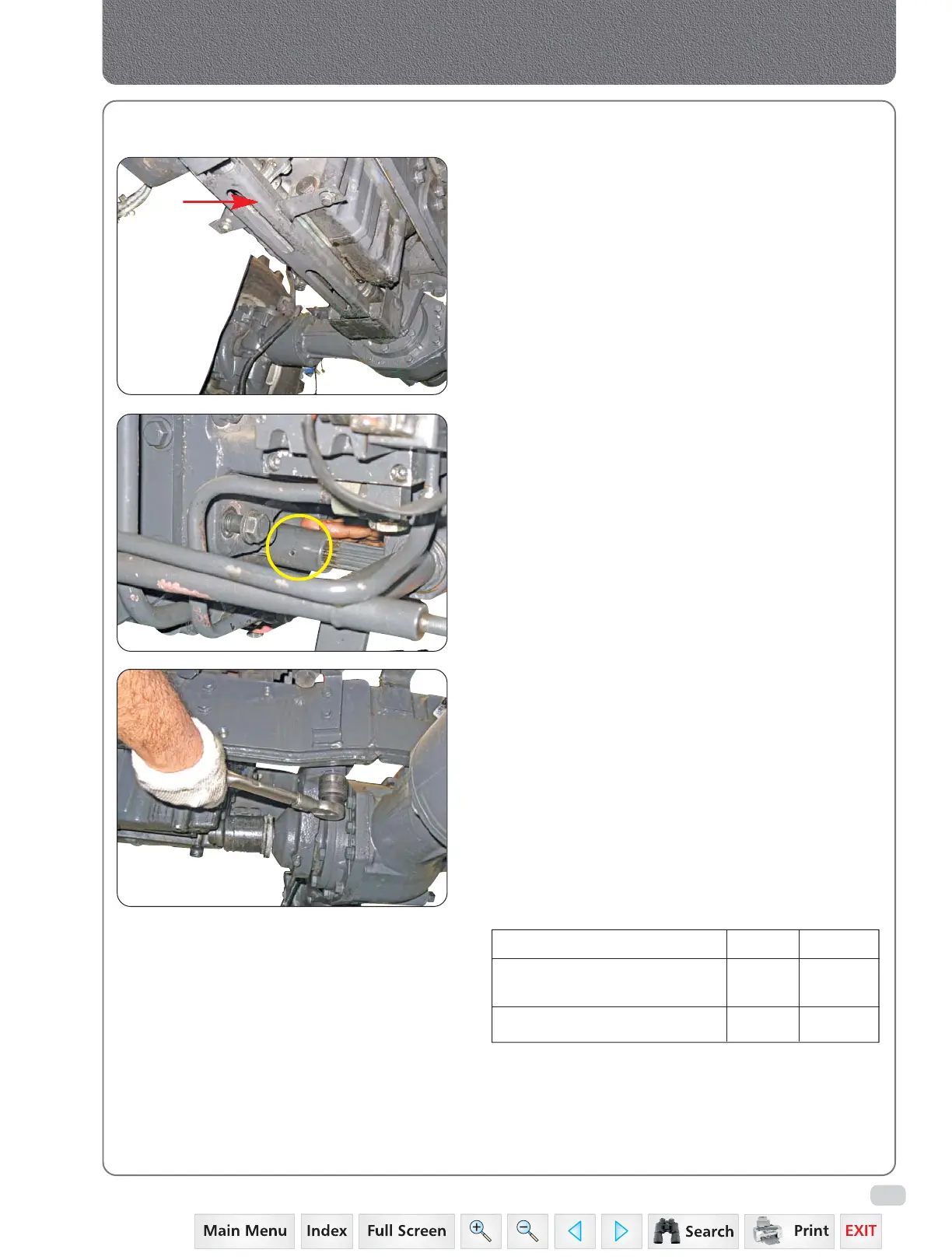

4. DISMANTLING OF FRONT AXLE
A. Dismantling of Complete Front Axle
1. Dismount the front wheel drive shaft and
propeller shaft guards.
2. Remove the right and left tie rods.
3. Suspend the front axle with the chain.
4. Remove the front and rear pillow block bolts and
front axle can be separated.
5. Remove front and rear pillow blocks.
INSPECTION
Front & Rear Pillow Block Mounting Diameter:
1. Measure the diameter at a bush contact point
with Micro-meter or Vernier-caliper. If the
measured value is less than usable limit, replace
the pillow block.
Front Rear
Standard Values as ø 70 ø 74
assembled (mm)
Usable limit (mm) ø 70.2 ø 74.2
2. Worn or damaged oil seals, O’rings, bearings, etc.
should be replaced.
Front Axle
