Mahindra 35 Series User Manual

F-16
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Front Axle

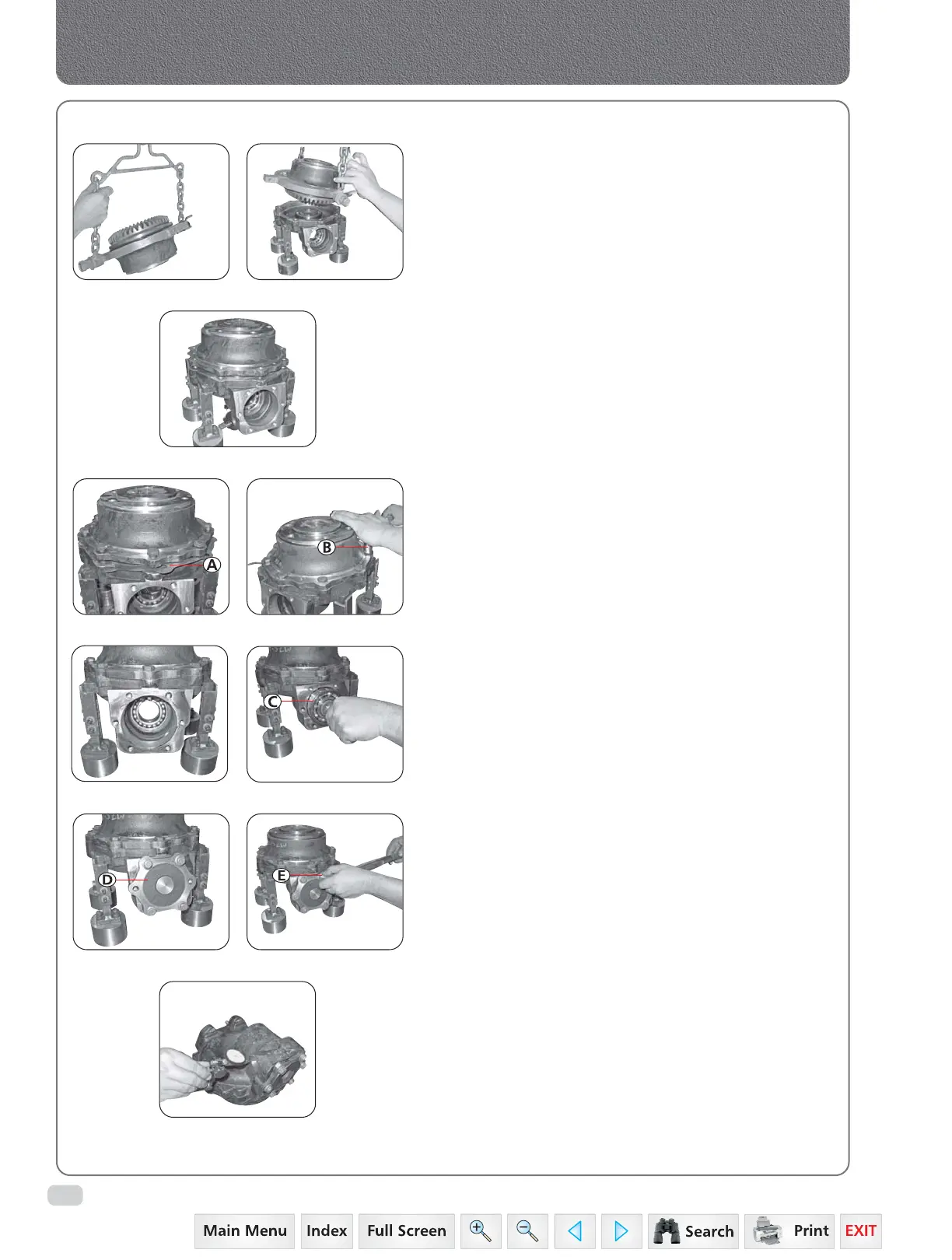

D. ASSEMBLY OF HUB/SWIVEL/SIDE HOUSING
1. With suitable bracketaries, lift hub housing
assembly and place on swivel housing assembly.
2. Put shims (A) between swivel housing & hub
housing and tighten both assemblies mounting
bolt (B) to torque 41-50 Nm.
3. Apply thread sealant on swivel housing and fit
final reduction pinion with bearing (C) inside
swivel housing.
4. Fit the cover (D) on swivel housing and tighten
bolts (E) to torque 65-72 Nm.
5. Check backlash for final reduction gear pair,
it should be between 0.13 to 0.30 mm., if
necessary adjust the shims.
