Front Axle
E. PINION GROUP ASSEMBLY

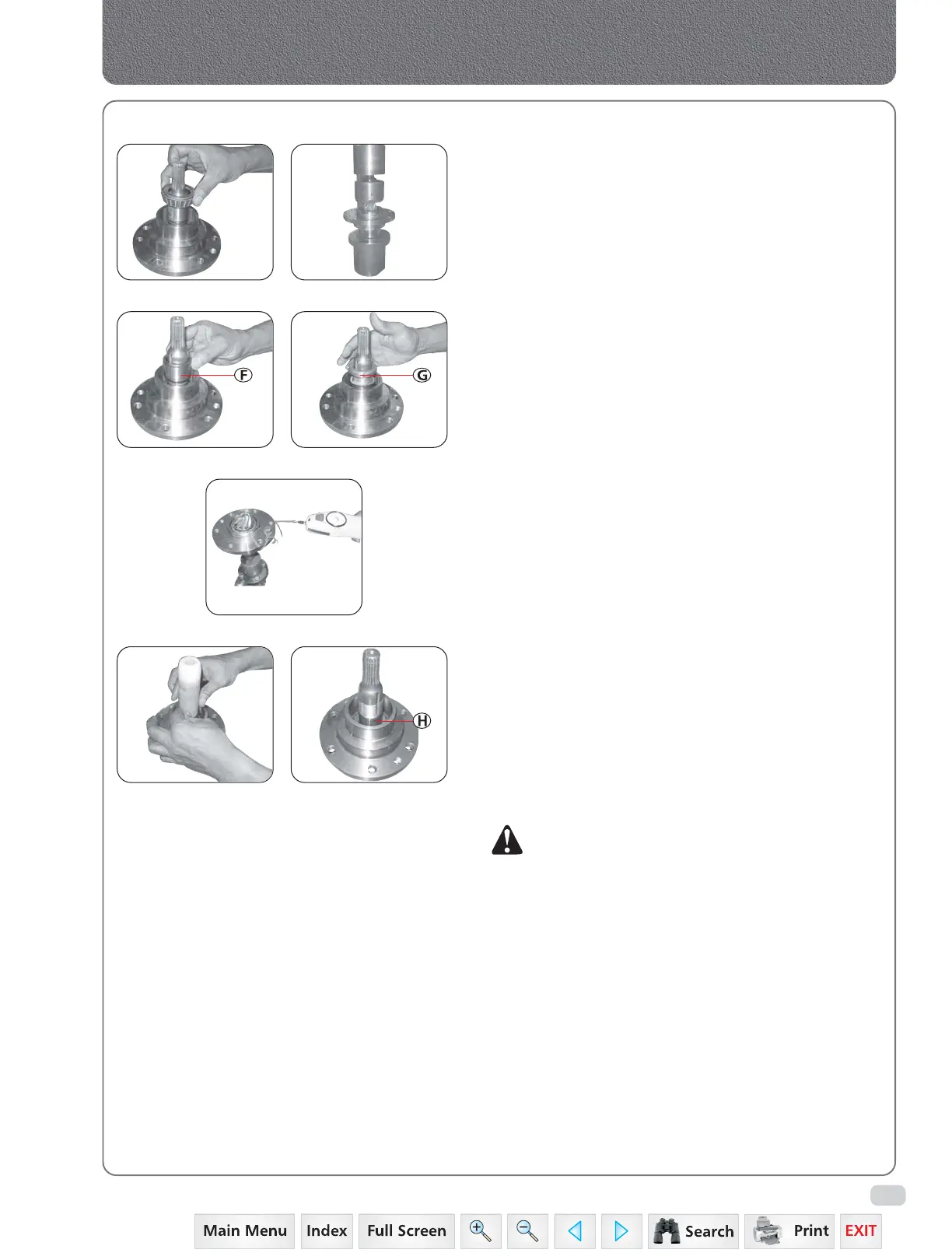

6. Press the front taper roller bearing to the pinion.
7. Put spacer (F) and tighten the lock nut (G) to
65 Nm torque.
8. Check the preload. It should be between
3.0 to 3.75 Kg. If the preload is within limit or
more, accordingly add or remove the shims.
9. Once the preload set and shim value decided,
remove lock nut. Put O’ring (H) on pinion by using
plastic sleeve to avoid damage to O’ring.
Press oil seal. Then tighten lock nut to 65 Nm
and measure preload. Finally crimp the lock
washer in pinion slot provided.
Preload after oil seal fitment to be 4 to 5 Kg.
NOTE: Preload to be measured before oil seal fitment.

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
