Mahindra 35 Series User Manual

F-20
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

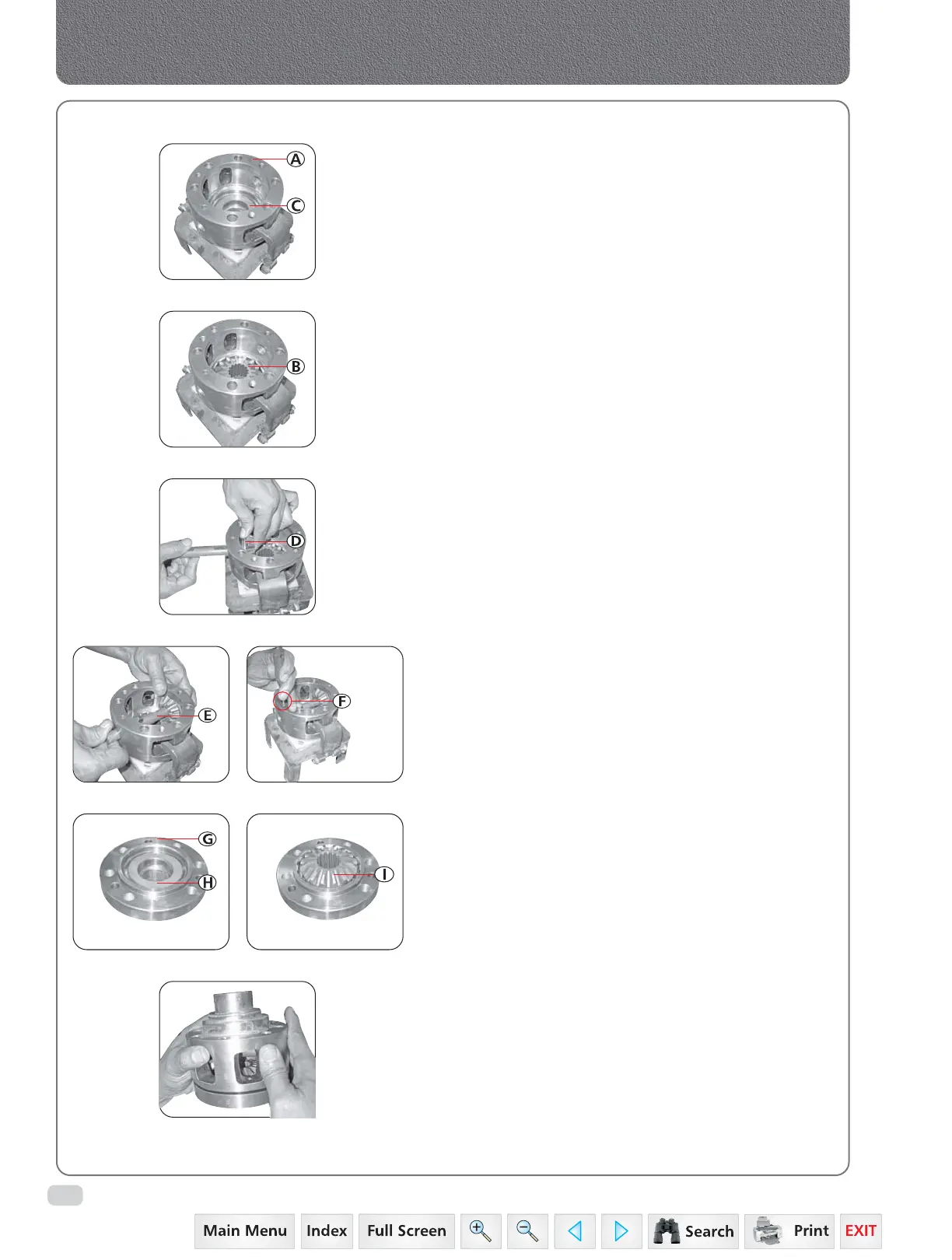

F. DIFFERENTIAL GROUP RING GEAR ASSEMBLY
1. Hold the Differential RH Housing (A) with suitable
fixture / holding device.
2. Assemble differential bevel gear (B) with thrust
washer (C) in RH Differential case.
3. Assemble differential bevel pinion (D) with thrust
washer (2 Numbers).
4. Insert shaft differential (E) and position with
spring pin (F) with proper dolly.
5. Assemble differential case LH (G) along with
thrust washer (H) and differential gear (I).
6. Assemble differential case LH and RH with
position mark as supplied.
Front Axle
