F. DIFFERENTIAL GROUP RING GEAR ASSEMBLY

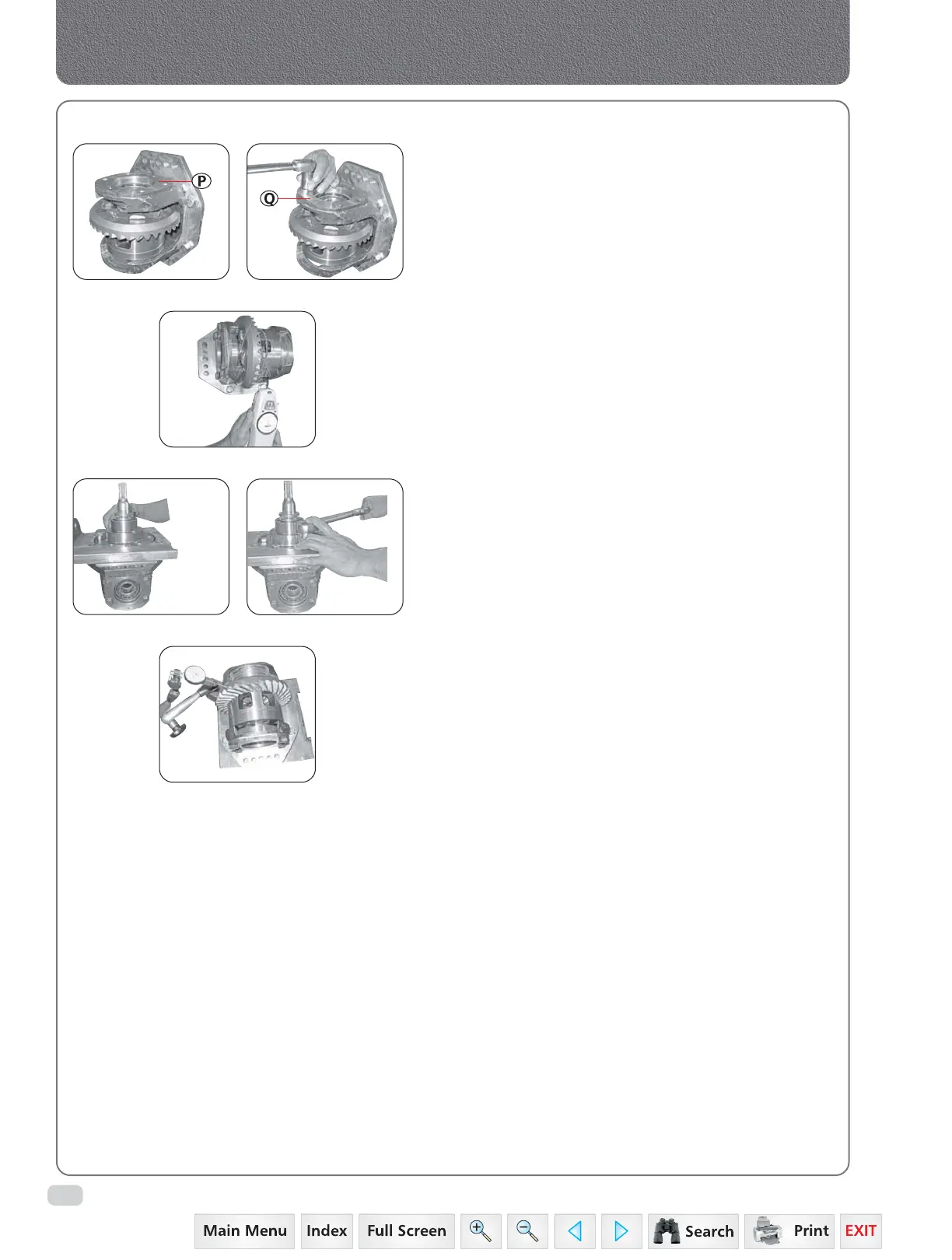

13. Insert the bearing carriers (P) from both side,
along with known value of shims (Q) and tighten
the bolts to 45 Nm torque.
14. Check preload and add or remove shims till you
get desired preload.
Preload Differential case - 1.25 to 2 Kg.
15. Fit Pinion assembly to Differential case assembly
and tighten the bolts to 120 Nm torque.
16. Check the differential gear backlash as specified.
Backlash Differential gear - 0.1 to 0.25 mm.
Adjust the backlash by shifting shims (Q) from
one side to other.
