G-11
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Electrical System

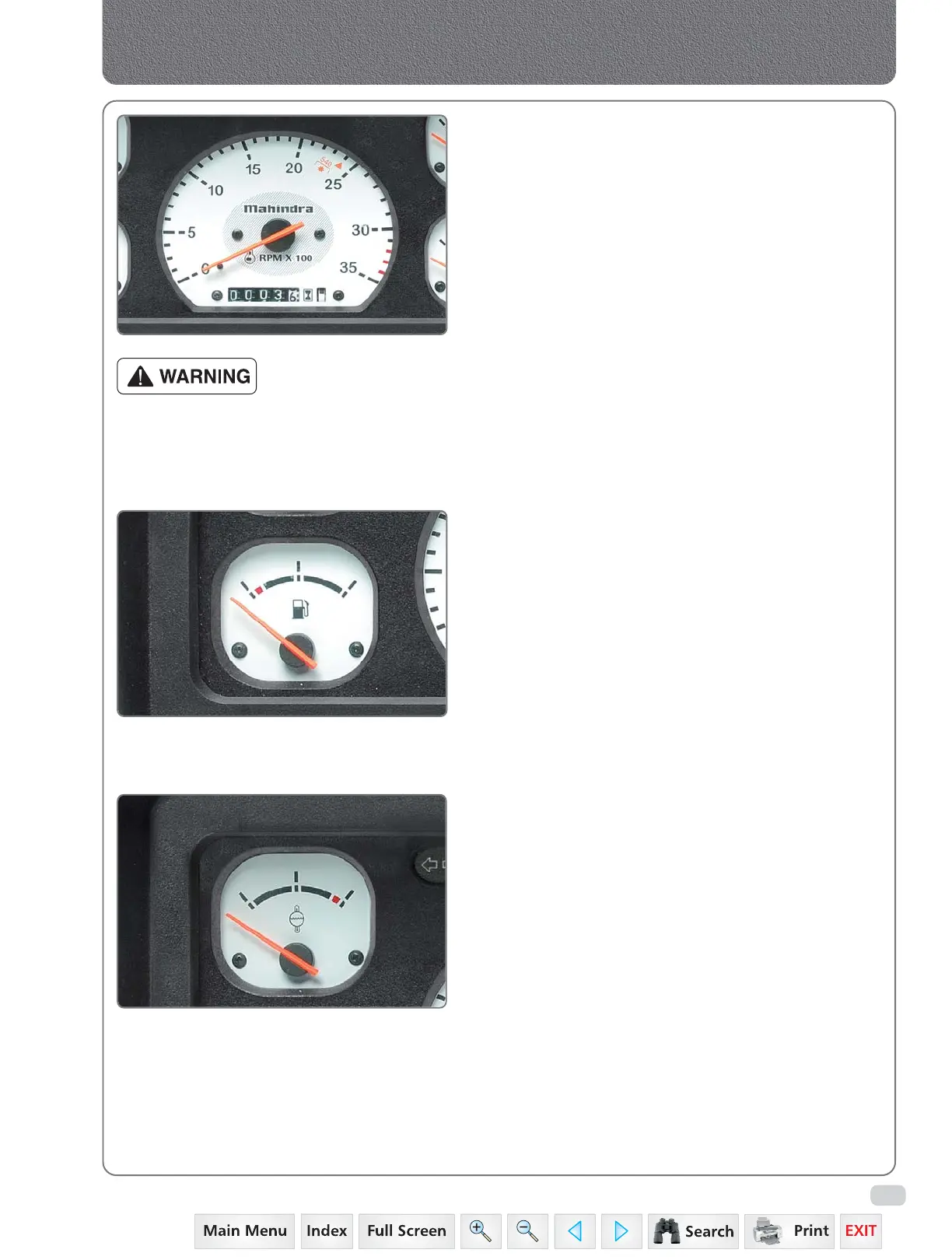

Engine RPM Meter
This meter gives the number of Revolution Per Minute
of the engine. To arrive at the RPM value at any given
point of time, multiply the pointer reading by 100.
Example : If the reading shows 15, the actual engine
RPM value = 15 x 100 = 1500.
PTO 540 RPM Mark
This mark is located in the Engine RPM Meter. It
indicates Engine RPM at which the PTO shaft will
rotate at 540 RPM.
Hour Counter
This is a Digital Hour Counter located in the RPM
meter. It is operated by pulses coming from Alternator
when the engine is running. Hour counter displays the
cumulative engine running hours.
Fuel Gauge
The Fuel Gauge indicates quantity of fuel available in
the fuel tank. Refill the fuel tank when the pointer lies
in Red Band.
Coolant Temperature Gauge
This gauge indicates coolant temperature of the
engine. When the pointer lies in RED band :
1. Indicates excessive engine coolant temperature.
2. Get the cause identified.
3. Further engine operation should be done only after
elimination of the problem.
Do not drive the vehicle when Engine RPM is in
Red Zone for longer duration.
