G-12
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Electrical System

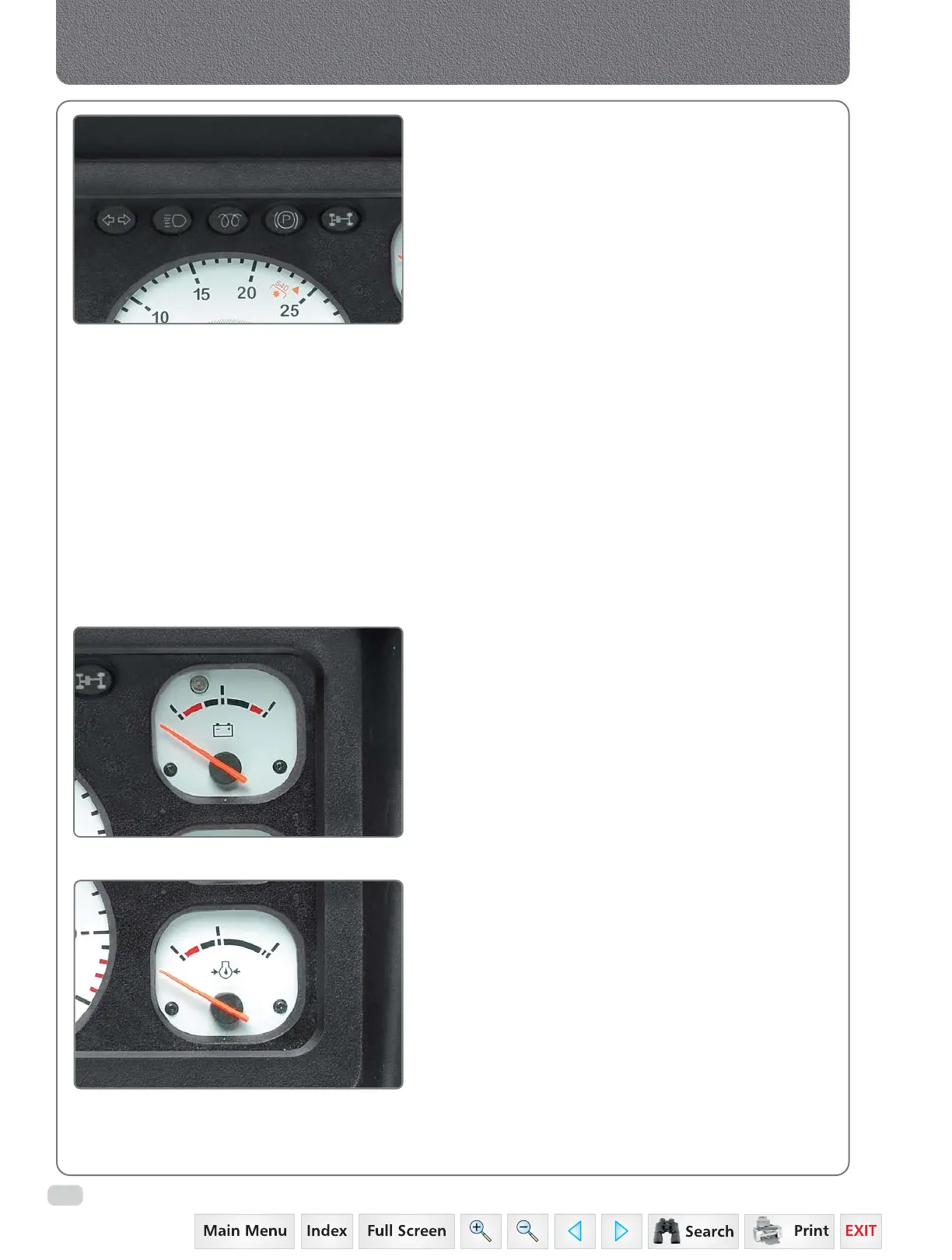

Turn Indicators (LH/RH)
LH and RH turn indicator is provided to indicate the
direction of turning.
A blinking turn indicator implies that either LH Turn
Signal or RH Turn Signal indicator of tractor is ON.
High Beam Indicator
It glows when Head Lamps are operated in High Beam.
Heater Indicator
When the key is turned to 2nd position, the Heater
Indicator glows to indicate the activation of heater
element provided in engine's intake manifold. The
indicator continues to glow for approx. 42 seconds. A
timer controls this time.
1. Turn the key to "ON" position and hold it till the
heater indicator is put-off.
2. Crank the engine when the heater indicator light is
put off after approx. 42 seconds.
Parking Brake Indicator
It glows when either brakes or Parking Brake is applied.
4WD Indicator
It glows when 4WD is engaged.
Battery Charging Indicator
This indicator will glow if battery is not getting
charged. Once the engine is running, this indicator
should go OFF, if the Battery is getting charged. If the
indicator glows continuously even when the engine is
running above low idle rpm of the engine. The cause
should be investigated to prevent complete discharge
of battery and possible damage of alternator.
Voltmeter
This gauge indicates the battery voltage at all times.
Engine Low Oil Pressure Gauge
This gauge will be in RED Zone if Engine lubricating oil
pressure is less while engine is operating. The pointer
will be in GREEN Zone when pressure is Okay. After
putting ignition switch in "ON" position, the oil
pressure gauge pointer should be in RED Zone. When
the Engine is running and healthy it should be in
GREEN Zone. If the pointer is in RED Zone, the problem
should be eliminated before starting the engine.
