G-13
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Electrical System
1
2
5
6
4
7
8
9
3

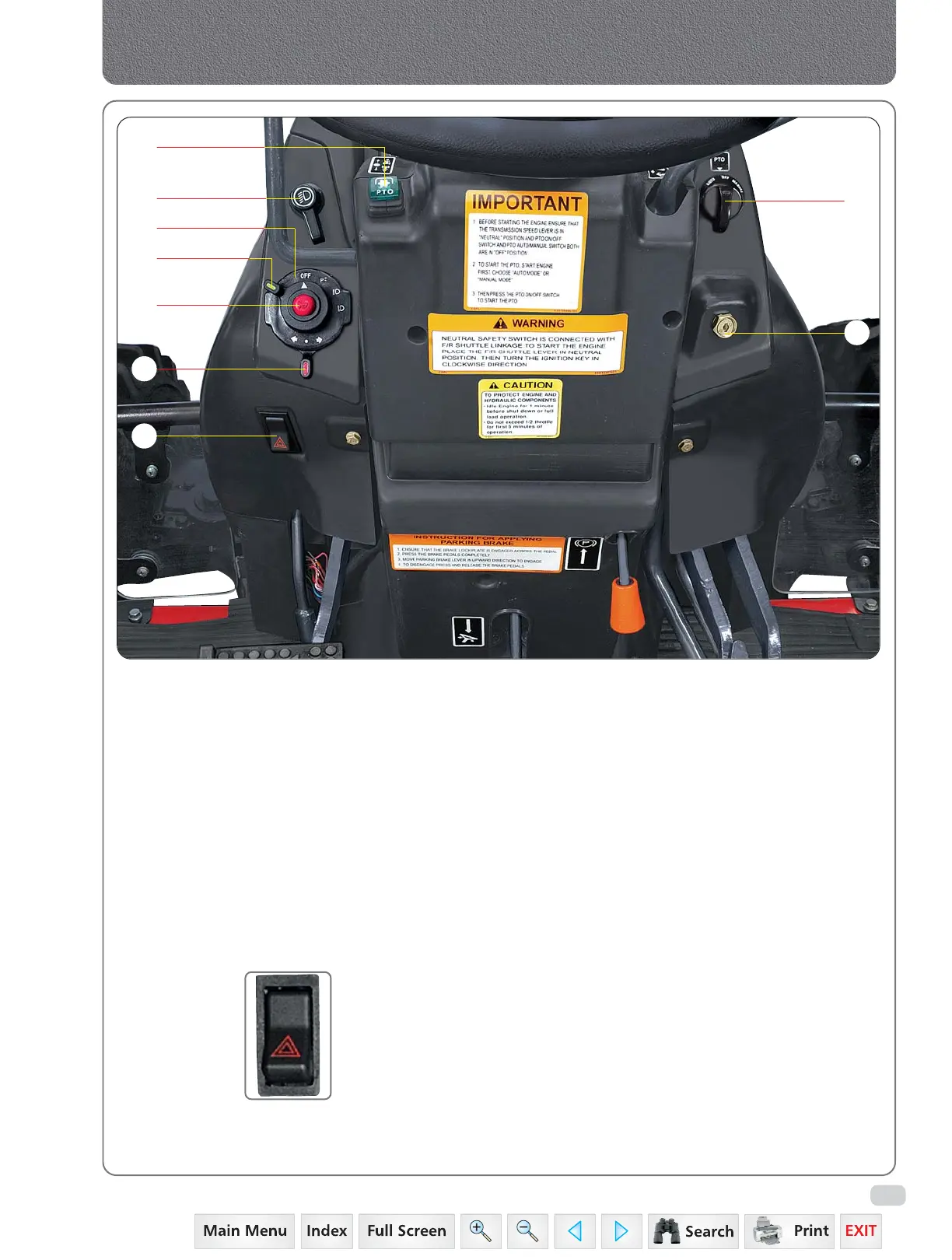

3. Switches
Following switches are provided for various operations.
1. PTO ON / OFF Switch
2. Plow Lamp Switch
3. Combination Switch
4. Light Switch
5. Horn Push Button
6. Turn Signal Switch
7. Hazard Switch
8. Starter Key Switch
9. PTO AUTO / MANUAL / OFF Switch
Hazard Switch
The piano type switch is located below the
combination switch in LH side of steering column on
dashboard.
ON position operates LH, RH turn signal lamps
simultaneously. This operation can be performed even
if the key switch is in OFF position.
