I-15
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Hydraulics
Maintaining fixed the levers (1) and (2) and with
a 13 mm open end wrench rotate slowly in an
anticlockwise direction the position control shaft
(5) so as to raise the arms to their maximum
raised position which is determined by the
internal hydraulic limit stop. Since during the
functioning of the position control the hydraulic
limit stop must not be triggered it is necessary
to have a safety margin of 10-15 mm.
In order to do this, rotate slowly in a clockwise
direction the shaft (5) until the arms are lowered
by the required safety margin.
At this point keep the shaft (5) fixed and with
lever (1) against the backstop (F) keep the lever
fixed with the shaft by tightening fully the
fastening screw (6).
To control, raise completely the arms by moving
the position control lever (1) (against the
backstop F), raising completely the draft control
lever (2) there is a further movement upwards
of the rockshaft arms. This movement should be
contained within 10-15 mm.

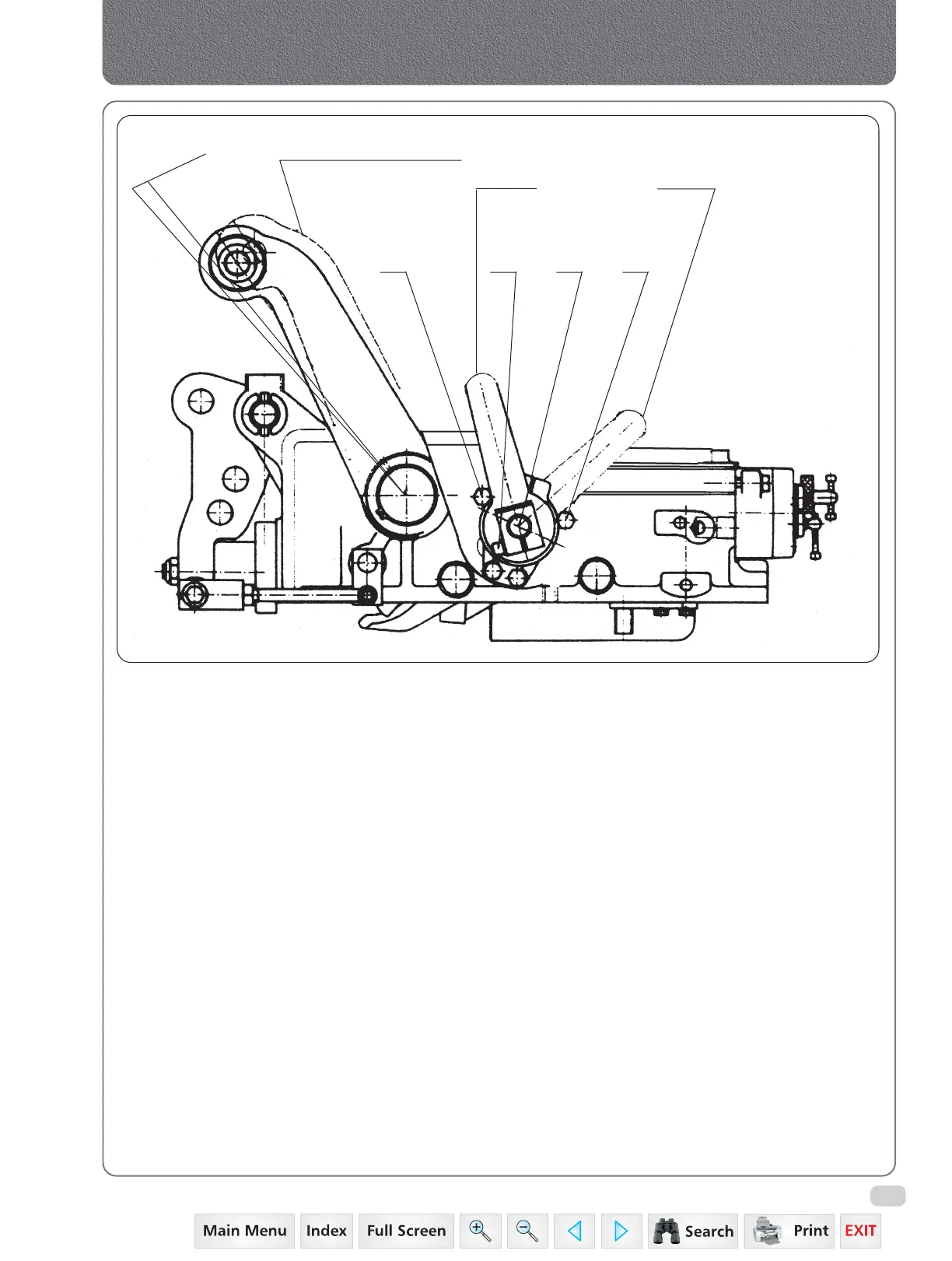

LEVER 2LEVER 1
HYDRAULIC LIFTING ARM
AT END OF STROKE
10-5mm
F 6 5 E
