I-27
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Hydraulics
13. REMOVE, INSPECT AND INSTALL HYDRAULIC
CONTROL LINKAGES
1. Remove Hydraulic Lift Unit as per the guided
procedure.
NOTE: To access links inside hydraulic lift
assembly, housing lift assembly must be
placed upside down.

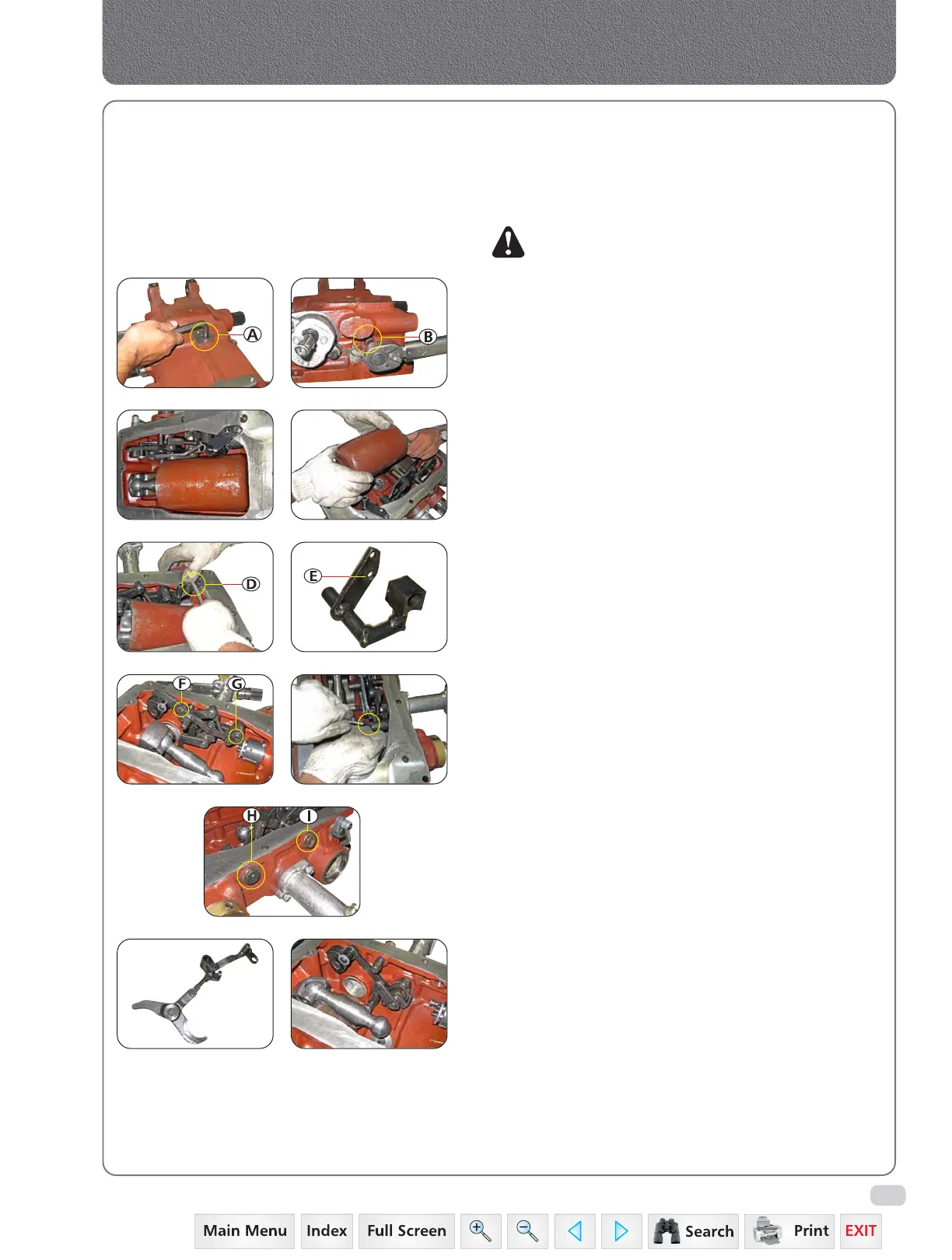

2. Remove cylinder by loosening two allen set
screws (A) & (B).
3. Remove cylinder from lift unit.
4. Loosen bolts (D) of bracket
lubrication (E) and take it out.
5. Remove snap ring (F) & (G).
6. Loosen pin (H) & (I) and take out cam,
compensator assembly and linkages.
