LOWERING COOLANT LEVEL
LOWERING COOLANT LEVELLOWERING COOLANT LEVEL
LOWERING COOLANT LEVEL
WARNING:
WARNING:WARNING:
WARNING: Coolant in the vehicle cooling system may be extremely hot and under great
Coolant in the vehicle cooling system may be extremely hot and under great Coolant in the vehicle cooling system may be extremely hot and under great
Coolant in the vehicle cooling system may be extremely hot and under great
pressure. Wear safety glasses and u
pressure. Wear safety glasses and upressure. Wear safety glasses and u
pressure. Wear safety glasses and use protective clothing and gloves. Use
se protective clothing and gloves. Use se protective clothing and gloves. Use
se protective clothing and gloves. Use
extreme caution when removing radiator cap and hoses.
extreme caution when removing radiator cap and hoses.extreme caution when removing radiator cap and hoses.
extreme caution when removing radiator cap and hoses.

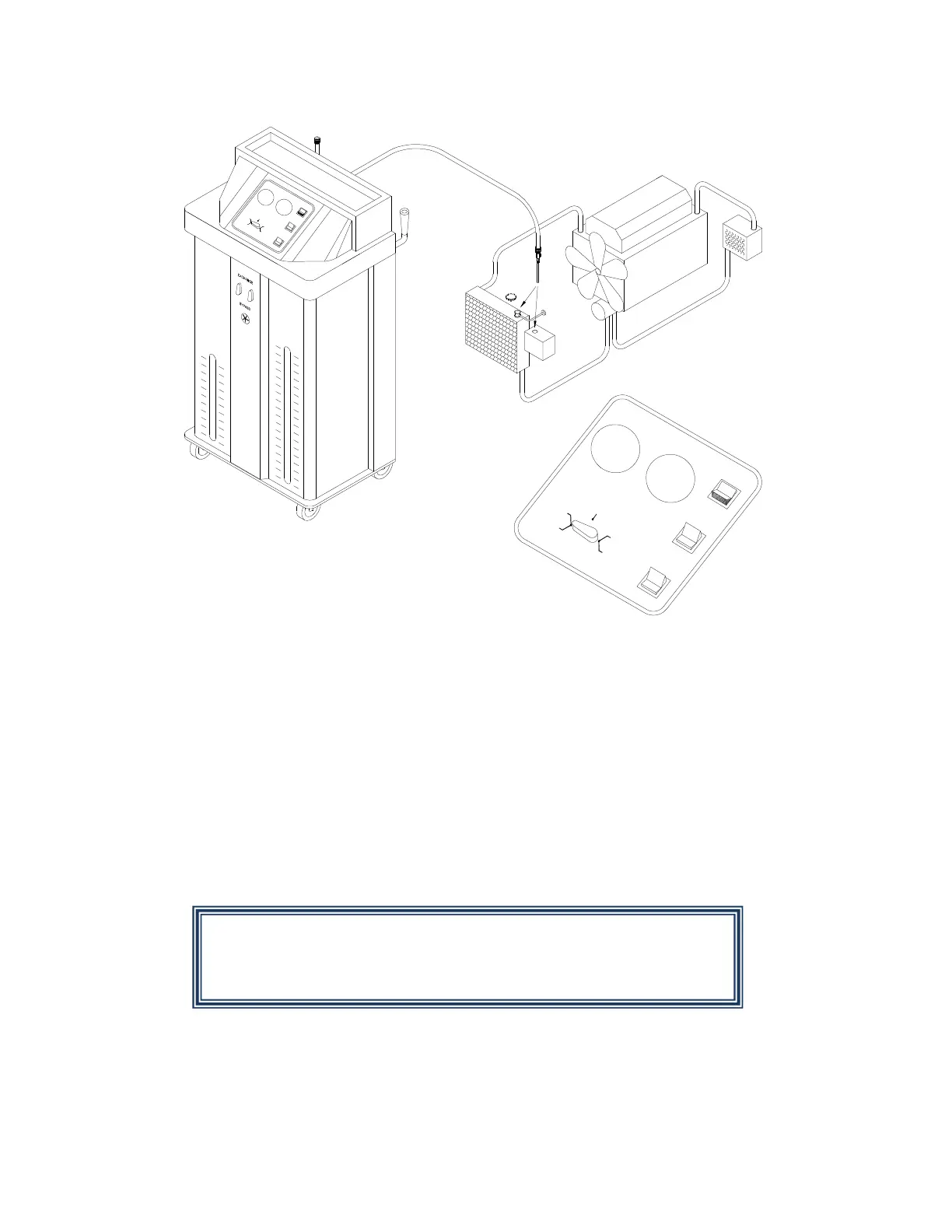

1. Turn both valves on front of MCX-2F to EXCHANGE.
2. Slowly and carefully remove the cap from the radiator.
3. Remove cap from overflow container.
4. Attach the wand to the black hose. Close the valve.
5. Turn control valve to LOWER RADIATOR & OVERFLOW.
6. Press the top of LOWER RADIATOR & OVERFLOW selector switch to turn on pump.
7. Use the Wand to empty the overflow container and lower the level of coolant in the radiator
to a level just below the upper hose connecting the radiator to the engine. Open valve on
wand as required.
8. Press bottom of LOWER RADIATOR & OVERFLOW selector switch to turn off pump.
9. Replace caps on the radiator and overflow container.
