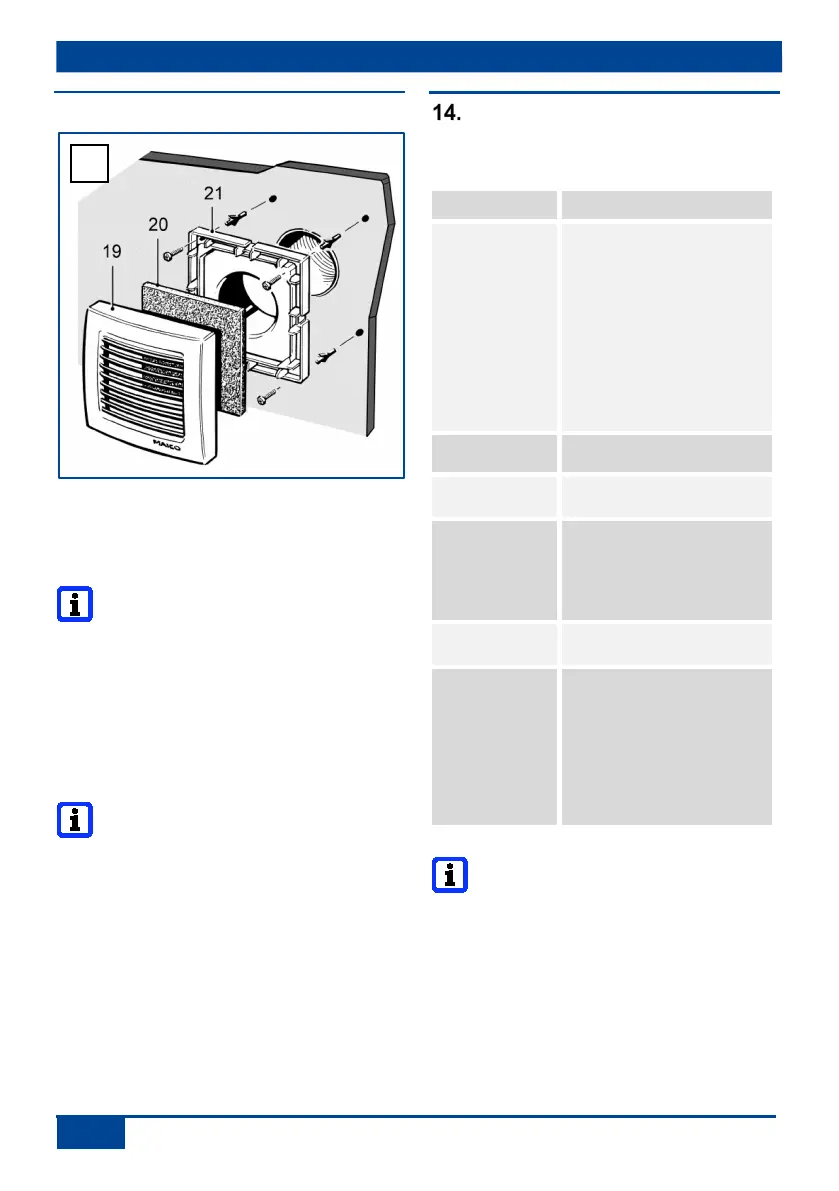

13. Cleaning/maintenance
16
13.2 Filter change, second room
19 Protective grille
20 Filter mat
21 Adapter
Filter change interval every
6 months, depending on the
degree of soiling.
1. Pull the protective grille [19] forwards.
2. Take out filter mat [20] and replace it.
3. Insert new filter mat into protective grille,
then press protective grille into correct
position on adapter [21] until it audibly
engages.
Filter mats ZRF:
Pack of 5, filter class G2 in
accordance with EN 779,
Art. no. 0093.0923
In case of questions, please contact:
Maico Elektroapparate-Fabrik GmbH
Steinbeisstraße 20
78056 Villingen-Schwenningen
Germany
Tel. +49 7720 694 445
Fax +49 7720 694 175
E-mail: ersatzteilservice@maico.de
Fault rectification
Fault finding and repairs only permissible
when carried out by trained specialists.
Fault Cause, measure
Fan output
inadequate
● Dirty filter.
Replace filter.
● Locking hook not
engaged. Engage fan insert
correctly.
● Incorrect duct diameter.
Check duct diameter of the
main duct.
● Supply air cross section
is too small. Increase the
supply air cross section.
No fan overrun
Connect the fan as per the
wiring diagram.
Fan doesn’t
start up
Check whether the fan
insert is correctly inserted.
Fan is
too loud
● Dirty filter.
Replace filter.
● Fan insert incorrectly
installed. Fit fan insert
correctly.
The main duct
is undersized
Re-calculate pressure losses.
Additional
consumers
connected to
terminal 4
Damage to the unit if
connected incorrectly.
Do not connect additional
consumers
to terminal 4.
The unit may only be
connected according to the
wiring diagrams in chap. 12.
If the fault persists or reoccurs:
Disconnect the fan completely from
the mains power supply. Have error
established and rectified by a trained
electrician. In case of questions
regarding fault rectification:
Service: +49 7720 6940.
