Maico PILOT TEST User Manual

Operation Manual PILOT TEST
8504660 Rev. 3
15
06/11/2019
Insert plugs with care into the appropriate connection. Do not
wiggle the plug or pull with force while connected. Disconnect
plugs cautiously. A device should always be off when inserting
or removing an accessory from the rear panel connectors.

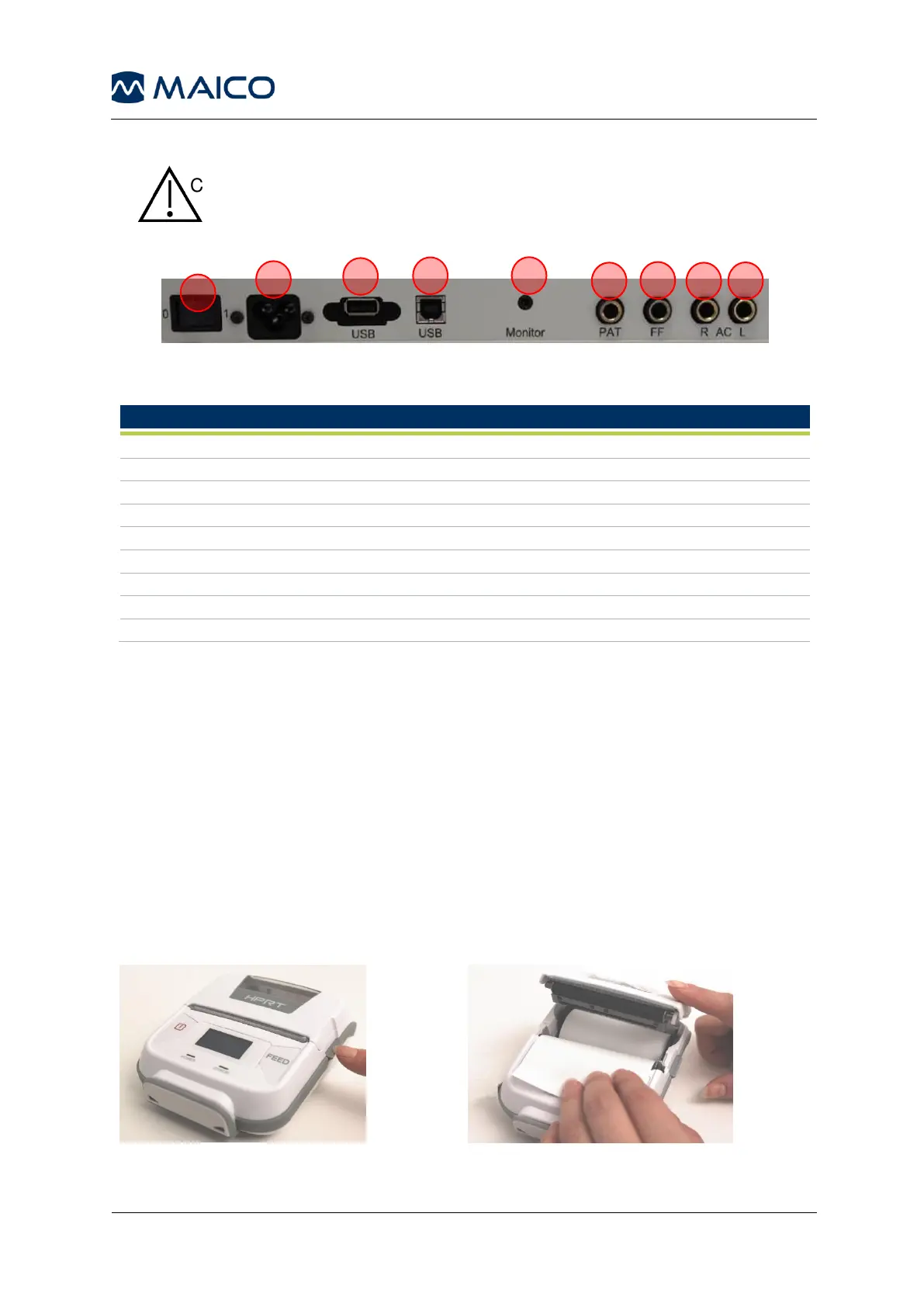

Figure 1
Table 5 Connections on Backside of Device
CONNECTIONS
1
Power switch (0 = Off, 1 = On)
2
Power socket for power supply
3
USB out for thermal printer
4
USB in/out
5
Connection for monitor phone
6
Connection for patient response switch
7
Connection for free-field loudspeaker
8
Connection for Headphones (R - Right/Red)
9
Connection for Headphones (L - Left/Blue)
4.2.3 Storage
When the PILOT TEST is not in use, store in a location where it will be safe from
damage to the display, acoustic transducers and cables. Store according to the
recommended temperature conditions described in section 6.
4.2.4 Thermal Printer
Connect the included USB cord to the printer and to the PILOT TEST device. Push
the power button for three seconds to power ON or OFF. Three short beeps will be
heard at power ON and OFF. Inactivity of the printer does turn printer OFF.
In order to change paper rolls:
• Push the marker on the right side of the thermal printer to open the printer cover (Figure 2).
• Insert a paper roll in the compartment with its loose end to the front of the printer.
• Hold the end of the printing paper and close the printer cover (Figure 3).
Figure 2
Figure 3
CAUTION
1
2
3
4
5
6
7
8
9
