Maiman Electronics SF8025, SF8075, SF8150, SF8300

27

26. Mechanical dimensions

All dimensions are in millimeters. You can download the 3D-model of the driver on

maimanelectronics.com in the downloads section of the product page.

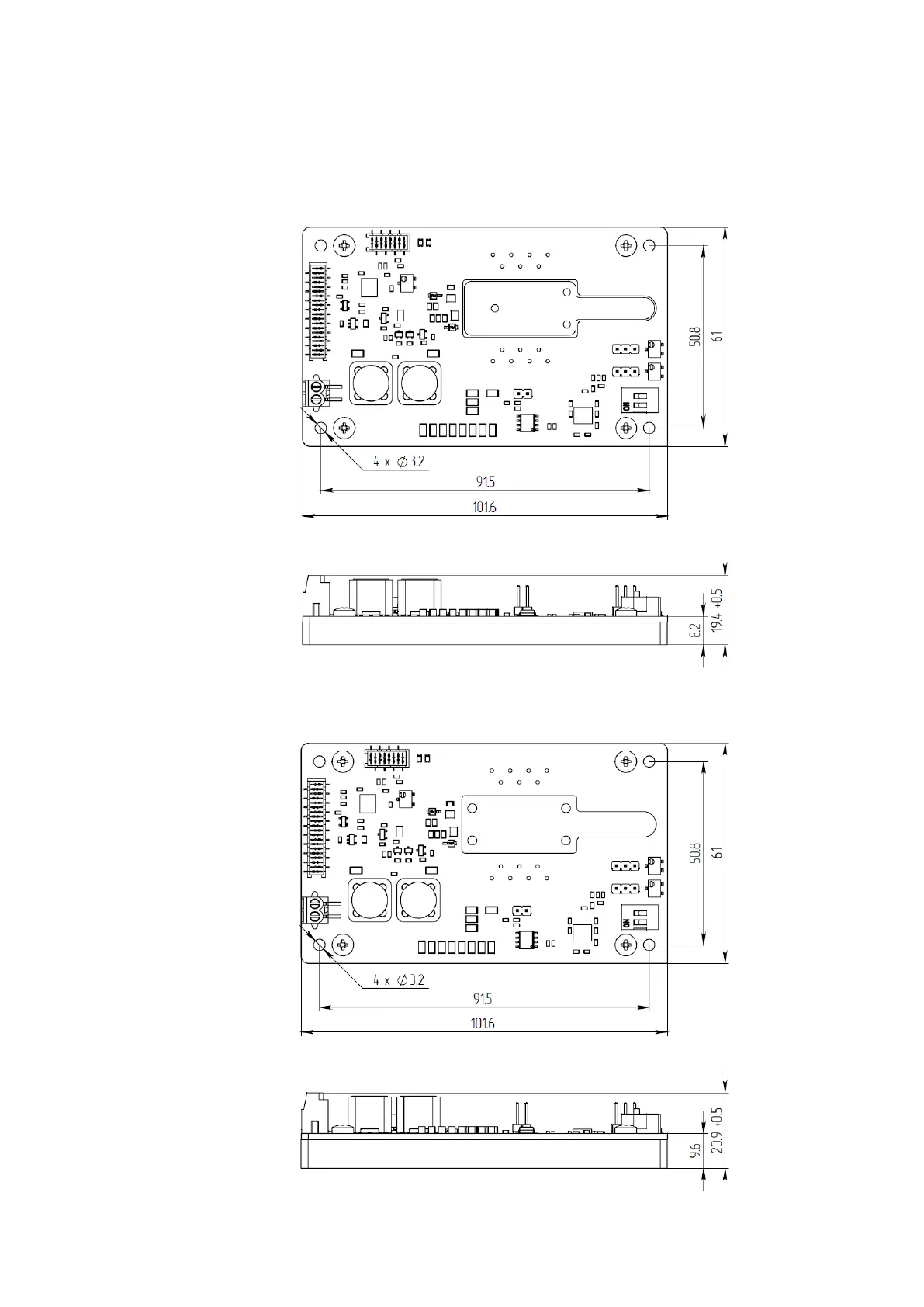

26.1. SF8xxx-10 model for soldering 10-pin Butterfly

26.2. SF8xxx-14 model for soldering 14-pin Butterfly
