Maiman Electronics SF8025, SF8075, SF8150, SF8300
7
150mA/div
500us/div

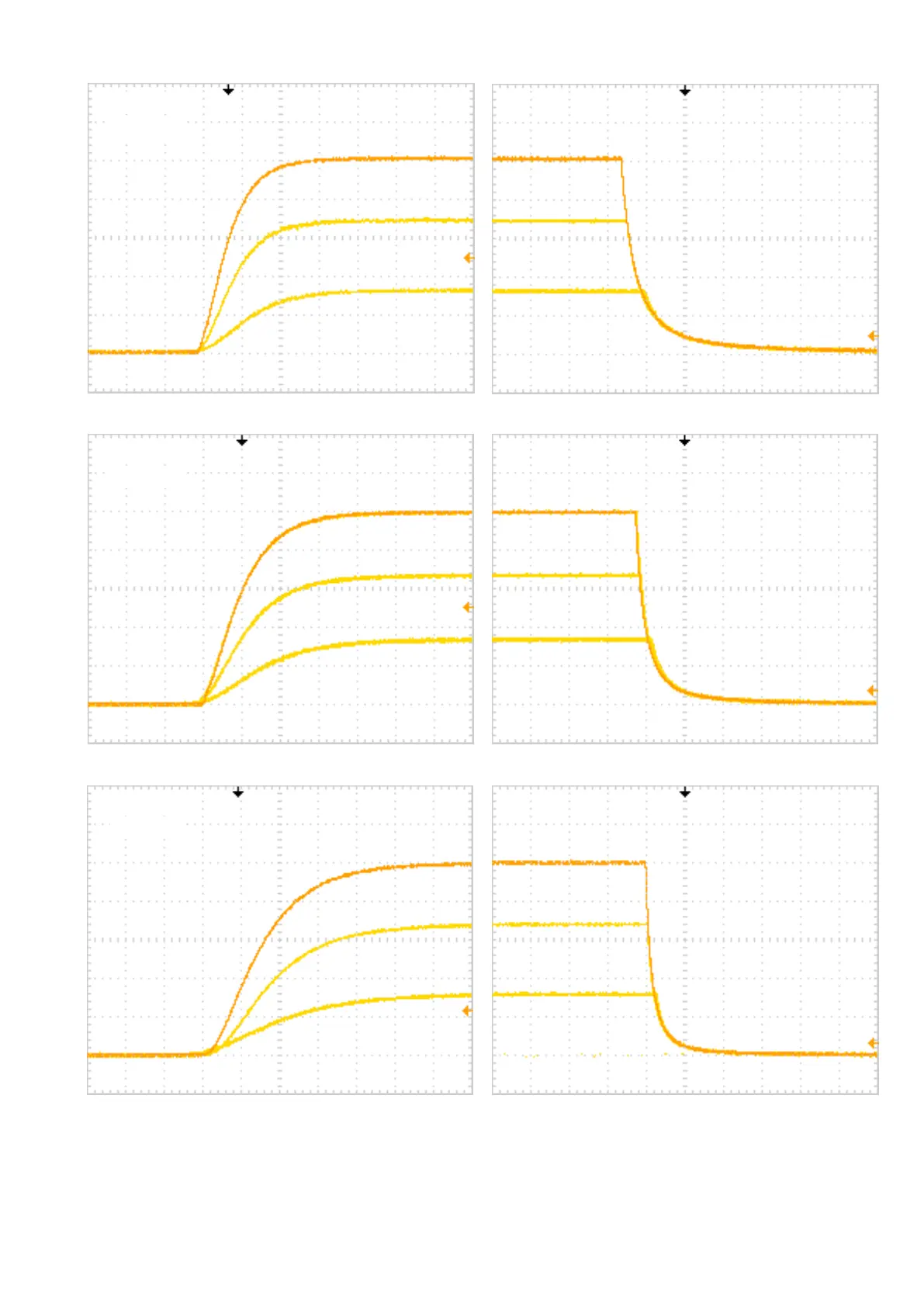

Fig. 3 – Typical start up sequence SF8075
Fig. 4 – Typical stop sequence SF8075
300mA/div
500us/div
Fig. 5 – Typical start up sequence SF8150
Fig. 6 – Typical stop sequence SF8150
600mA/div
500us/div
Fig. 7 – Typical start up sequence SF8300
Fig. 8 – Typical stop sequence SF8300
