Mainship 40 Trawler Single & Twin • AC Electric Systems
8.8

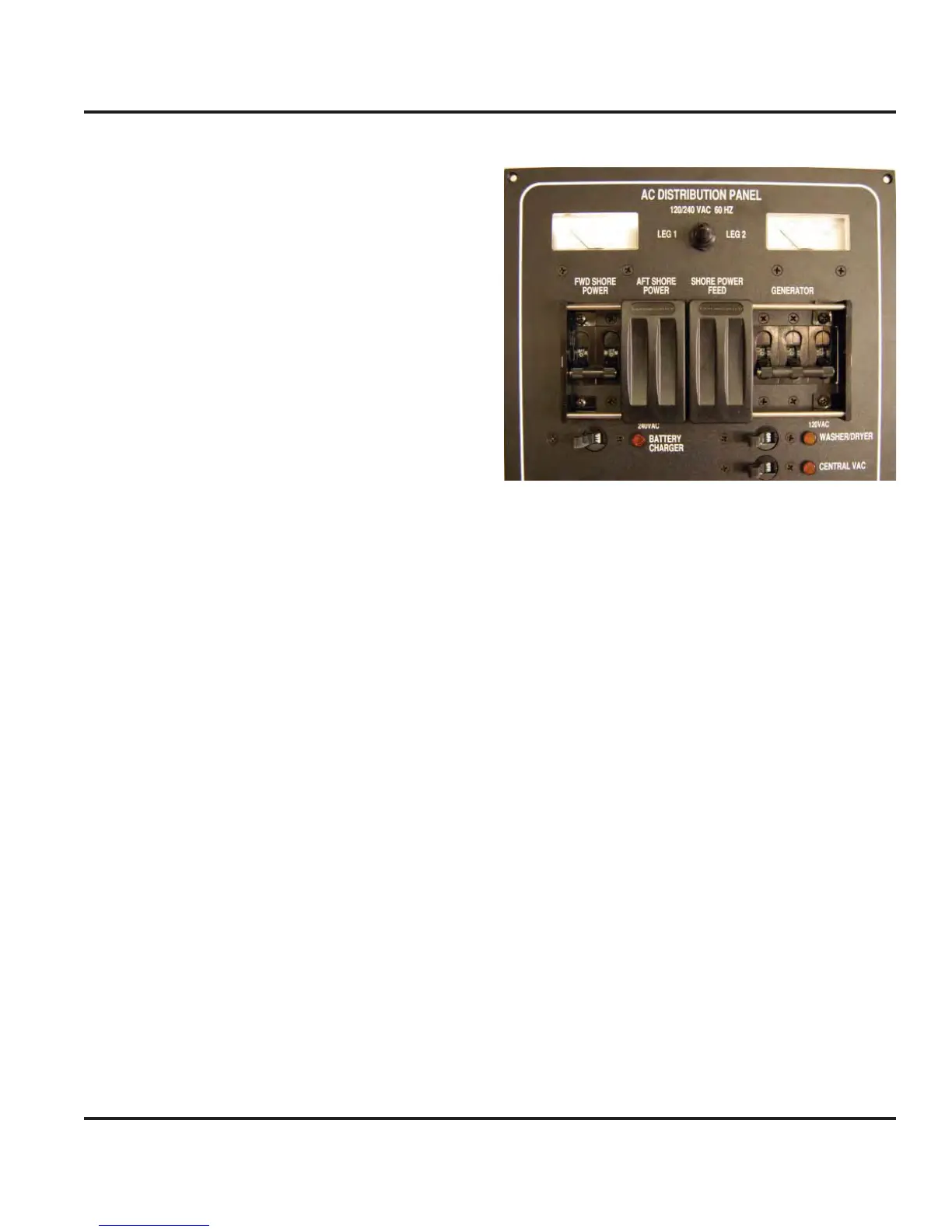

Details of photo from page 8.8, Fig. 8.5
Figure 8.6
Fig. 8.6 shows slide lock switch on the AC Distribution
Panel. With the slide lock it is not possible to energize
the generator power and the shore power together.
From the photo in Fig. 8.4, this is breaker # 4 and 7. In
the position shown this would be to energize generator
power.
1. AC Amp Indicator - allows you to monitor the amps
from the selected power source
2. Shore Power Selector Switch - allows you to select for-
ward or aft shore power supplies.
3. AC Volt Meter - allows you to monitor the volts being fed
from selected power source.
4. Fwd Shore Power Breaker
5. Aft Shore Power Breaker
6. Shore Power Feed Breaker
7. Generator Breaker
8.
Battery Charger
9. Stove Breaker
10. Water Heater Breaker
Note: see the section about
your water heater before energizing!
11. A/C Pump Breaker Note: be sure and read the sec-
tion on AC controls and operation before attempting to
run your Air Conditioning
12. Salon A/C Breaker
13. Fwd A/C Breaker
14. Bridge Stove Breaker
15. Washer/Dryer Breaker
16. Central Vac Breaker
17. AC Outlets #1 Breaker
18. AC Outlets #2 Breaker
19. Refrigerator Breaker
20. Microwave Breaker
21. Entertainment Breaker
