Majestic 39BDVR - Fireplace Dimensions

4
BDVR Series Direct Vent Gas Fireplace
10003357
Ref. 33BDVR 36BDVR 39BDVR 43BDVR
A 33” (838mm) 36” (914mm) 39” (991mm) 43” (1092mm)
B28⁷⁄₈” (733mm) 34¹⁄₄” (870mm) 34¹⁄₄” (870mm) 37” (940mm)
C 31” (787mm) 33” (838mm) 36” (914mm) 40” (1016mm)
D16³⁄₈” (416mm) 21” (533mm) 21” (533mm) 23¹⁄₂” (570mm)
E 22” (559mm) 24” (610mm) 24” (610mm) 31” (787mm)
F11¹⁄₂” (292mm) 16” (406mm) 16” (406mm) 16” (406mm)
G14³⁄₄” (375mm) 19” (483mm) 19” (483mm) 18³⁄₄” (476mm)
H20¹⁄₄” (515mm) 23⁷⁄₈” (606mm) 23⁷⁄₈” (606mm) 26⁵⁄₈” (676mm)
I23³⁄₄” (603mm) 27¹⁄₂” (699mm) 27³⁄₈” (695mm) 30¹⁄₈” (765mm)
J5”(127mm) 6³⁄₄” (171mm) 6¹⁄₄” (159mm) 5¹⁄₂” (140mm)
K7¹⁄₂” (191mm) 10” (254mm) 8³⁄₈” (213mm) 8¹⁄₄” (210mm)
L8¹⁄₂” (216mm) 13¹⁄₂” (343mm) 12¹⁄₂” (318mm) 12¹⁄₂” (318mm)
M1⁷⁄₈” (18mm) 1⁷⁄₈” (18mm) 1⁷⁄₈” (18mm) 1⁷⁄₈” (18mm)
Framing Dimensions
N 29” (737mm) 35” (889mm) 35” (889mm) 37³⁄₄” (959mm)
O33¹⁄₂” (851mm) 36¹⁄₂” (927mm) 39¹⁄₂” (1003mm) 43¹⁄₂”(1105mm)
P 12” (305mm) 16¹⁄₂” (419mm) 16¹⁄₂” (419mm) 16¹⁄₂” (419mm)
Q 51” (1295mm) 58⁷⁄₈“ (1495mm) 62¹⁄₄” (1581mm) 62³⁄₈” (1584mm)
R25¹⁄₂” (648mm) 29⁷⁄₈” (748mm) 31¹⁄₈” (790mm) 31¹⁄₄” (794mm)
S 36” (914mm) 41⁵⁄₈” (1057mm) 44” (1118mm) 44¹⁄₈”(1121mm)
Fireplace Dimensions
F
O - Rough Opening Width
Rough
Opening
Height
Rough
Opening
Depth
S
S
R
Q
P
E
I
H
J
D
A
C
N
B
K
L
G
M
J
Gas Line
Access
Gas Line
Access
Low
Voltage
Electrical
Access
Electrical
Access
C
L
Centerline of
7" Collar

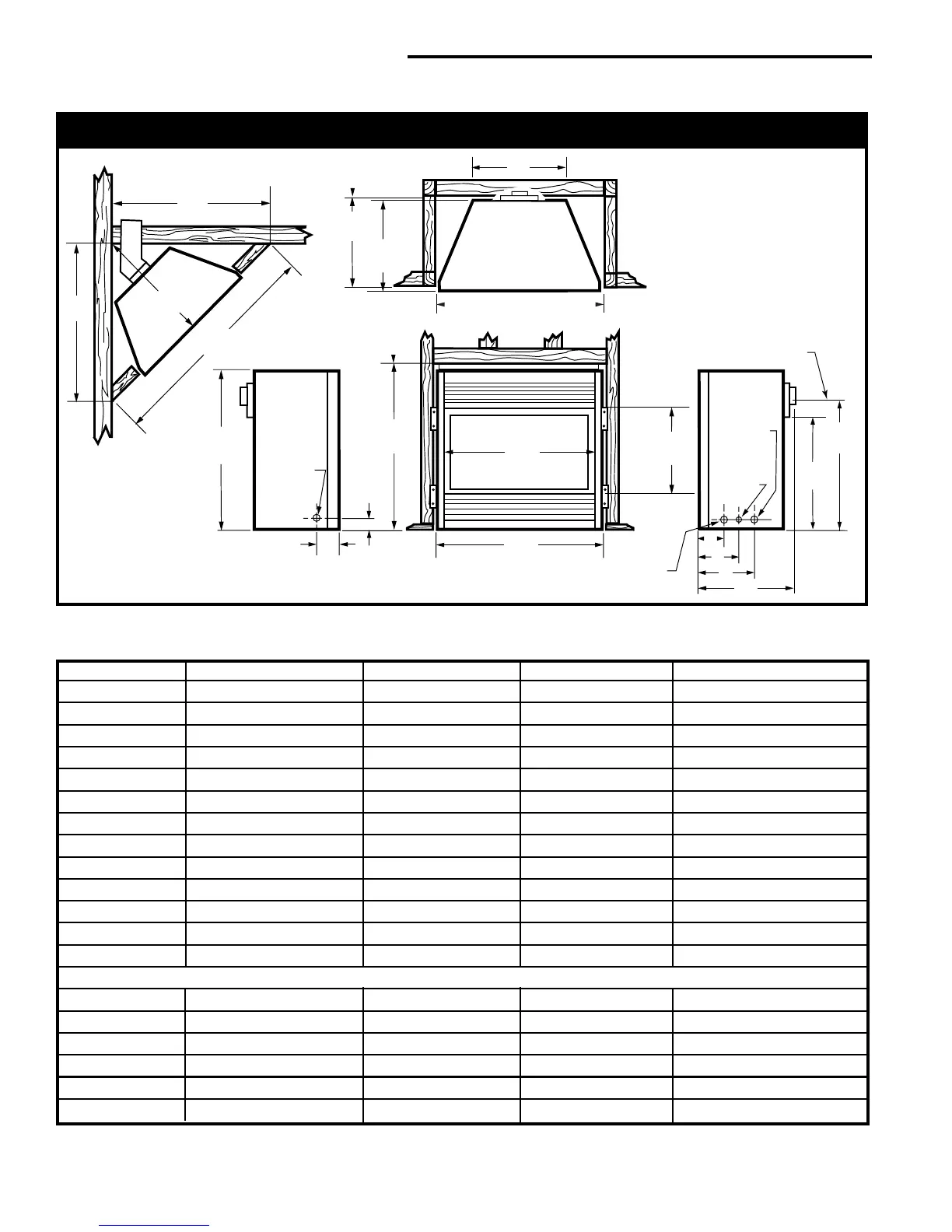

Fig. 2 Fireplace specifications and framing dimensions.
