Fuel Distributor Line/Manifold Line
Repair / Disassembly and reassembly
A5.05. 07.15.01.00
M20
en / 21.07.93 IB002028 2/2
07
2. Reassembly

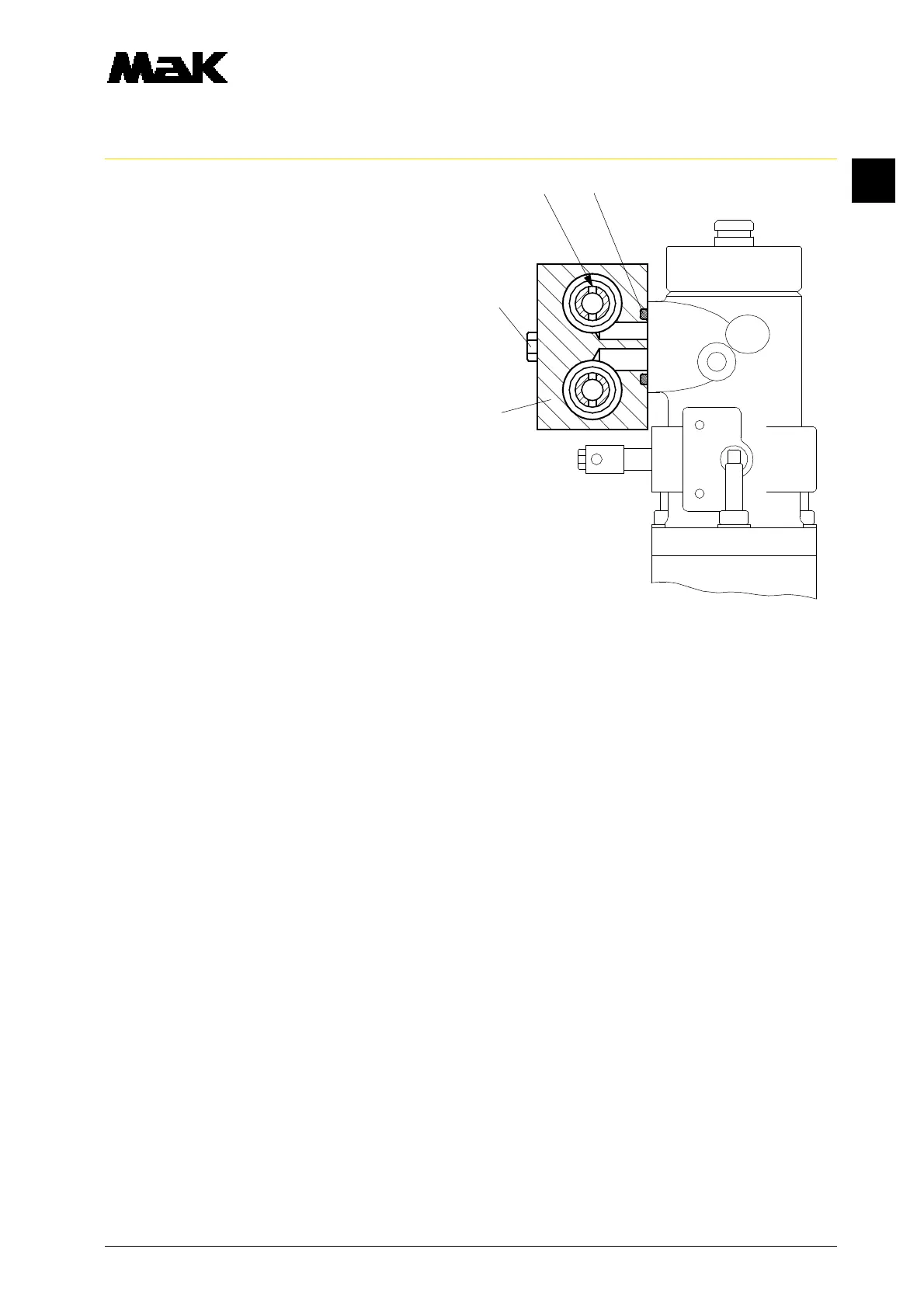

2.1 Clean faces at distributor housing (3).
2.2 Insert new O-rings (5).
2.3 Check bore (6) in equalizer for passage.
2.4 Insert and reassemble equalizer (4) in dis-
tributor housing (3).
2.5 Insert screws (1) with Molykote paste “G-
Rapid Plus” and tighten them with a
Torque = 50 Nm.
2.6 Insert screws (2) with Molykote paste “G-
Rapid Plus” and tighten them with a
Torque = 34 Nm.
2.7 Replace covering.
6 5
3
1
Z
