Fuel / Fuel collector rail
Repair / Disassembly and reassembly
A5.05. 07.15.01.01
M20
en / 30.09.2010 IB003978 1/2
07
See also: A5.05.07.02.01.nn
Spare parts list: B1.05.07.2.8510
Time requirement: 1 Pers./ 1,00 h
Personnel qualification: skilled engine hand
--------------------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
Helpful resource:
Green soft soap**
** or a similar quality product
Sequence of work:
1. Disassembly

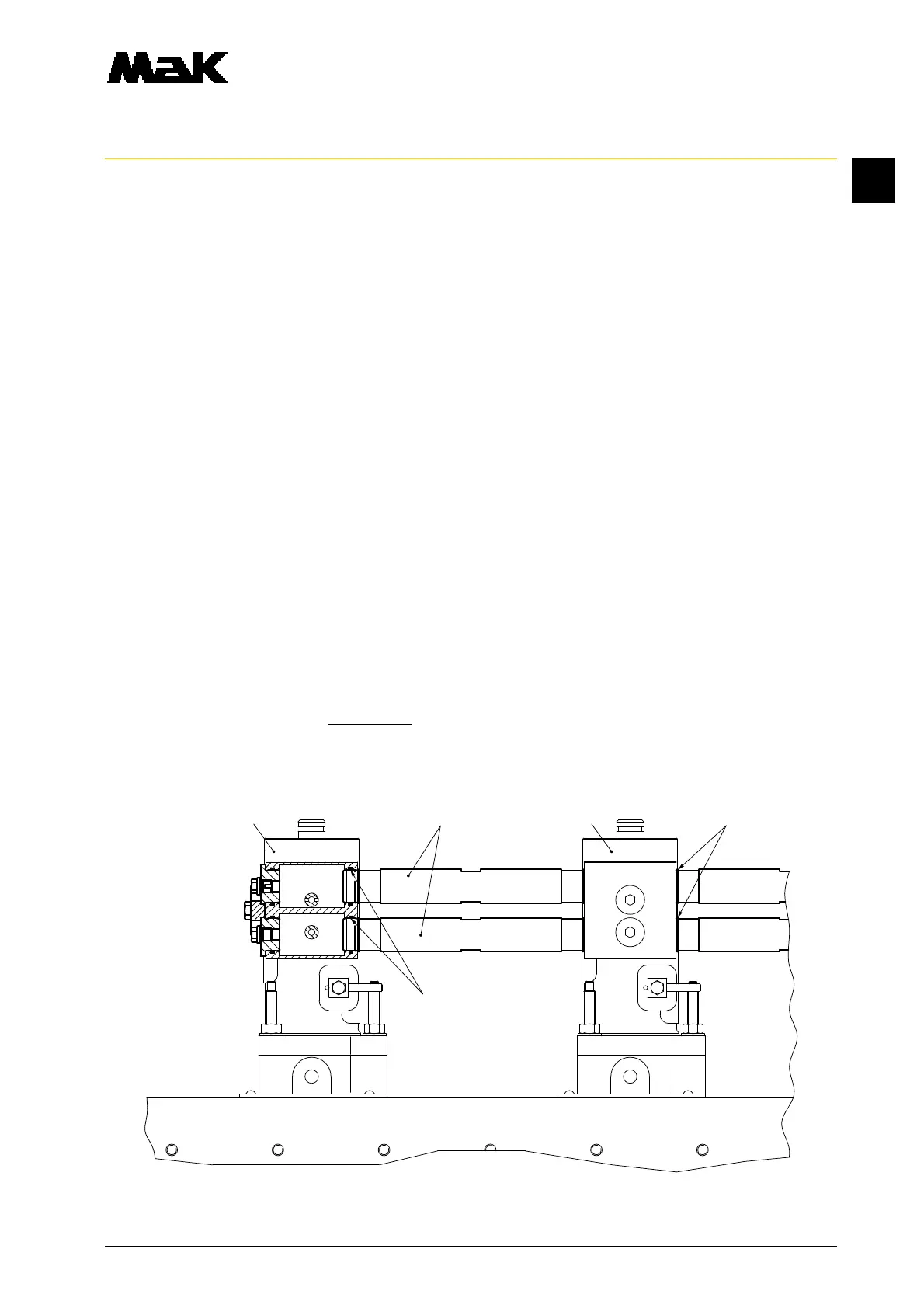

1.1 Empty fuel and fuel collector rail (2)
(Drainage tap on anti-drive end over fuel double filter).
1.2 Dismantle covering.
1.3 Only detach retaining ring (1) on one side.
1.4 Push fuel pipes (2) into the fuel pump (5) until they stop.
1.5 Fuel pump (3) detach (07.02.01.nn).
1.6 Pull fuel pipes (2) out of the pump (5).
