MAKE MENDEL Page 20

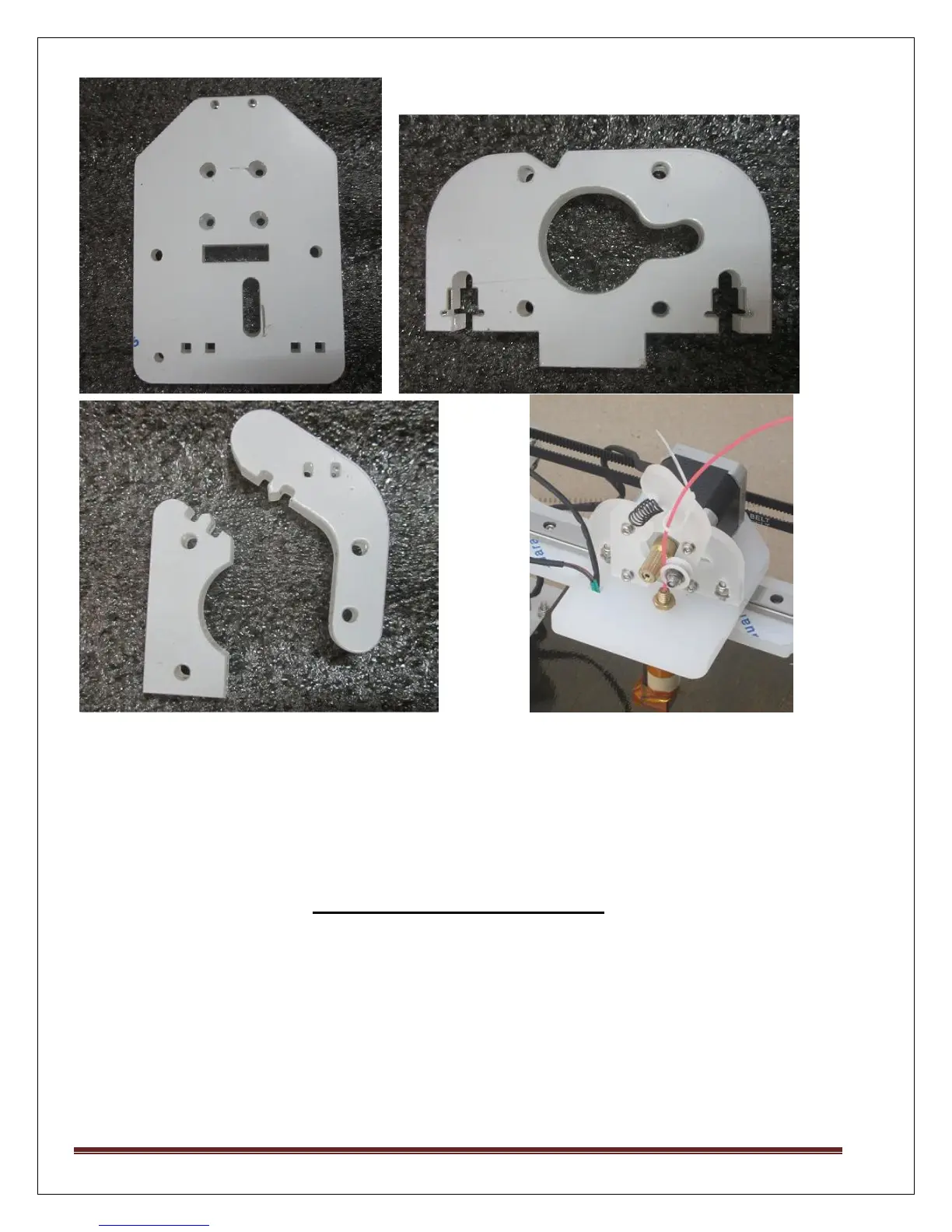

2. Attach the Extruder base plate on the Rail Block.
3. Pass the T2.5 belt through the Pulley and Belt Adjuster.
Step 5: Assembly of Rods
1. Put the 2 Threaded rods inside the FlangeNut.
2. Place X-Axis inside the structure, by putting the bottom of the Threaded Rod inside the
Coupling.
3. Put the smooth rod inside the Flange Bearings. Use Caps Part no. 4,5,15 &16).
To Next Page
