MAKE MENDEL Page 21

Step 6: Printbed assembly

1. Wiring of Heater Blocks :

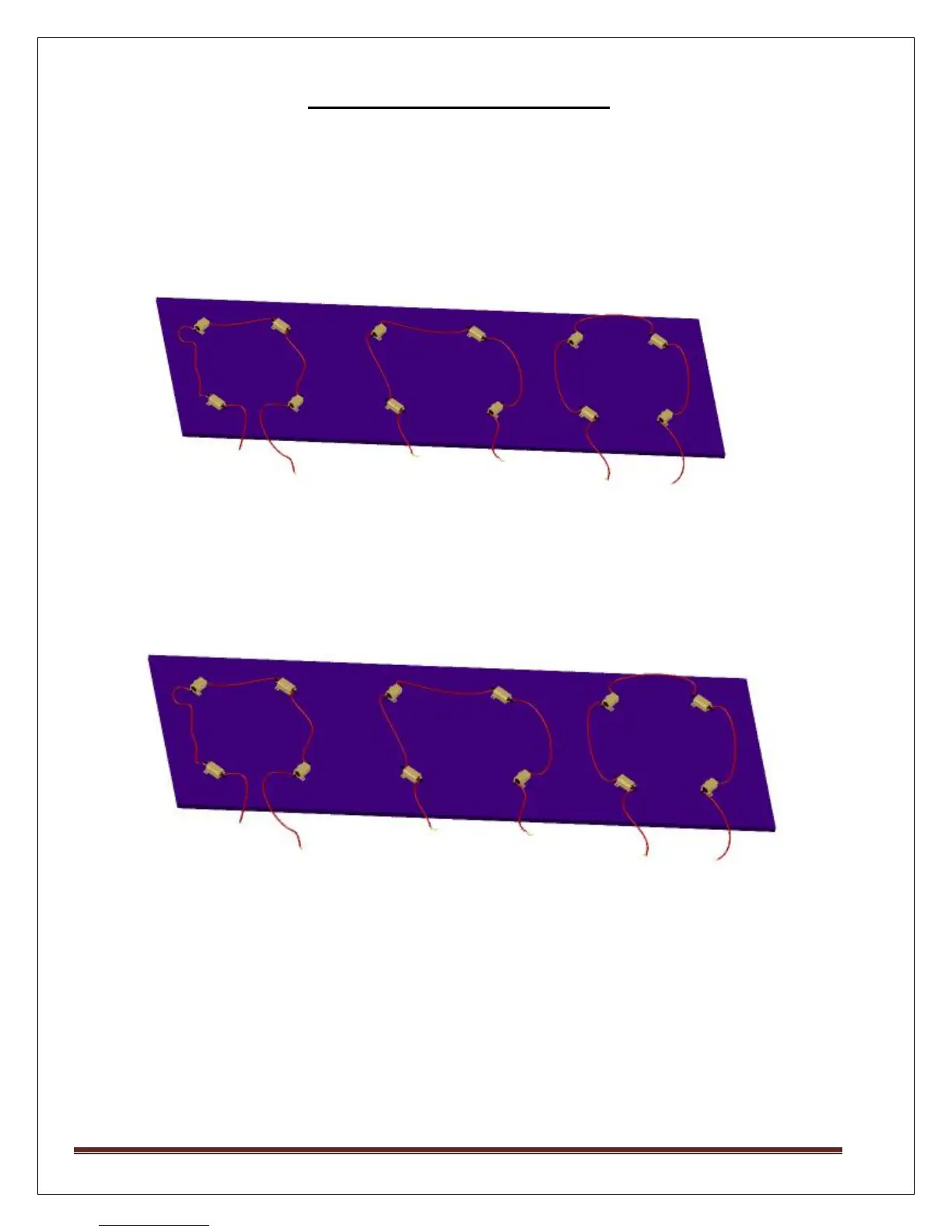

 First Place all the Heater blocks on Printbed as shown below. There are total 12 Heater

Blocks. Make 3 set of 4 heater blocks in each set.

 Now connect each set of heater block in series. Leave one side of each set open for further

connection.

2. Solder wires of SET 1 with the 4 pin molex connector which will go to Printrboard.

SET 1

SET 2

SET 3

Solder to 4 Pin Molex connector.
