MAKE MENDEL Page 22

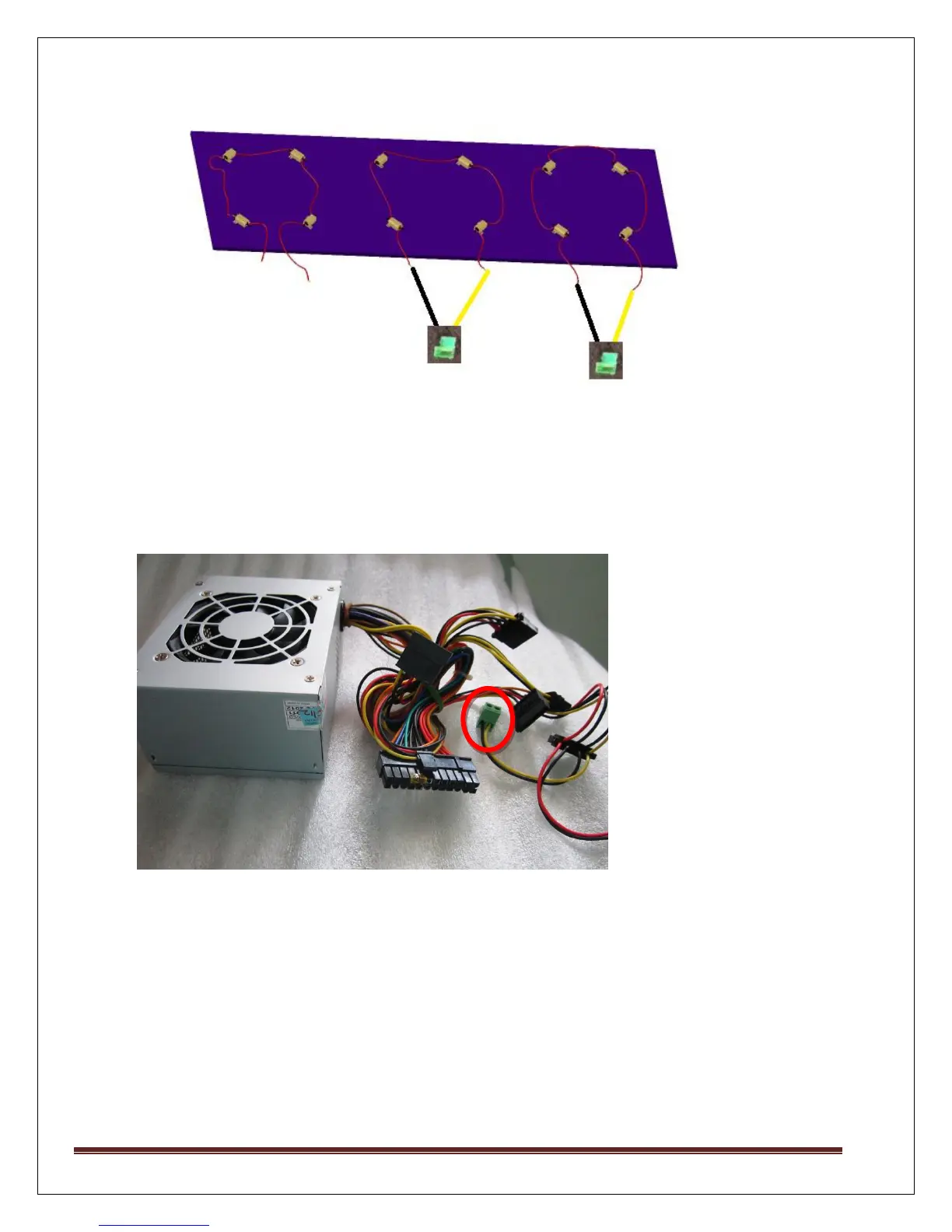

3. Solder the wires SET 2 and SET 3 to the female green connector given each.

4. In the ATX power supply cut yellow and black wires and solder it to male green connector given.

5. Now connect SET 2 & 3 female connector to the each male connector of ATX power supply.
