MAKE MENDEL Page 23

6. Place each thermistor at the centre of SET 1&2, SET 2&3 , and fix using kapton Tape.

7. Another ends of both the thermistors solder together to the 2 pin connector, which will go to

printrboard.

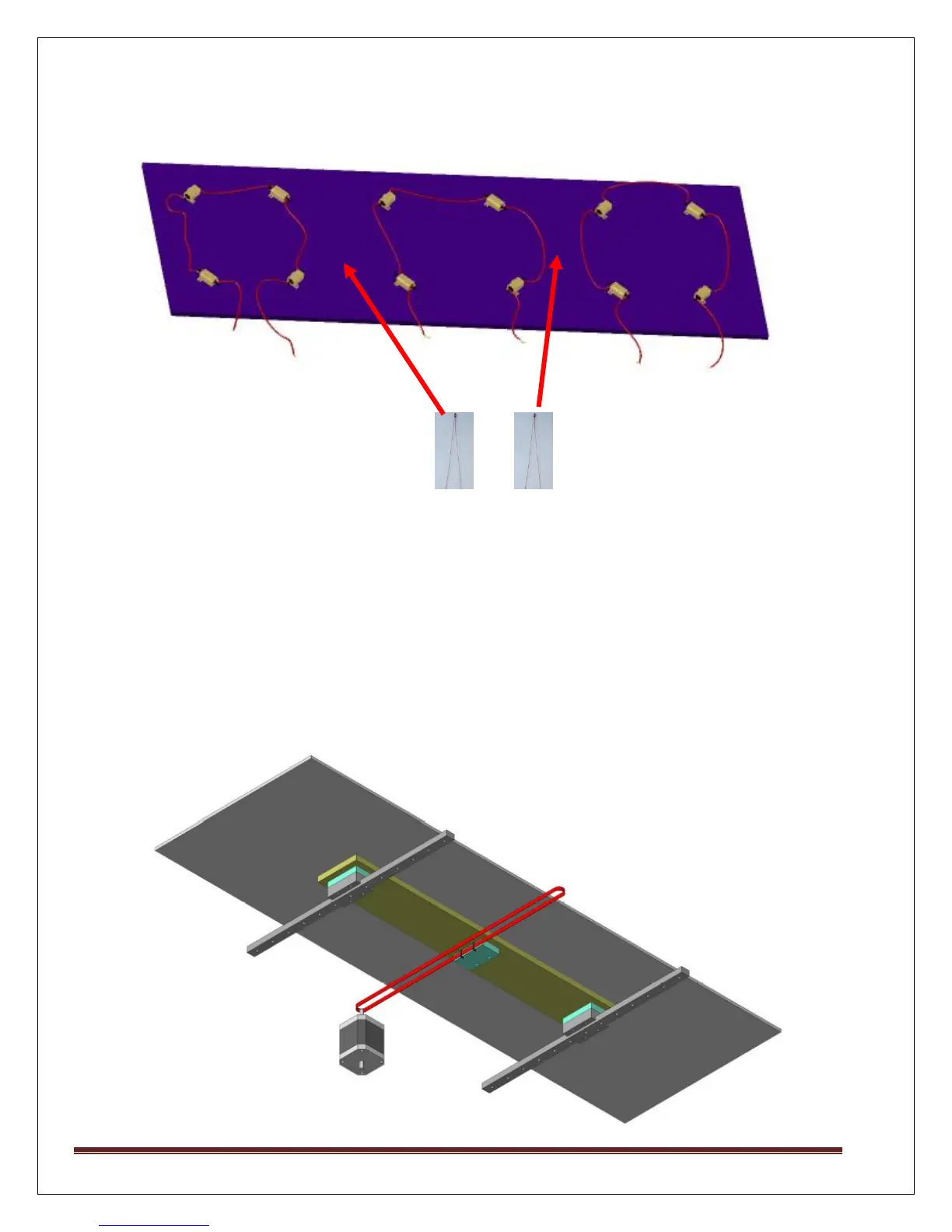

Final view of Printbed.

Solder wires of both thermistors to each other and

connect it to 2 pin connector which will go to Printrboard.
