MAKE MENDEL Page 24
STEP 7: Electrical wiring (Printrboard REV D)
Place PrintrBoard on Acrylic Board with Cap Screw M3x12

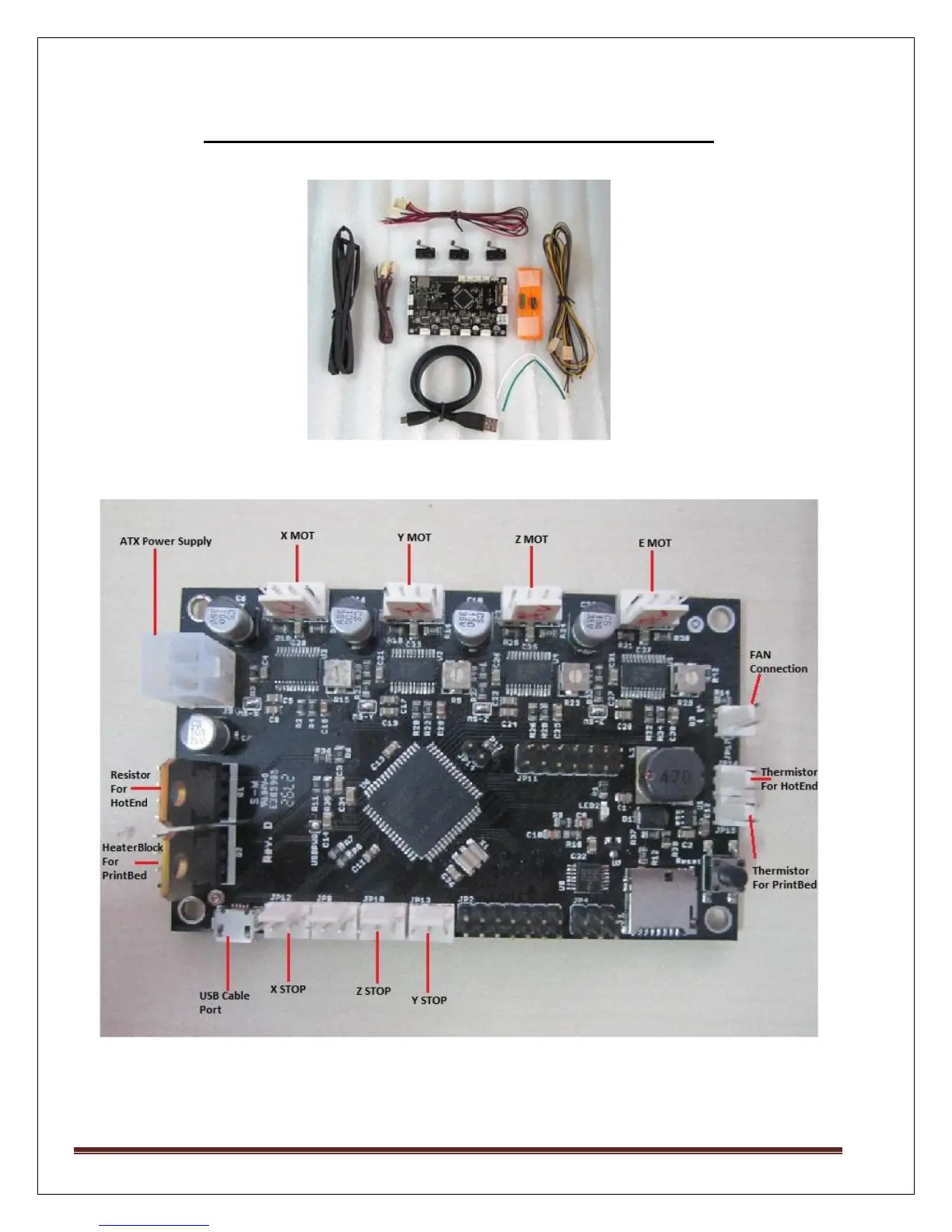

Cable connection on Printrboard.
