Makeblock Starter Robot Kit - Wiring and Remote Control; Wiring Diagram; Working with Remote Control

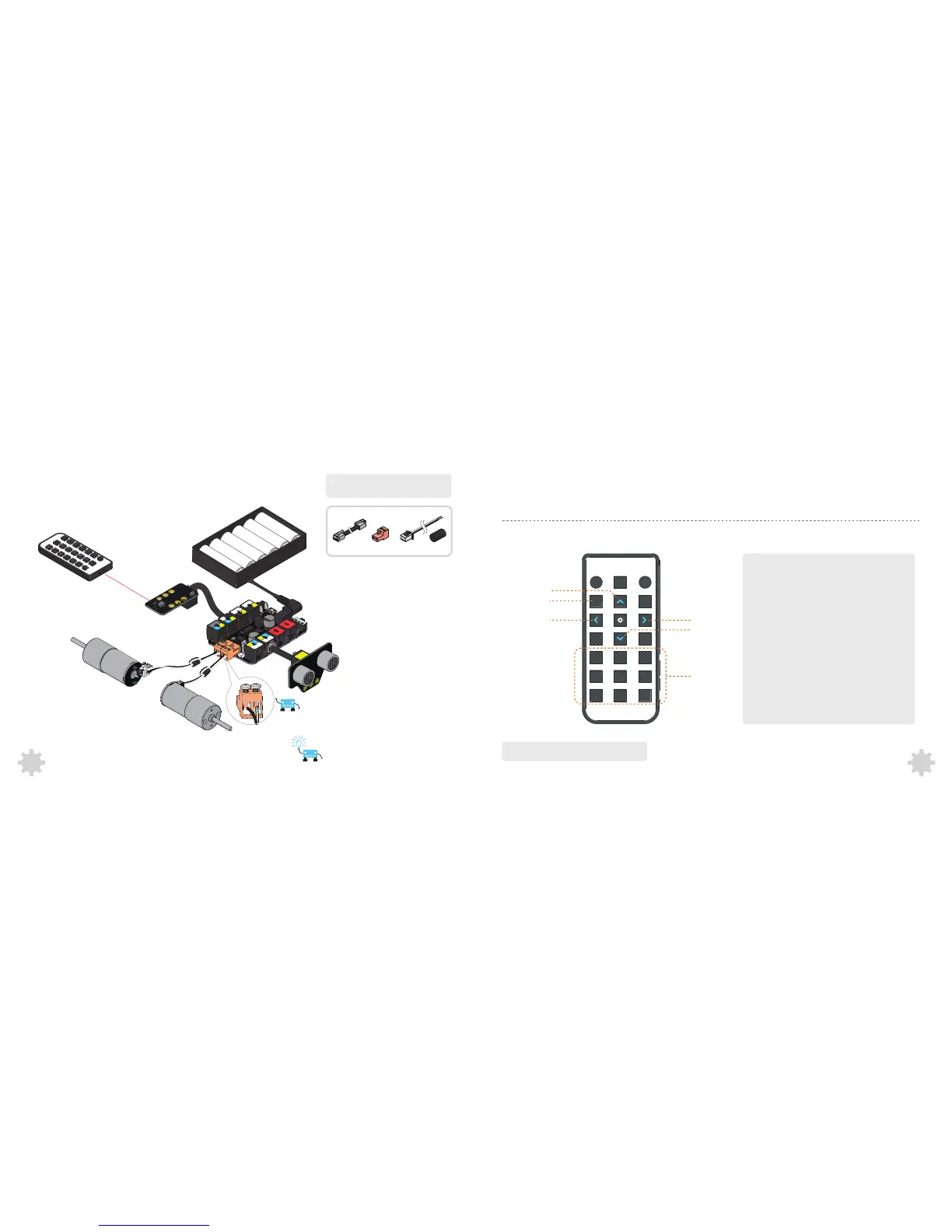

Wiring
You may need to switch the order of two
wires to correct the rotation direction.
Me IR Remote Control(CR2025 battery,not included)
Me Infrared Receiver Sensor
Me Ultrasonic Sensor
?
DC Motor-25(M2)
DC Motor-25(M1)
Makeblock Orion
Battery Holder( 6 x AA batteries , )not included
Working with remote control
1
2
3
4
5
6
7 8 9
0
F
ED
A B C
Right
Backward
Speed
Forward
Switch mode
Left
––Construct It Once, Control It Everywhere
12
11
To reduce the electromagnetic interference, please
add ferrite ring for the wires which connected to
motors.
Remote control :
Press key D to switch modes
Manual mode :
Press direction keys for car direction and
number keys for speed.
Ultrasonic obstacle avoidance mode:
The car will run and avoid obstacle
automatically. No response when press
any keys until you switch mode.
Now it’s time to play your robot!
2×
2×
2× 2×
