MAKELSAN BOXER BX3320 - Internal Battery Configuration

BOXER SERIES10-20 KVA INSTALLATION
AG-SD-109 Publishing Date: 13.10.2015 Revision No: 0 Rev. Date:
3.1.3.2 Configuration of Internal Batteries
The 10-20 kVA UPS can be configured through 64 4,5Ah, 7Ah or 9Ah standard batteries as seen
in the following table:
BOXER INTERNAL BATTERY USAGE TABLE
Device Power (KVA)
10
15
20
Series Battery Number
31
31
31
Battery Group
2
2
2
Total Battery Number
62
62
62
I_bat.max @V_bat_cutoff(A)
12,5
18,8
25,1
Recommended Internal Fuse (A)
20
32
40
Recommended Rear Cover Fuse(A)
20
32
40
* These cells are battery configurations recommended.
*Type being able to perform fast and semi-conductor protection is used in battery fuses.

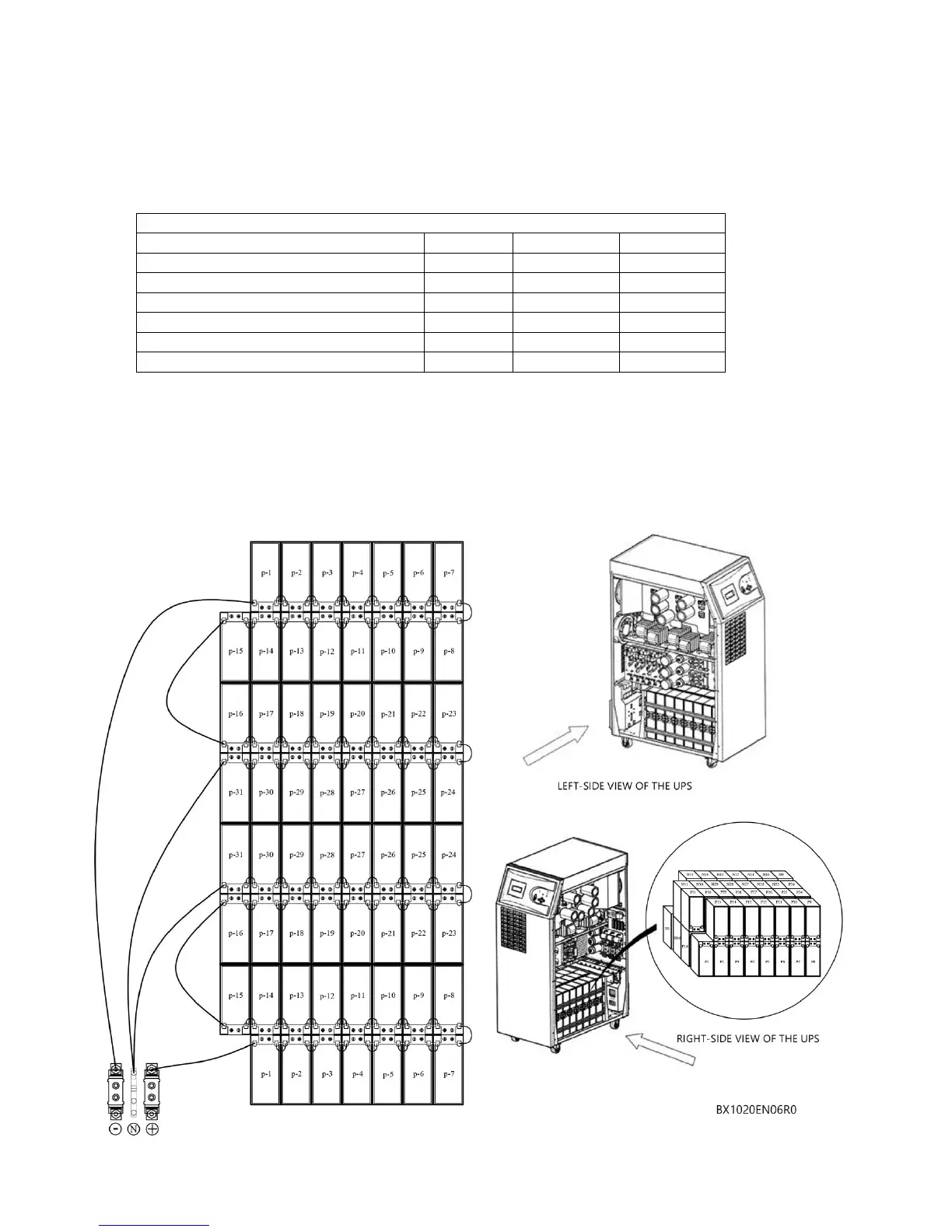

Positioning forms of 7/9 Ah and 4, 5 Ah batteries inside the UPS can be seen in detail in the
following figures:
