Makita 9558HN Technical Information

Wiring diagram
P 8/ 8

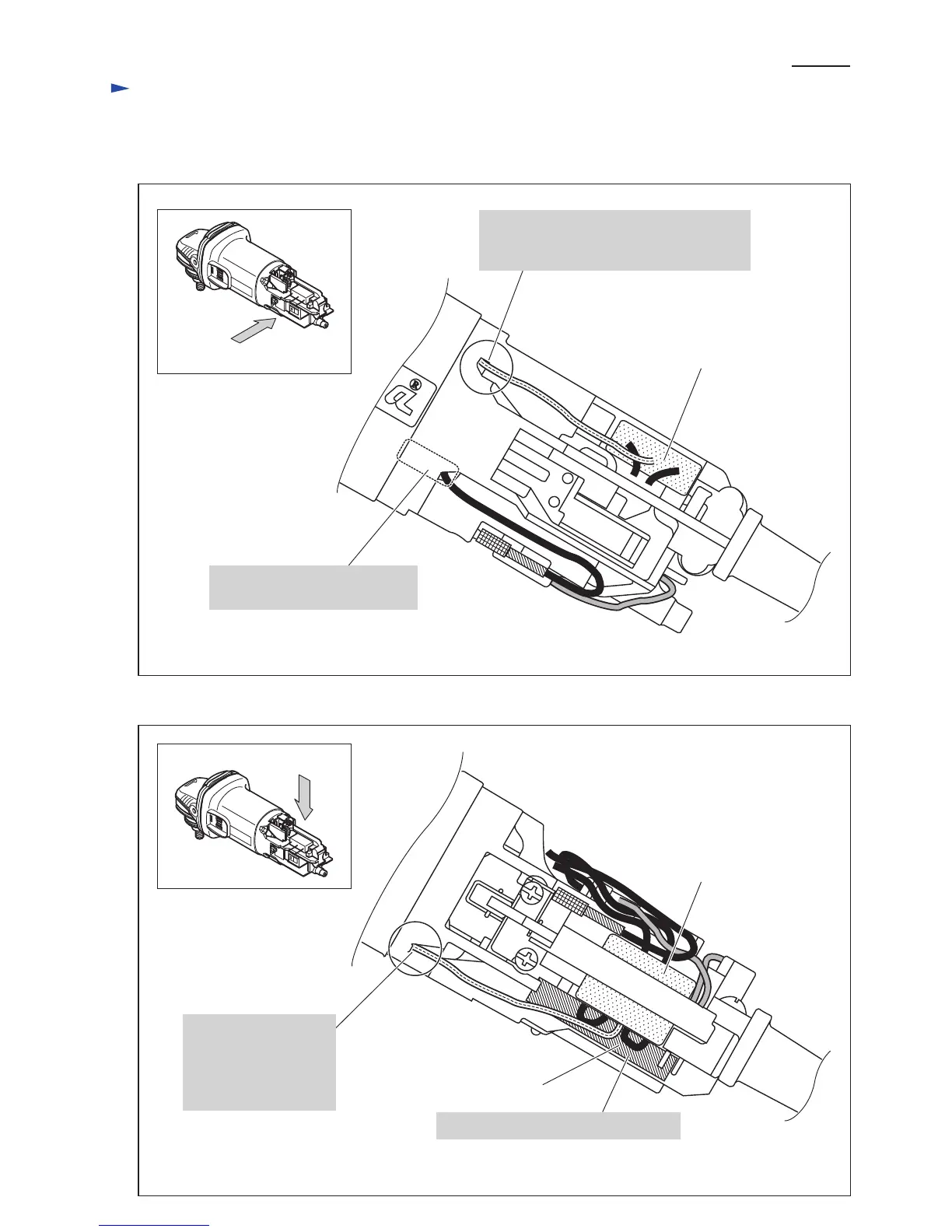

[2] Wiring of Field Lead Wires in the Rear of Motor Housing (cont.)
[2] -3. Left Side
[2] -4. Top
Fig. 15
Fig. 16
*Some countries do not use noise suppressor.
*Some countries do not use noise suppressor.
**Some countries do not use sensormatic tag.
Sensor-matic tag
(anti-theft tag)
Noise suppressor*
Put Sensor-matic tag** in this space.
Noise suppressor*
Make sure that Field lead wires
are tight in Motor housing.
Left side view
Top view
Earth terminal on the lead wire (clear)
of Noise suppressor* has to be connected
to this portion.
Earth terminal on
the lead wire (clear)
of Noise suppressor*
has to be connected
to this portion.

Makita 9558HN Specifications

General

Input power	840 W
Cable length	2.5 m
Power source	AC
Spindle thread	M14
Idle speed (max)	11000 RPM
Grinding disc diameter	125 mm
Product color	Black, Green, Silver

Weight and Dimensions

Width	139 mm
Height	106 mm
Length	271 mm
Weight	2100 g
