Makita EA3200S Instruction Manual

10
2 31
4
6
5
7
9
1314
1112 10
8
1615
17 18
19
20
22
23
21
2425
26
1 Handle
2 Cover
3 Hood lock
4 Tubular handle
5 Hand guard (release for chain brake)
6 Muer
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catcher
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Fuel pump (Primer)
14 Identication plate

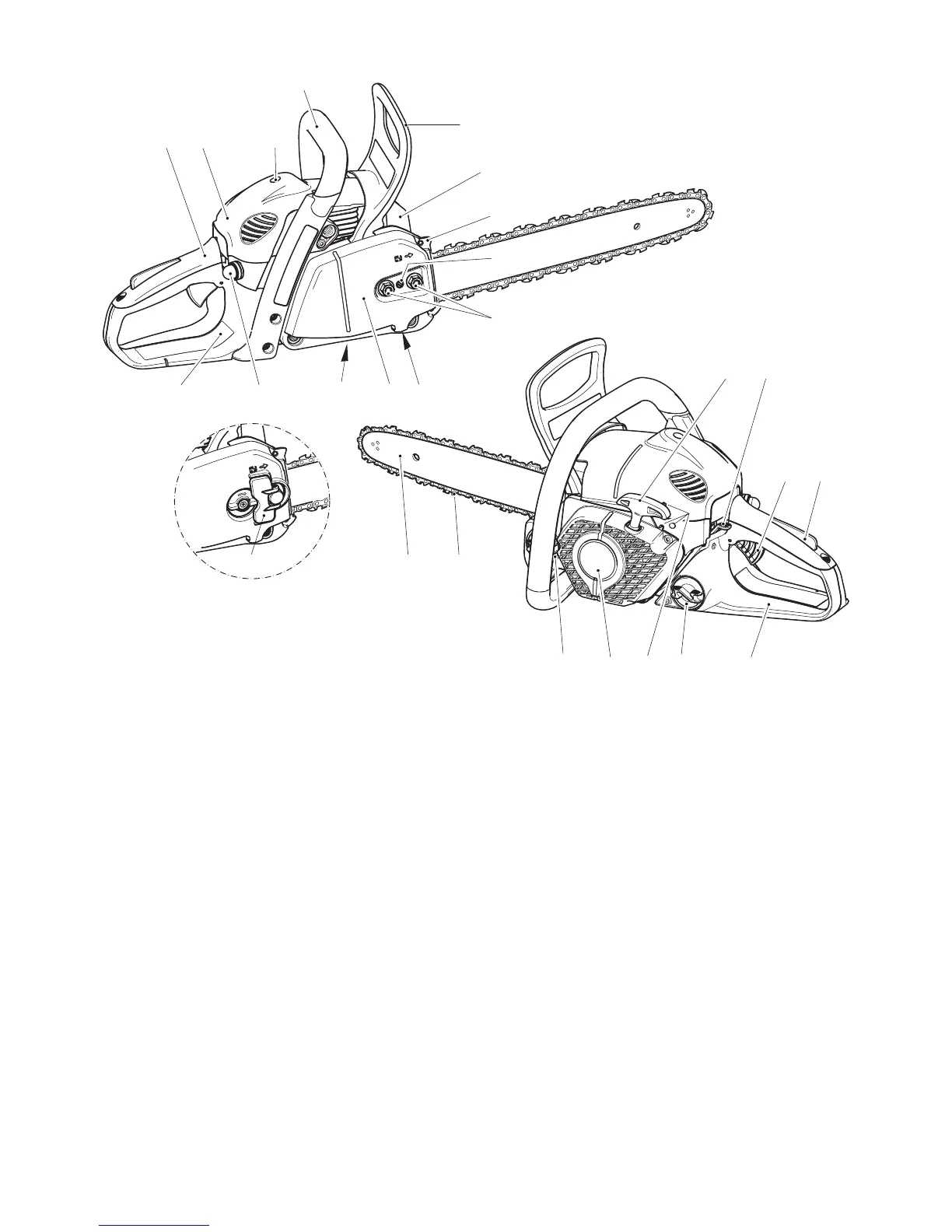

Denomination of components
15 Starter grip
16 Combination switch (Choke / ON / Stop)
17 Throttle lever
18 Safety locking button
19 Rear hand guard
20 Fuel tank cap
21 Adjusting screws for carburetor
22 Fan housing with starting assembly
23 Oil tank cap
24 Chain (Blade)
25 Guide bar
26 Sprocket guard quick tensioner
(TLC)

Makita EA3200S Specifications

General

Weight	4.1 kg
Chain Pitch	3/8"
Power Output	1.35 kW
Bar Length	35 cm
Fuel Tank Capacity	0.4 L
Chain Gauge	0.050"
Oil Tank Capacity	0.28 L
