Put on the guide bar (7). Make sure that the pin (5) of the chain
tensioner engages in the hole in the guide bar.

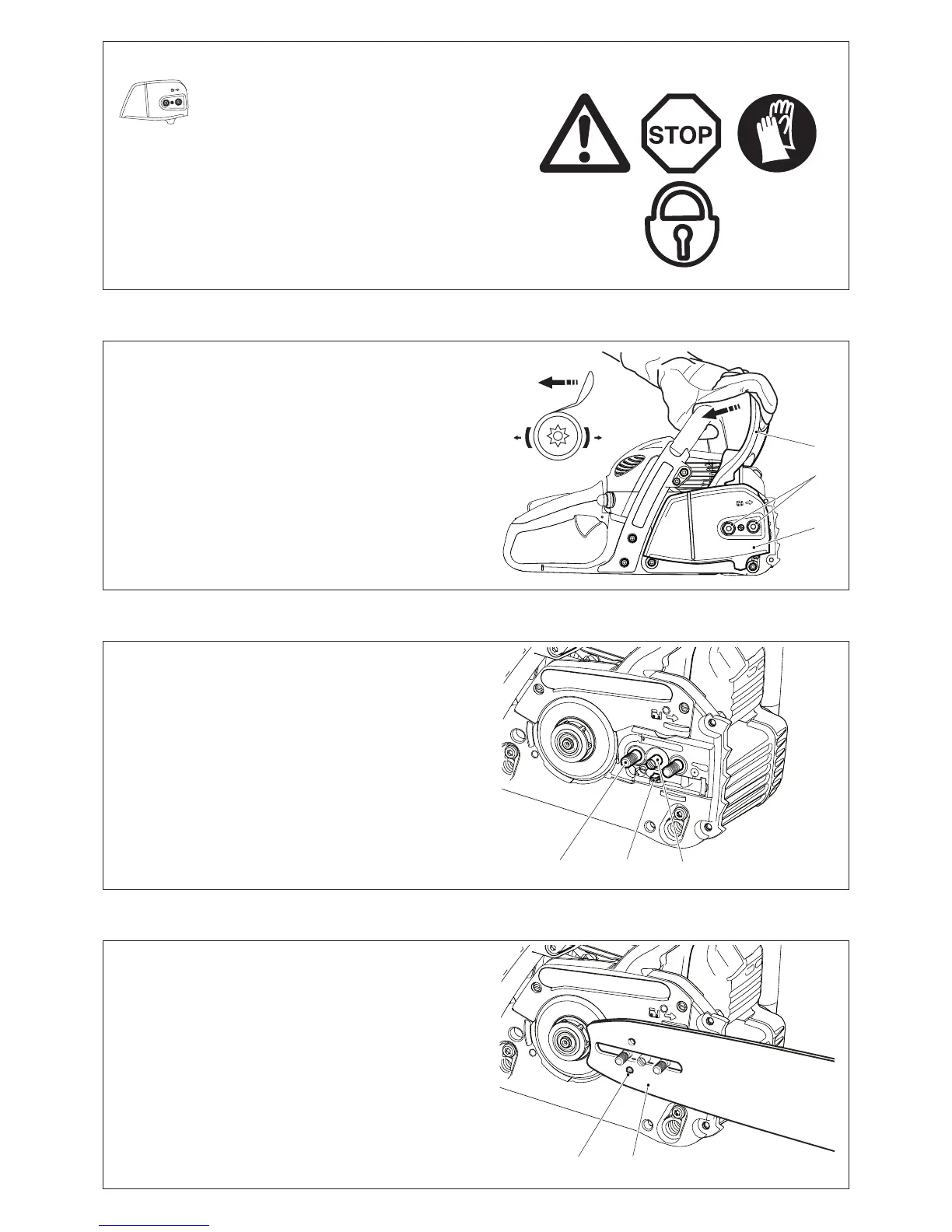

Mounting the guide bar and saw chain
Use the universal wrench delivered with the chain saw for
the following work.
Put the chain saw on a stable surface and carry out the fol‑
lowing steps for mounting the guide bar and saw chain:
Release the chain brake by pulling the hand guard (1) in
direction of arrow.
Unscrew retaining nuts (2).
Pull o the sprocket guard (3).
PUTTING INTO OPERATION
Only for models with fastening nuts
on the sprocket guard
CAUTION:
Before doing any work on the guide bar or chain, al-
ways switch o the engine and pull the plug cap o the
spark plug (see “Replacing the spark plug”). Always wear
protective gloves!
CAUTION:
Start the chain saw only after having assembled it
completely and inspected.
Turn chain tensioning screw (4) to the left (counter‑clockwise)
until the pin (5) of the chain tensioner is underneath the
threaded pin (6).
