Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L

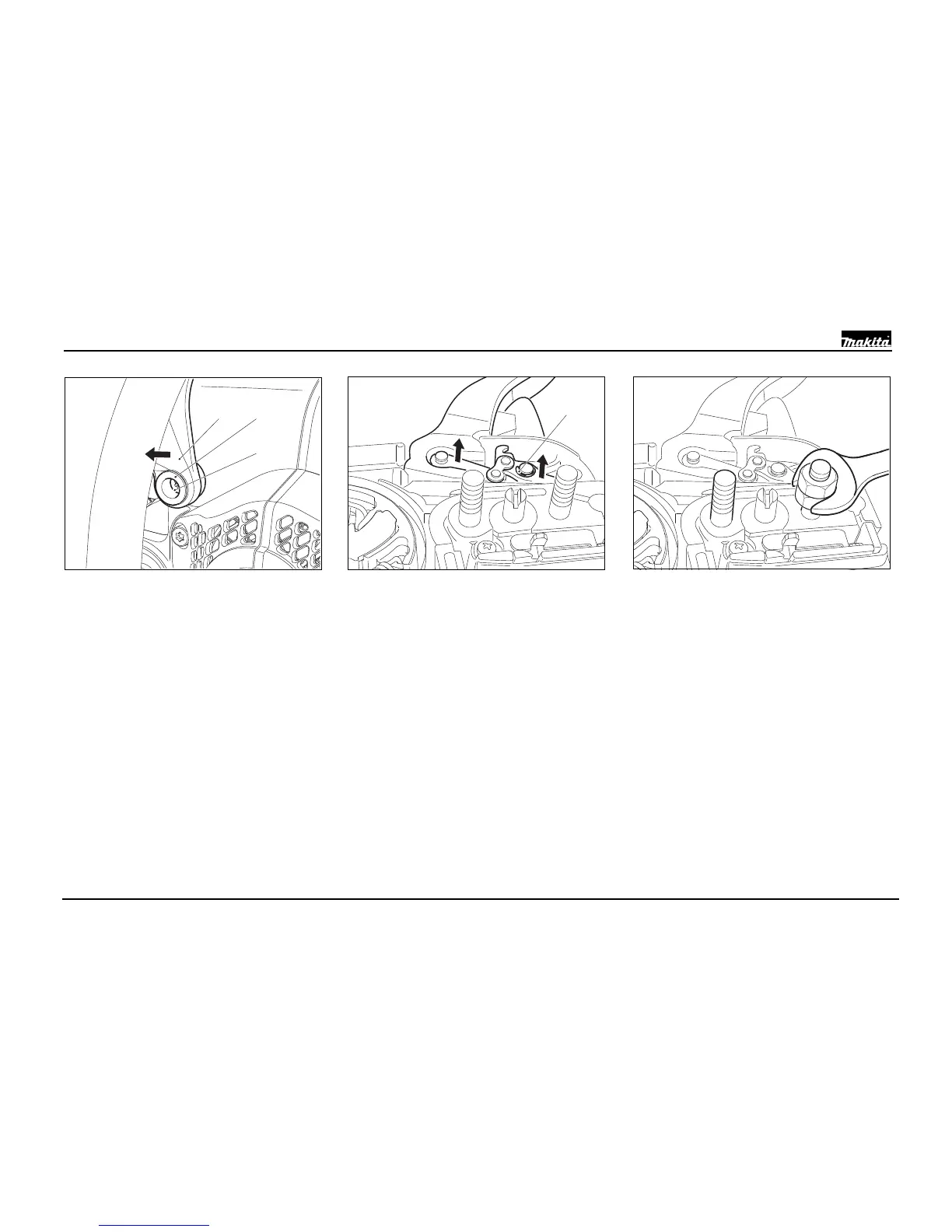

Remove the handguard and
disengagement mechanism
Unscrew bolt 4 and pull out the sleeve 5.
Push handguard arm 6 from its position over
the hood towards the muffler.
Replacing the guide bar bolt
Screw two nuts onto the bar bolt and
counterlock them.
Unscrew the bar bolt.
Assembly: Apply Loctite 243 (980.009.000) to
the guide bar bolts and turn them all the way
in.
4
56
7
03
CHAIN BR
AKE / GUIDE BAR BOLT
Remove the circlip 7.
Pull the disengagement mechanism up in
parallel with the axes.
Pull off the handguard with gentle back-and-
forth motion.
When reassembling always use a new
circlip 7 (927.304.000)!
Assemble the handg
uard and disengagement
mechanism, brake band and brake band
spring in reverse order.
