Reparaturanleitung PS-4600 / PS-5000 8
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L
1
01
SPROCKET GUARD / CHA
IN TENSIONING SYSTEM
Remove the sprocket guard, bar, and chain.
CAUTION: Do not work on the chain brake
unless the spring is detensioned!
Chain tensioner

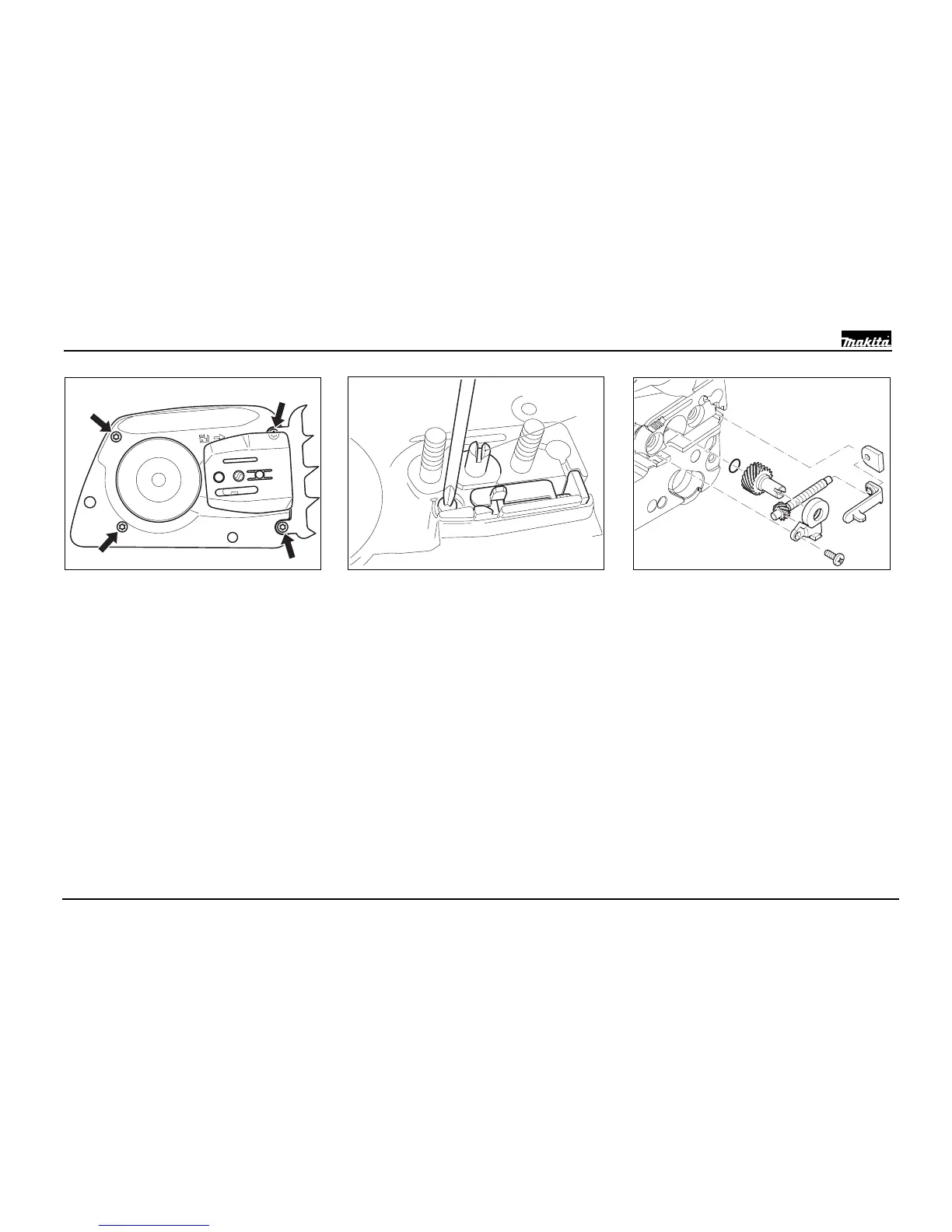

Carefully take the chain guide cover off the
guide bar bolts.
Unscrew 4 screws, and remove the spike bar
and the cover.
Chain tensioner function
An angled worm drive converts the turns of
the adjustment screw 1 to forward or
backward motion of the tensioning pin.
If necessary, turn adjusting screw 1
clockwise,
until the fastening screw is accessible.
Unscrew the fastening screw and pull the
chain tensioner up and out.
Assembly
Grease spindle and worm gear with multi-
purpose grease (944.360.000).
