Reparaturanleitung PS-4600 / PS-5000 11
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L

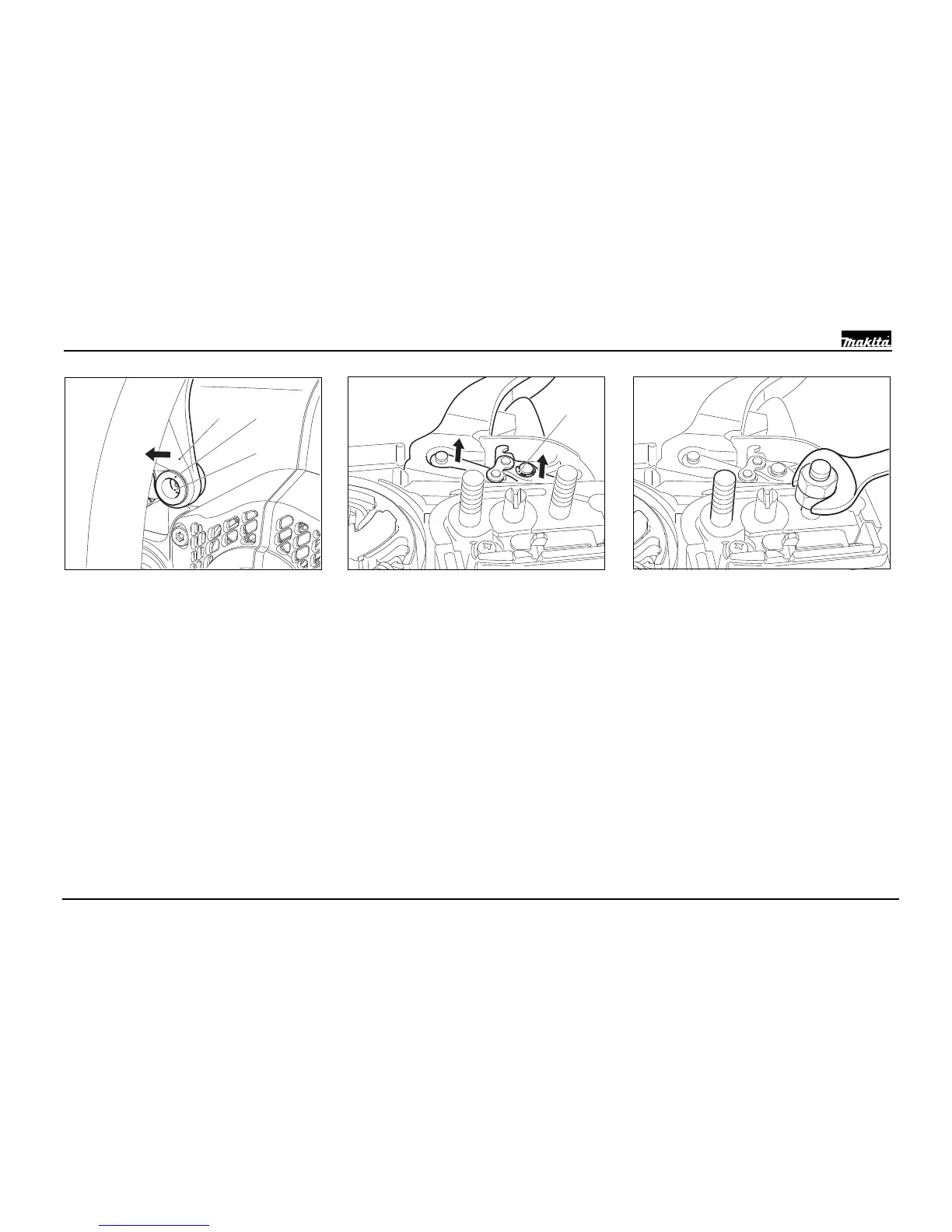

Remove the handguard and
disengagement mechanism
Unscrew bolt 4 and pull out the sleeve 5.
Push handguard arm 6 from its position over
the hood towards the muffler.
Replacing the guide bar bolt
Screw two nuts onto the bar bolt and
counterlock them.
Unscrew the bar bolt.
Assembly: Apply Loctite 243 (980.009.000) to
the guide bar bolts and turn them all the way
in.
4
56
7
03
CHAIN BR
AKE / GUIDE BAR BOLT
Remove the circlip 7.
Pull the disengagement mechanism up in
parallel with the axes.
Pull off the handguard with gentle back-and-
forth motion.
When reassembling always use a new
circlip 7 (927.304.000)!
Assemble the handg
uard and disengagement
mechanism, brake band and brake band
spring in reverse order.

Makita EA4300F Specifications

General

Engine Displacement	42.4 cc
Weight	4.9 kg
Bar Length	40 cm (16")
Fuel Tank Capacity	0.48 L
Oil Tank Capacity	0.28 L
Chain Pitch	3/8 in
Chain Gauge	0.050"
Power Output	2.2 kW
