Makita EA4300F Repair Manual

___
Reparaturanleitung PS-4600 / PS-5000 10
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L
Secure the chain saw from slipping (vise).
Using the disassembly hook (Chap. 00, Pos.
12), disengage the brake band spring 3.
1
2
3
03
CHAIN BR
AKE / GUIDE BAR BOLT

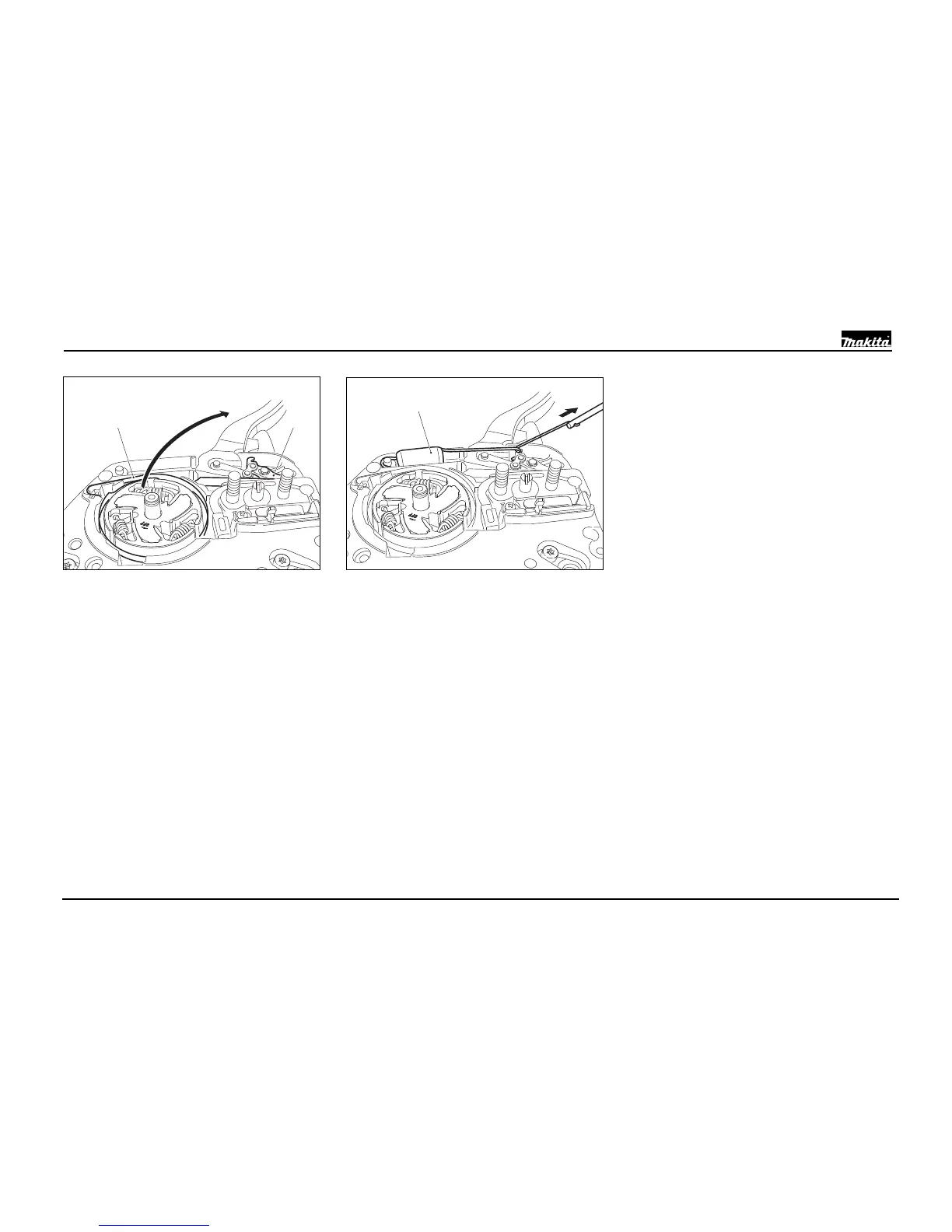

Removing the brake band
CAUTION: Wear protective gloves to
prevent cuts!
Remove the sprocket guard, bar, and chain.
Remove the clutch drum, see Chapter 02.
Push the hand guard forward to engage the
chain brake. This tensions the brake band
spring.
Remove the cover plate, see Chapter 01.
Fold the brake band 1 upward and turn it out
of the disengagement mechanism 2.

Makita EA4300F Specifications

General

Engine Displacement	42.4 cc
Weight	4.9 kg
Bar Length	40 cm (16")
Fuel Tank Capacity	0.48 L
Oil Tank Capacity	0.28 L
Chain Pitch	3/8 in
Chain Gauge	0.050"
Power Output	2.2 kW
